Wedge wire mesh cartridge Product Description Working Principle Product Advantages Technical parameters Product Details Customer Cases

  • Product Description

    Wedge wire cartridge adopts stainless steel wedge wire welded screen, and the filtration precision is 30-800μ Wedge wire welded screen is made of stainless steel wedge wire welded with support bar, mainly filter plate, filter basket, cartridge and other products. Its manufactured products are characterized by high strength, high hardness, wear resistance and corrosion resistance, uniform gap, good permeability, easy cleaning and backwashing, etc.

    INQUIRY

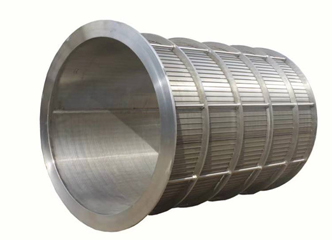

    Wedge wire mesh cartridge lefilter
    Applications Pharmaceutical industry, food industry, electronic industry, petroleum and chemical industry, etc
    Filtration media water suspension, particulate matter, water dirt, bacteria and algae, rust, etc
  • Working Principle

    Due to the full-welded type, it not only ensures the strict continuous integrity of the product, but also makes it form the ideal seam size. Compared with the welding process commonly used in China at present, the full-welded wedge wire-wound screen tube, filter water pipe, water cap, water distributor, resin catcher and screen plate have the characteristics of smooth tube surface, no production angles, no burrs, uniform seam size and no grease leakage.

  • Product Advantages

    • Wedge wire mesh cartridge Advantage

      Large filtration area,High precision, large filtration area, large flux, small equipment diameter, and small footprint

      Precision

      High filtration precision:

      Over 90% retention rate relative to filtration accuracy,Wide range of filtration precision to meet various application requirements,Good dirt retention,Long service life

    • Wedge wire mesh cartridge Advantage

      With internal thread construction,Enhanced pressure resistance

      Flow rate

      Internal thread construction for enhanced pressure resistance:

      Wide chemical compatibility, high flow capacity and low differential pressure,Washable.

    • Wedge wire mesh cartridge Advantage

      Made of stainless steel

      Material

      Material used:

      Material: stainless steel

    • Wedge wire mesh cartridge Advantage

      Sparse outside, dense inside, honeycomb structure

      Structure

      Structure:

      Sparse outside and dense inside, honeycomb structure, Large dirt-holding capacity

  • Technical parameters

    Name: Wedge mesh filter element Central skeleton: stainless steel 304 / 316

    Filtration precision: 25-800μm Filter element outer diameter: 19-914mm

    Filter material: low carbon steel, stainless steel 304/316/316L Features: high strength, high hardness, durability, uniform slit, anti-clogging design

    Can be customized according to different working conditions

    CATALOG VIDEO
  • Product Details

    • Wedge wire mesh cartridg detail Wedge wire mesh cartridg detail Wedge wire mesh cartridg detail Wedge wire mesh cartridg detail Wedge wire mesh cartridg detail
  • Customer Cases

    • Circulating water treatment site of a coal chemical enterprise
      Circulating water treatment site of a coal chemical enterprise in Shanxi

      Use: Cartridge filter elementFlow rate: 20t/h

    • an environmental company use site
      Shandong an environmental company use site

      Use: Circulating water treatmentFlow rate: 20t/h

    • a water treatment company after use
      Henan a water treatment company after use

      Use: Cartridge filter circulating water treatmentFlow rate: 200m3/h
