Reverse osmosis equipment Product Description Working Principle Product Advantages Technical parameters Product Details Customer Cases

  • Product Description

    Reverse osmosis equipment is a high-quality water purification equipment, the raw water through pretreatment, fine filter, softening treatment, etc., and then through the pump pressure, the use of pore size reverse osmosis membrane (RO membrane), reverse osmosis membrane can effectively remove industrial pollutants, heavy metals, viruses, bacteria, organic matter, inorganic matter and radioactive substances in the water, after purification of the water crystal clear, sweet and sweet.

    INQUIRY
    Applications mainly for reverse osmosis treatment.
    Filtration media industrial pollutants, heavy metals, bacteria, viruses, etc.
  • Working Principle

    Reverse osmosis is a new modern technology for the treatment of pure water. The reverse osmosis element is used to improve the purity of the water and to remove impurities and salts contained in the water. Through the reverse osmosis membrane membrane on both sides of the pressure is different, by pressing the raw water through the reverse osmosis membrane, the salt concentration will be low to the concentration of salt in the direction of permeation, can reach the equilibrium state, is the osmotic pressure of the liquid. When the pressure on one side of the brine contains for the other side of the osmotic pressure, it will occur in the opposite direction of the flow, and the reverse osmosis process is produced.

  • Product Advantages

    • Reverse osmosis equipment;
      The desalination rate can reach 99%, the desalination rate of primary reverse osmosis system can be stabilized above 90%, and the desalination rate of secondary reverse osmosis system can be stabilized above 98%.

      Features

      Adopt high-end reverse osmosis membrane, desalination rate of 99% or more, fully automatic electronic control program, online water quality detection control, stable and reliable

    • The internationally advanced reverse osmosis desalination technology is used to prepare deionised water, which is a purely physical process of preparation.

      Structure

      High degree of automation:

      Reverse osmosis equipment can work uninterruptedly for a long time, has a high degree of automation, easy operation, stable water quality and no pollutant discharge.

    • High-end reverse osmosis membrane with high desalination rate, long service life and low running cost; fully automatic pre-treatment system for unmanned operation.

      Savings

      Cost savings:

      Reduces the cost of chemicals consumed for resin regeneration, labour costs and wastewater treatment due to regeneration, and reduces environmental pollution.

    • Advanced water quality testing and control and sophisticated system maintenance solutions to ensure long-term water quality stability.

      Durable

      Product durability:

      The frame piping and fittings are made of stainless steel and corrosion resistant materials to ensure a durable system and low maintenance costs.

  • Technical parameters

    Filtration accuracy (μm): 0.0001 Desalination rate: up to 99.8%

    Inlet water pressure: 0.2-4Mpa Water production: 0.5-50 (m3/H)

    Source water hardness: < 10mmol/L Discharge water hardness: ≤0.03mmol/L

    Process selection: single-stage reverse osmosis, double-stage reverse osmosis, stainless steel reverse osmosis equipment

    Type: Engineering type, Industrial type, Business type

    Can be customized according to different working conditions

    Model Number Water production m³/H Salt content of produced water mg/g Recovery rate % Reference equipment size m
    LF-TW-0.5 0.5 300 TDS influent, 10 TDS produced water 50%-60% 1.4*0.55*1.5
    LF-TW-1 1 300 TDS influent, 10 TDS produced water 50%-60% 1.7*0.65*1.6
    LF-TW-2 2 300 TDS influent, 10 TDS produced water 50%-70% 2.5*0.75*1.4(Host)
    LF-TW-3 3 300 TDS influent, 10 TDS produced water 60%-70% 1.6*0.9*1.6(Host)
    LF-TW-4 4 300 TDS influent, 10 TDS produced water 60%-70% 2.8*0.9*1.4(Host)
    LF-TW-5 5 300 TDS influent, 10 TDS produced water 60%-70% 2.8*0.9*1.6(Host)
    LF-TW-6 6 300 TDS influent, 10 TDS produced water 65%-75% 2.8*0.9*1.6(Host)
    LF-TW-10 10 300 TDS influent, 10 TDS produced water 65%-75% 2.8*0.9*2(Host)
    LF-TW-15 15 300 TDS influent, 10 TDS produced water 65%-75% 4*0.9*2(Host)
    LF-TW-20 20 300 TDS influent, 10 TDS produced water 65%-75% 5*0.9*2(Host)
    LF-TW-25 25 300 TDS influent, 10 TDS produced water 65%-75% 6*0.9*2(Host)
    LF-TW-30 30 300 TDS influent, 10 TDS produced water 65%-75% 7*0.9*2(Host)
    LF-TW-40 40 300 TDS influent, 10 TDS produced water 65%-75% 6*1.4*1.8(Host)
    LF-TW-50 50 300 TDS influent, 10 TDS produced water 65%-75% 6*1.4*2(Host)
    CATALOG VIDEO
  • Product details

    • Pictures

    • Installation site

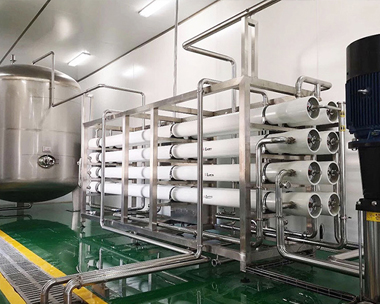

  • Customer Cases

    • Pure water equipment for a beverage plant in Zhengzhou

      Use: Reverse osmosis equipmentTreatment capacity: 15t/h

    • Luoyang Xin'ao installation site operation

      Use: Reverse osmosis equipmentTreatment capacity: 10t/h

    • Shanxi a thermal power group branch

      Use: Reverse osmosis equipmentTreatment capacity: 50t
