  • Product Description

    Developed to replace traditional filter bags and cages, each Pleated Bag Cartridges has a one-piece construction design which allows it to be used in new systems or as a simple retrofit in existing bag house equipment for improved system performance.
    Pleated Bag Filter Cartridges offer more filtration media than traditional felt bags increasing the filtration surface area and thus the filtration capacity. With up to 2-3 times the filter life over traditional 16 oz. polyester felt bags, pleated bag filters provide almost twice as much filtration area in existing equipment due to increased media in the pleat pack design.

    INQUIRY
  • Product Features

    (1) World famous brand filter media: 100% spun bond polyester Smooth surface of filters.

    (2) Highest filter efficiency more than 99.99% Proper number of pleats, wide and rigid pleats Large Length-to-OD ratio.

    (3) Offers excellent dust release Incorporate design according to requirements Various installation options available.

    (4) Airtight gasket accessories available.Applications in many temperatures conditions.

    Filter Media Type
    Water and oil repellent treatment.
    Antistatic treatment.
    PTFE membrane treatment.

  • Specification of Pleated Bag Cartridges

    Model Filter area Length Cartridge (2mLength) Media Weight Air permeability Media type
    LF-P1 2.3m² 1m 135℃ 270g/m² 7m3/m²/min 12mm WC Spun bond polyester
    LF-P2 4.6m² 2m 135℃ 270g/m² 7m³/m²/min 12mm WC Spun bond polyester
    LF-D1 2.3m² 1m 135℃ 270g/m² 7m³/m²/min 12mm WC Antistatic Spun bond polyester
    LF-D2 4.6m² 2m 135℃ 270g/m² 7m³/m²/min 12mm WC Antistatic Spun bond polyester
    LF-F1 2.3m² 1m 135℃ 270g/m² 7m³/m²/min 12mm WC Spun bond polyester + PTFE
    LF-F2 4.6m² 2m 135℃ 270g/m² 7m³/m²/min 12mm WC Spun bond polyester + PTFE
    LF-N1 2.3m² 1m 190℃ 500g/m² 7m³/m²/min 12mm WC
    LF-N2 4.6m² 2m 190℃ 500g/m² 12m³/m²/min 12.7mm WC

    Remarks: Additionally, we offer customized filter solutions and manufacture exclusive cartridge design for OEMs. Our filter cartridges are certified according to EN779.

  • Application

    1.Cement and rock
    Crush/Grind Coal mill Raw mill/Cement mill Clay crushed
    Packaging machine Bentonite crushed Kaolin processing
    Ventilation and dust removal of silo top Material handling / shipping

    2.Aluminum plant
    Fluidized bed dry-cleaning tower The venturi jet dry-cleaning tower
    Self-baking dry-cleaning tower Carbon dust processing
    Broken and ventilation of anode Reaction / non-reaction mine shafts prebaked

    3.Food / Medical
    Food Additives Cereal drying Protein spray drying Grain processing
    Flour Animal vitamins Sugar-coated tablets

    4.Metallurgy
    Electric arc furnace Blast furnace Sulfur removal furnace Casting machine
    Induction furnace Mold cooling line Blasting / Polishing Drum furnace
    Sand production/recycling

    5.Chemical industry
    Fertilizer spray drying Plastic fiber Bleaching powder Cellulose
    Polyethylene resin Polystyrene staple Coke / briquettes processing Packaging line
    Tire / Special rubber PVC Catalyst processing

    6.Paint / Pigment
    Black powder mixing / agitation Packaging line Pneumatic conveying Paint mixing
    Polyethylene resin Polystyrene staple Coke / briquettes processing Packaging line
    Pigment stir Spray drying Micro powder mill

    CATALOG VIDEO
  • Product Display

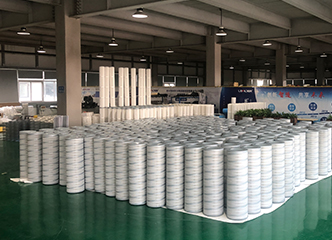

    • Pictures

    • Ship

  • Customer Cases

    • repair dust collector in steel plant project
    • install Pleated Bag Cartridges in Carbon plant
    • dust collector project in Aluminum plant
