  • Product Description

    PP meltblown cartridge is a tubular cartridge made of non-toxic and odorless polypropylene particles, which is heated and melted, spewed, traction and accepted for forming, and is not only used in water purification in large quantities. It also has outstanding chemical compatibility and is suitable for the filtration of strong acid, strong alkali and organic solvents. This kind of cartridge is a kind of fixed pore size deep filtration core with ultra-fine polypropylene fiber filter media, and the filter material meets the relevant requirements of FDA.

    INQUIRY
    RPP meltblown cartridge lefilter
    Applications Pharmaceutical industry, food industry, electronics industry, petroleum and chemical industry, etc.
    Filtration media Pharmaceutical industry, food industry, electronics industry, petroleum and chemical industry, etc.
  • Working Principle

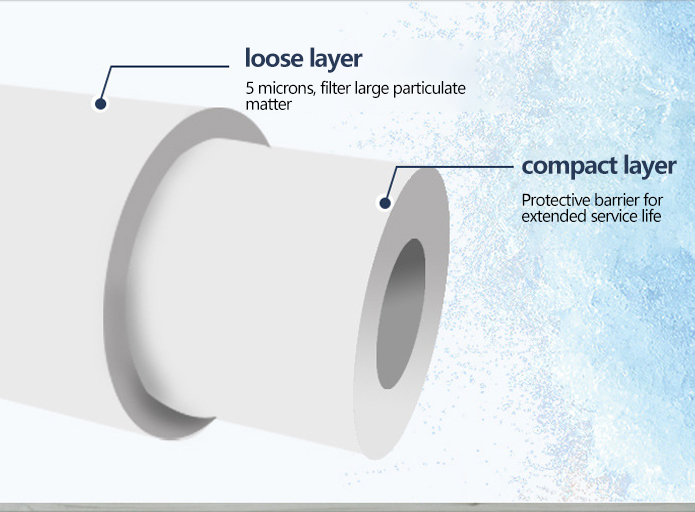

    High dirt retention capacity, a true graded capture of particles by density is achieved throughout the deeper layers of the cartridge, allowing the cartridge to be most fully effective; higher dirt retention capacity means a long service life and low replacement frequency as well as cost savings; low density at the surface of the cartridge and a gradual increase in density from the surface to the centre of the cartridge; no surface blind spots that would reduce the flow rate of the cartridge and increase the replacement frequency There are no surface blind spots that would reduce the flow rate of the cartridge and increase the frequency of replacement.

    Folded cartridge with different interface options

  • Product Advantages

    • RPP meltblown cartridge Advantage

      High filtration precision,Over 90% retention rate relative to filtration accuracy.

      Precision

      High filtration precision:

      Wide range of filtration precision to meet various application requirements,Good dirt retention,Long service life.

    • RPP meltblown cartridge Advantage

      Internal thread construction for enhanced pressure resistance,Wide chemical compatibility, high flow capacity and low differential pressure,Washable and regenerable, economical and Sterilisation by chemical methods, in-line steam.

      Flow rate

      With internal thread construction:

      Enhanced pressure resistance.

    • RPP meltblown cartridge Advantage

      Using polypropylene composite filter membrane

      Material

      Made of food grade material:

      Filter media: polypropylene fibre membrane ,Upper and lower flow support material: polypropylene, Support frame and structural elements: polypropylene, Sealing materials: silicone rubber, nitrile rubber, EPDM rubber, fluoroelastomer

    • RPP meltblown cartridge Advantage

      Different interfaces support customisation

      Customization

      Customisation supported:

      A wide range of interfaces to display, Customisation available on request.

  • Technical parameters

    RPP meltblown cartridge Technical parameters lefilter

    Name: PP folded cartridge Length: 10", 20", 30", 40", 50", 60"

    Applicable P H: 1~13 Max. differential pressure: 4.0Bar

    Operating temperature: 1Bar 80°C, >50°C Stainless steel support ring recommended Sterilisation: 121°C, 30 minutes in-line steam sterilisation

    Addable end cap material: polypropylene interface Type: flat press-in type (other connections can be added)

    Filtration accuracy: 0.1, 0.22, 0.45, 1, 3, 5, 10, 20, 50 (μm) Gaskets/seals: silicone rubber, ethylene propylene rubber, nitrile rubber, fluorine rubber

    Can be customized according to different working conditions

    CATALOG VIDEO
  • Product Details

    • Pictures

    • Different interfaces

    • RPP meltblown cartridge lefilter RPP meltblown cartridge lefilter RPP meltblown cartridge lefilter RPP meltblown cartridge lefilter RPP meltblown cartridge lefilter
    • RPP meltblown cartridge different interfaces RPP meltblown cartridge different interfaces RPP meltblown cartridge different interfaces RPP meltblown cartridge different interfaces RPP meltblown cartridge different interfaces
  • Customer Cases

    • Circulating water treatment site of a coal chemical enterprise
      Circulating water treatment site of a coal chemical enterprise in Shanxi

      Use: Cartridge filter elementFlow rate: 20t/h

    • an environmental company use site
      Shandong an environmental company use site

      Use: Circulating water treatmentFlow rate: 20t/h

    • a water treatment company after use
      Henan a water treatment company after use

      Use: Cartridge filter circulating water treatmentFlow rate: 200m3/h
