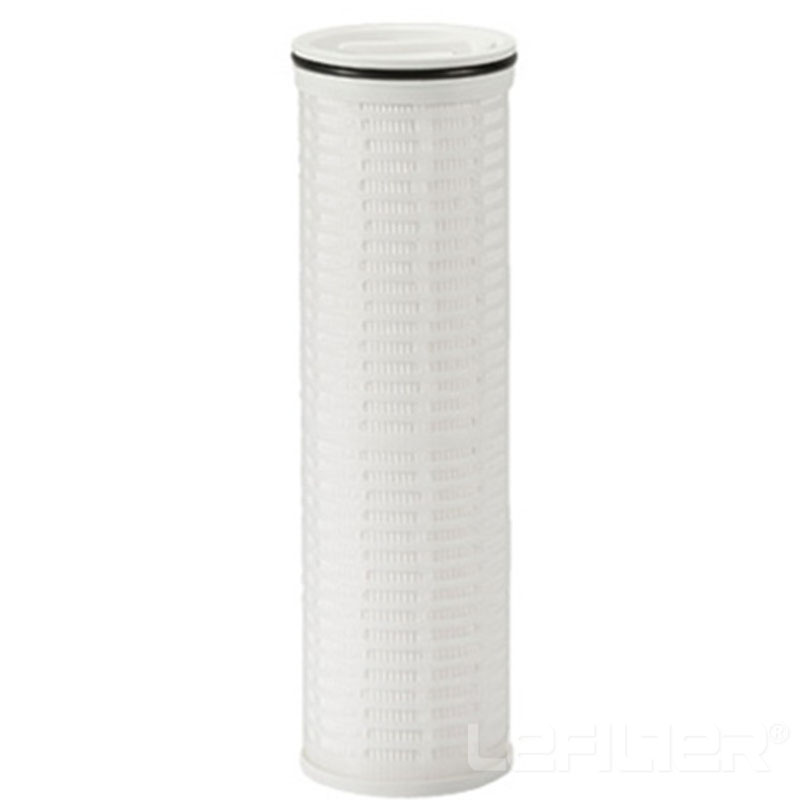

Replacement HFU660CAS010JUW high flow water filter cartridge

Introduction: 3MHF60PP070A01High Flow Rate Water Filter profile: The 3M high-flow filter element is the latest patented product launched by 3M in the United States that integrates advanced techno...

We're here to help:
Easy ways to get the answers you need.

  • Product parameter
  • Inquiry

Product parameter:

High Flow Rate Water Filter profile:

Ultipleat High Flow filter elements are designed for high particle removal efficiency of fine particulates from water applications.
The Ultipleat High Flow filter elements utilize polyethersulfone (PES) media with unique, laid-over pleat geometry. The Ultipleat High Flow element is a large diameter, single open ended, pleated cartridge with an inside to outside flow pattern and a core-free construction.
The filter's unique laid-over pleat geometry, combined with its large diameter means fewer elements are required for a given flow rate when compared to standard diameter cartridges. Filter vessels are correspondingly smaller, resulting in lower capital and installation costs, as well as reduced operating costs.
261
23'

25'

 High Flow Rate Water Filter features:

(1) Large flow rate of single filter element
(2) Low installation cost and low operating cost
(3) The replacement quantity of filter element is small
(4) 1 micron absolute filtration accuracy
(5) High-quality special FDA filter material
(6) The filtering method of in and out, all impurities are intercepted inside the filter element
(7) No metal framework, minimizing the loss caused by discarding
(8) U-shaped sealing groove ensures high filtration efficiency
W11''

 High Flow Rate Water Filte parameter:

Initial pressure difference

0.02MPa

Replacement pressure drop

2.4Bar

Maximum allowable pressure drop

3.4Bar

Maximum operating temperatur

80℃

Filtration direction

From inside to outside, without internal skeleton

Accuracy level

1.5μm, 3μm, 4.5μm, 10μm, 20μm, 30μm, 70μm

Filter material

polypropylene glass fibe/PES membrane

Sealing materials

ethylene propylene rubber, rubber, fluorine rubber, neoprene

Outer diamete

6 inches (152.5mm)

Length

20 inches (508mm), 40 inches (1016mm), 60 inches (1524mm)

041607

041608

Large flow rate water filter Application field

1. Food industry: filtration of alcohol, beverages and drinking water.
2. Electronic industry: pre-filtration of pure water and ultra-pure water.
3. Petroleum and chemical industry: filtration of various organic solvents, acids, lye, oilfield water injection filtration.
4. Ultrafiltration equipment RO security filtration seawater desalination pretreatment
5. Power plant condensate filtration
6. Water filtration in the biopharmaceutical industry
7. Paint, coating, petrochemical industry
8. Microelectronics film fiber resin
Application

Company products comply with test standards:

Filter element-rupture resistance verification according to ISO 2941
Filter element-structural integrity according to ISO 2942
Filter element-material and liquid communication compatibility verification according to ISO 2943
Filter element-end load test method according to ISO3723
Filter element-the determination of the fatigue characteristics of the filter element is in accordance with ISO3724
Filter element-Measurement of differential pressure and flow characteristics according to ISO3968
downLoadImg (1)__

Other high flow filter models:

3M

HF40PP001A01,HF40PP001B01, HF40PP001C01, HF40PP001D01
HF40PP002A01,HF40PP002B01, HF40PP002C01,HF40PP002D01,
HF40PP005A01,HF40PP005B01,HF40PP005C01, HF40PP005D01,
HF40PP010A01,HF40PP010B01,HF40PP010C01, HF40PP010D01,
HF40PP015A01,HF40PP015B01,HF40PP015C01, HF40PP015D01,
HF40PP025A01,HF40PP025B01,HF40PP025C01, HF40PP025D01,
HF40PP040A01,HF40PP040B01,HF40PP040C01, HF40PP040D01,
HF40PP070A01,HF40PP070B01,HF40PP070C01, HF40PP070D01,
HF60PP001A01,HF60PP001B01, HF60PP001C01,HF60PP001D01,
HF60PP002A01,HF60PP002B01,HF60PP002C01, HF60PP002D01,
HF60PP005A01,HF60PP005B01,HF60PP005C01, HF60PP005D01,
HF60PP010A01,HF60PP010B01,HF60PP010C01, HF60PP010D01,
 HF60PP015A01,HF60PP015C01,HF60PP025A01,HF60PP025C01 HF6099025D01,HF60PP040A01,HF60PP040B01HF60PP040C01
HF60PP040D01 ,HF60PP070A01 ,HF60PP070B01 ,HF60PP070C01
 HF60PP070D01  XLDM4.5-40U-HFJ
XLDM1.5-20U-HFJ XLDM3-20U-HFJ XLDM4.5-20U-HFJ
XLDM10-20U-HFJ XLDM20-20U-HFJ XLDM30-20U-HFJ
XLDM70-20U-HFJ XLDM1.5-40U-HFJ XLDM3-40U-HFJ
XLDM4.5-40U-HFJ XLDM10-40U-HFJ XLDM20-40U-HFJ
XLDM30-40U-HFJ XLDM70-40U-HFJ XLDM1.5-60U-HFJ
XLDM3-60U-HFJ XLDM4.5-60U-HFJ XLDM10-60U-HFJ
XLDM20-60U-HFJ XLDM30-60U-HFJ XLDM70-60U-HFJ




HFU620UY020J, HFU640UY020J ,HFU660UY020J ,HFU620UY045J
HFU640UY045J ,HFU660UY045J, HFU620UY100J ,HFU640UY100J
HFU660UY100J ,HFU620UY200J ,HFU640UY200J, HFU660UY200J
HFU620UY400J, HFU640UY400J ,HFU660UY400J ,HFU620UY700J
HFU640UY700J,HFU660UY700J,HFU620CAS010JUW,HFU640CAS010JUW
HFU660CAS010JUW,HFU620UY020H13,HFU640UY045H13,HFU660UY400H13
HFU620GF100H13, HFU640GF200H13, HFU660GF050H13, HFU620UY020J
HFU640UY020J, HFU660UY020J ,HFU620UY045J ,HFU640UY045J
HFU660UY045J, HFU620GF100H13, HFU640GF200H13 ,HFU660GF100H13
HFU620UY200J,HFU640UY200J,HFU660UY200J,HFU620UY400J,HFU640UY400J
HFU660UY400J HFU620UY700J HFU640UY700J HFU660UY700J


PARKER

MFNP010-40N,MFNP030-40N,MFNP045-40N,MFNP060-40N,MFNP100-40N
MFNP010-60N,MFNP030-60N,MFNP045-60N,MFNP060-60N,MFNP100-60N
RSCP010-20EPP RSCP030-20EPP RSCP045-20EPP RSCP100-20EPP RSCP200-20EPP RSCP400-20EPP RSCP900-20EPP RSCP010-40EPP RSCP030-40EPP RSCP045-40EPP RSCP100-40EPP RSCP200-40EPP RSCP400-40EPP RSCP900-40EPP RSCP010-60EPP RSCP030-60EPP RSCP045-60EPP RSCP100-60EPP RSCP200-60EPP RSCP400-60EPP RSCP900-60EPP RSCP010-20SPP RSCP030-20SPP RSCP045-20SPP RSCP100-20SPP RSCP200-20SPP RSCP400-20SPP RSCP900-20SPP RSCP010-40SPP RSCP030-40SPP RSCP045-40SPP RSCP100-40SPP RSCP200-40SPP RSCP400-40SPP RSCP900-40SPP RSCP010-60SPP RSCP030-60SPP RSCP045-60SPP RSCP100-60SPP RSCP200-60SPP RSCP400-60SPP RSCP900-60SPP RSMG010-20EPP RSMG030-20EPP RSMG045-20EPP RSMG100-20EPP RSMG200-20EPP RSMG400-20EPP RSMG010-40EPP RSMG030-40EPP RSMG045-40EPP RSMG100-40EPP RSMG200-40EPP RSMG400-40EPP RSMG010-60EPP RSMG030-60EPP RSMG045-60EPP RSMG100-60EPP RSMG200-60EPP RSMG400-60EPP RSMG010-20SPP RSMG030-20SPP RSMG045-20SPP RSMG100-20SPP RSMG200-20SPP RSMG400-20SPP RSMG010-40SPP RSMG030-40SPP RSMG045-40SPP RSMG100-40SPP RSMG200-40SPP RSMG400-40SPP RSMG010-60SPP RSMG030-60SPP RSMG045-60SPP RSMG100-60SPP RSMG200-60SPP RSMG400-60SPP
