High Flow Water Cartridge Industrial Filtering Equipment

Introduction: 3MHF60PP070A01High Flow Rate Water Filter profile: The 3M high-flow filter element is the latest patented product launched by 3M in the United States that integrates advanced techno...

We're here to help:
Easy ways to get the answers you need.

  • Product parameter
  • Inquiry

Product parameter:

The Introduction of high flow water filter:

Large flow filters have a big diameter of 6 inches/152mm, but no center support frame. Only one end of the filter is open and its flow manner of filtering fluid is from inside to outside. The big diameter of filter elements increases effective filtering areas, and greatly reduces the amounts of filter element and the size of its body case. Due to its large flow and long life, Pall large flow filter can lower investment and human cost in many applications.
Product properties
The structure of gradual aperture
Maximum flow of one filter can be up to 110m³/h during the water filtering.
Filtration system size can be reduced by 50% in maximum.
Filters with the length of 20", 40"and 60" can be offered.
Inside-out directions guarantee all impurities will be left inside the filters.
032702032704

The Technical specifications of high flow water filter:

Filter size:
outer diameter: 6"(152mm)
Length:20"(528mm),40"(1022mm),60"(1538mm)Part material:
Filter material: folding glass fiber, folding deep polypropylene(PP), MBPP
Support/Diversion layer: polypropylene (PP)
End cap: reinforced polypropylene with glass fiber
Seal material: EPR (Ethylene-Propylene Rubber), nitrile rubber
Performance of filter elements:
Filtering accuracy:1μm,4.5μm,6μm,10μm,20μm,40μm,70μm,100μm
Highest operating temperature: folding glass fiber:121ºC
folding deep polypropylene(PP):82ºC
 MBPP:65ºC
Maximum pressure drop:  folding glass fiber:3.4bar,121ºC
folding deep polypropylene(PP):3.4bar,82ºC
MBPP:1.03bar,65ºC
Recommended pressure drop for filter replacement: 2.4Bar ,20ºC
Recommended maximum filtering water flow: 20"filter: 660L/min              40"filter: 1300L/min       60"filter: 1900L/min
032706032705

The Application fields of high flow water filter:

RO cartridge filtration and seawater desalination pretreatment
Filtration of condensed water in power plants
Filtration of bulk drug, solvent, and water in bio-pharmacy industry
Filtration of bottled water, liquid glucose, edible oil, juice, soft drink and milk
Painting, petrochemical industry
Micro-electronics, film, fiber, resin
032703

Our company shot:

040804040806040807


Our certification:

downLoadImg (1)_

FAQ

1.Are you a trading company or manufacturer?
A:Manufacturer with factory.
2.Do you Accept OEM service?
A:Yes! we can manufacture according to your requirement.
3.What´s your Delivery Time?
A:Normally within 1-7 working days after order confirmation.
4.How do you pack products?
A:Normally,plastic bag inside and carton outside .We´ll do according to customers´ requirement.

Contact us:

Nora Hou
Whatsapp/Skype:+86 15537368730
e-mail:sales08@lefilter.com

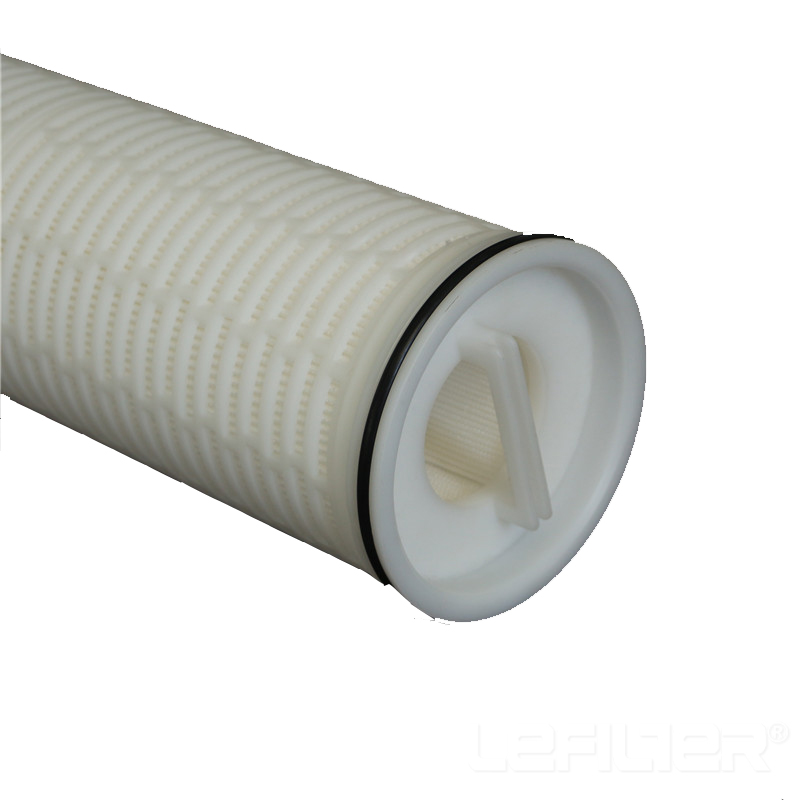

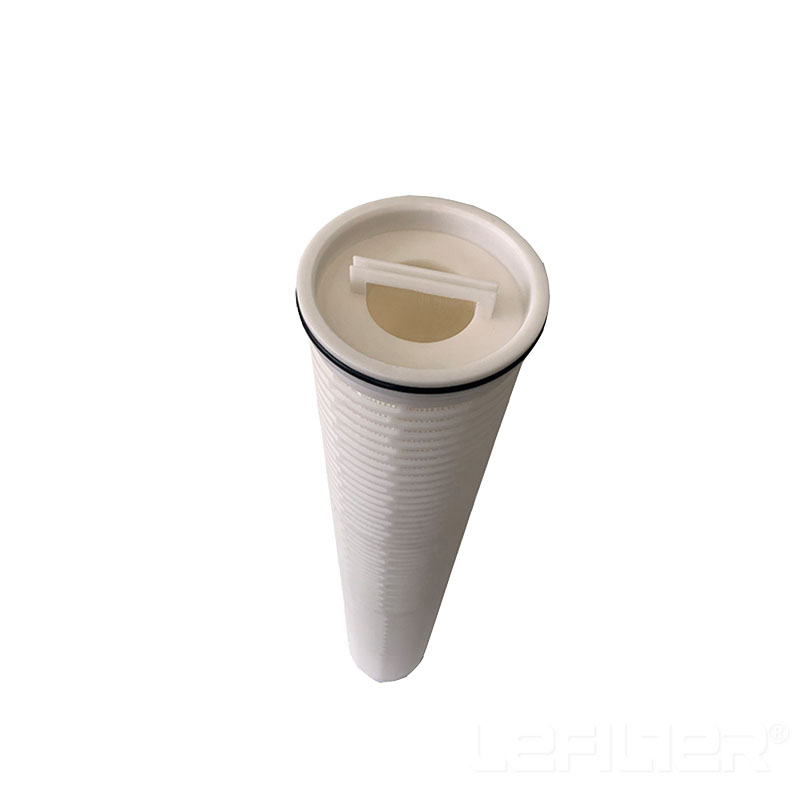

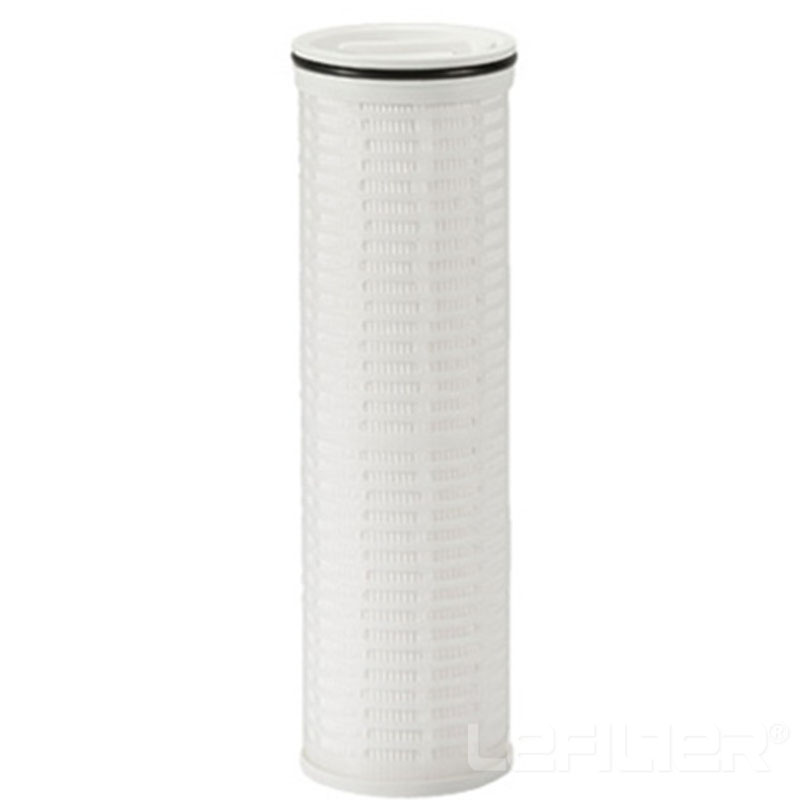

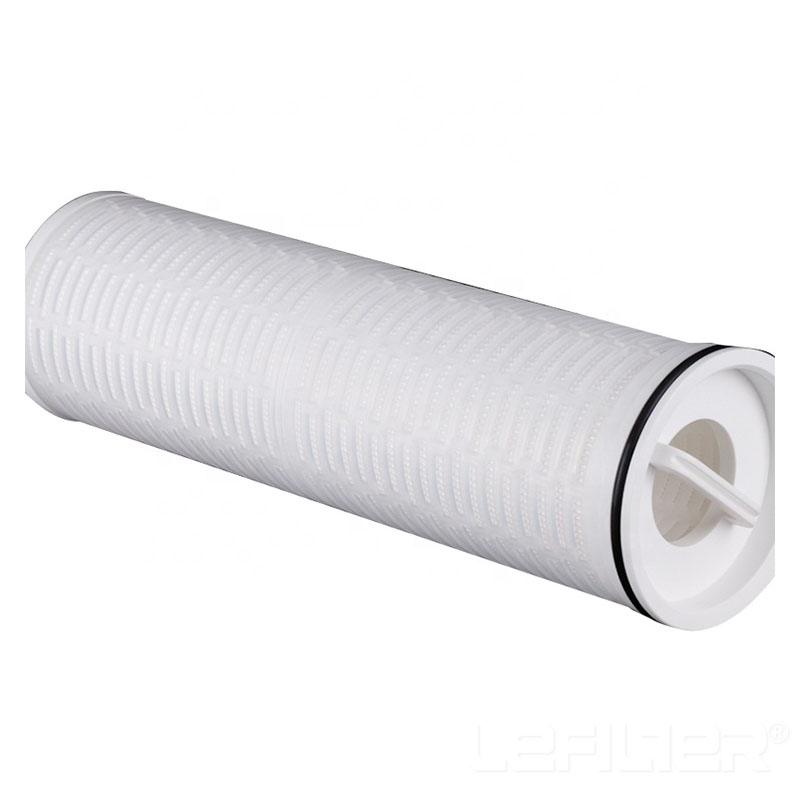

The other picture of high flow water filter:
