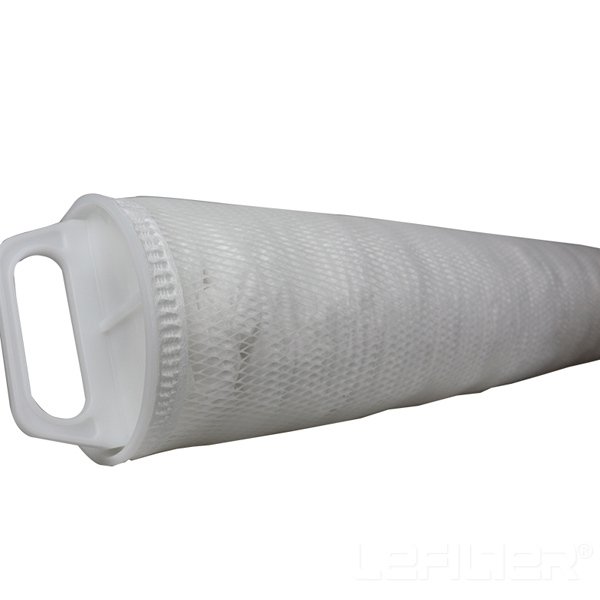

Big Flow water filter cartridge Replacement 3M HF40PP001A01

Introduction: 3MHF60PP070A01High Flow Rate Water Filter profile: The 3M high-flow filter element is the latest patented product launched by 3M in the United States that integrates advanced techno...

We're here to help:
Easy ways to get the answers you need.

  • Product parameter
  • Inquiry

Product parameter:

The Brief introduction of 3M high flow water filter cartridge:

It's designed for a variety of container which can hold 1 to 37 filter elements. It can meet a variety of flow rate demands and the hardware of which has a price competitive advantage. The large diameter of Filter design increases the filter area and can greatly reduce the amount of filter elements and the shell size.

Technical specifications:
The Material of 3M high flow water filter cartridge:

  1. The material filter:glass fiber, polypropylene(PP)

  2. Support/Diversion layer : polypropylene

  3. End cover:glass fiber reinforced polypropylene

  4. Seal ring: EPR, PTFE fluororubbe

  5. 032202

Filter element performance of 3M high flow water filter cartridge:

  1. Filtering accuracy: 1μm,3μm,5μm,10μm,20μm,50μm,70μm

  2. The highest operating temperature: 80ºC

  3. The maximum pressure-drop: folding glass fiber:3.4Bar,20ºC

  4. Recommend pressure-drop of the replacement filter: 2.4Bar ,20ºC

  5. The maximum water-carrying capacity:  1300L/min

032306

Production Feature of 3M high flow water filter cartridge:

  1. High pollutant assimilative capacity can prolong the service life and reduce the cost

  2. Reduce the amount of replacement filter elements and decrease labor costs

  3. The design of seal interface can reduce the risk of bypass flows and increase the filtration efficiency

  4. Easier installment and lower labor costs

  5. Wide chemical applicability can be applied to a variety of fields

W5''

Application fields of 3M high flow water filter cartridge:

  1. RO cartridge filtration, desalination pretreatment

  2. The filtration of Power plant condensate water

  3. Raw material drug, solvents and water filtration in biopharmaceutical industry

  4. Filtration for bottled water, liquid glucose, edible oil, juice, soft drink and milk

  5. Paints, coatings, petrochemical

  6. Microelectronics, films, fibers, resins

Application



Company Certification Show

downLoadImg (1)__

Factory shot:

9bd1d452d51fae7365f3dde8fe

0407

0405

0404

Contact us:

Nora Hou
Whatsapp/Skype:+86 15537368730
e-mail:sales08@lefilter.com

The other picture of high water filter cartridge:


Please fill in your procurement needs and contact information
