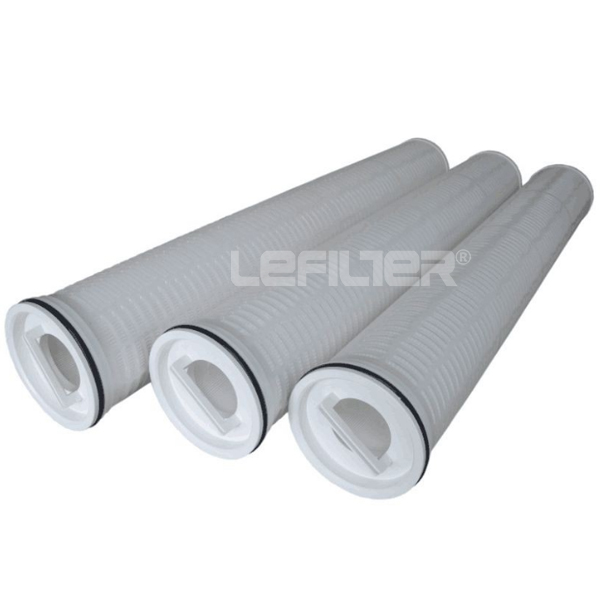

P-all High Flow Water Filter Cartridge HFU660UY200H4
Introduction:High Flow Pleated Filter Cartridge is single open ended which design for the direction from an inside to outside flow pattern. The large filter area ensure the high dirt holding capacity. The low cost save the number of filter cartridge. Lo
We're here to help:
Easy ways to get the answers you need.
Product parameter:
High Flow Pleated Filter Cartridge is single open ended which design for the direction from an inside to outside flow pattern. The large filter area ensure the high dirt holding capacity. The low cost save the number of filter cartridge. Long service life and superior flow rates are the main characteristics. All contaminants can be removed efficiently.
|
Outside Diameter: |
6 inch(152mm) |
|
Length: |
20 inch(528mm),40 inch(1022mm),60 inch(1538mm) |
|
Filter media: |
Pleated glass fiber |
|
Support/Drainage: |
Polypropylene (PP) |
|
End caps : |
Glass fiber reinforced Polypropylene |
|
Seal Material : |
EPDM, NBR |
|
Removal Rating: |
1 µm , 4.5 µm , 6 µm , 10 µm ,20 µm ,40 µm ,70 µm,100µm |
|
Maximum Operating Temperature: |
Pleated glass fiber:121°C |
|
Maximum Differential Pressure: |
Pleated glass fiber:3.4 Bar at 121°C |
|
Recommended Change out Differential Pressure: |
2.4Bar at 20°C |
|
Suggested maximum Flow of water: |
20 inch length:660LPM |
Applications of the industrial high flow pleated filter cartridge:
• Prefiltration of RO,Pretreatment of sea water desalination
• Bottled water, high Fructose,edible oil,soft drinks
• API, solvents,and water filtration in BioPharm market
• Paints and coatings,Petrochemical,Refineries
• Microelectronics.
High Flow Water Filter Cartridge Part Nos.
|
HFU620UY200H4 |
HFU640UY200H4 |
HFU660UY200H4 |
HFU640GF020H |
HFU640GF100H1 |
HFU640GFK100H13 |
|
HFU620UY200H4W |
HFU640UY200H4W |
HFU660UY200H4W |
HFU640GF020H1 |
HFU640GF100H13 |
HFU640GFK100H13W |
|
HFU620UY200HW |
HFU640UY200HW |
HFU660UY200HW |
HFU640GF020H13 |
HFU640GF100H13W |
HFU640GFK100H4 |
|
HFU620UY200J |
HFU640UY200J |
HFU660UY200J |
HFU640GF020H13W |
HFU640GF100H4 |
HFU640GFK100H4W |
|
HFU620UY400H |
HFU640UY400H |
HFU660UY400H |
HFU640GF020H4 |
HFU640GF100H4W |
HFU640GFK100HW |
|
HFU620UY400H1 |
HFU640UY400H1 |
HFU660UY400H1 |
HFU640GF020H4W |
HFU640GF100HW |
HFU640GFK100J |
|
HFU620UY400H13 |
HFU640UY400H13 |
HFU660UY400H13 |
HFU640GF020HW |
HFU640GF100J |
HFU640GFK100JW |
|
HFU620UY400H13W |
HFU640UY400H13W |
HFU660UY400H13W |
HFU640GF020J |
HFU640GF100JW |
HFU640J060H1 |
|
HFU620UY400H4 |
HFU640UY400H4 |
HFU660UY400H4 |
HFU640GF020JW |
HFU640GF200H |
HFU640J060H13 |
|
HFU620UY400H4W |
HFU640UY400H4W |
HFU660UY400H4W |
HFU640GF060H |
HFU640GF200H1 |
HFU640J060H13W |
|
HFU620UY400HW |
HFU640UY400HW |
HFU660UY400HW |
HFU640GF060H1 |
HFU640GF200H13 |
HFU640J060H4 |
|
HFU620UY400J |
HFU640UY400J |
HFU660UY400J |
HFU640GF060H13 |
HFU640GF200H13W |
HFU640J060H4W |
|
HFU620UY700H1 |
HFU640UY700H1 |
HFU660UY700H1 |
HFU640GF060H13W |
HFU640GF200H4 |
HFU640J060HW |
|
HFU620UY700H13 |
HFU640UY700H13 |
HFU660UY700H13 |
HFU640GF060H4 |
HFU640GF200H4W |
HFU640J060J |
|
HFU620UY700H13W |
HFU640UY700H13W |
HFU660UY700H13W |
HFU640GF060H4W |
HFU640GF200HW |
HFU640J100H1 |
|
HFU620UY700H4 |
HFU640UY700H4 |
HFU660UY700H4 |
HFU640GF060HW |
HFU640GF200J |
HFU640J100H13 |
|
HFU620UY700H4W |
HFU640UY700H4W |
HFU660UY700H4W |
HFU640GF060J |
HFU640GF200JW |
HFU640J100H13W |
|
HFU620UY700HW |
HFU640UY700HW |
HFU660UY700HW |
HFU640GF060JW |
HFU640GFK100H |
HFU640J100H4 |
|
HFU620UY700J |
HFU640UY700J |
HFU660UY700J |
HFU640GF100H |
HFU640GFK100H1 |
HFU640J100H4W |
|
|
HFU640J100J |
HFU640J200H1 |
HFU640J200H13 |
HFU640J200H13W |
HFU640J100HW |
|
PFTM1-20U-HFH13 |
PFTM1-20U-HFH13U |
PFTM1-20U-HFH |
PFTM1-20U-HFHU |
PFTM1-20U-HFJ |
PFTM1-20U-HFJU |
|
PFTM1-40U-HFH13 |
PFTM1-40U-HFH13U |
PFTM1-40U-HFH |
PFTM1-40U-HFHU |
PFTM1-40U-HFJ |
PFTM1-40U-HFJU |
|
PFTM1-60U-HFH13 |
PFTM1-60U-HFH13U |
PFTM1-60U-HFH |
PFTM1-60U-HFHU |
PFTM1-60U-HFJ |
PFTM1-60U-HFJU |
|
PFTM3-20U-HFH13 |
PFTM3-20U-HFH13U |
PFTM3-20U-HFH |
PFTM3-20U-HFHU |
PFTM3-20U-HFJ |
PFTM3-20U-HFJU |
|
PFTM3-40U-HFH13 |
PFTM3-40U-HFH13U |
PFTM3-40U-HFH |
PFTM3-40U-HFHU |
PFTM3-40U-HFJ |
PFTM3-40U-HFJU |
|
PFTM3-60U-HFH13 |
PFTM3-60U-HFH13U |
PFTM3-60U-HFH |
PFTM3-60U-HFHU |
PFTM3-60U-HFJ |
PFTM3-60U-HFJU |
|
PFTM5-20U-HFH13 |
PFTM5-20U-HFH13U |
PFTM5-20U-HFH |
PFTM5-20U-HFHU |
PFTM5-20U-HFJ |
PFTM5-20U-HFJU |
|
PFTM5-40U-HFH13 |
PFTM5-40U-HFH13U |
PFTM5-40U-HFH |
PFTM5-40U-HFHU |
PFTM5-40U-HFJ |
PFTM5-40U-HFJU |
|
PFTM5-60U-HFH13 |
PFTM5-60U-HFH13U |
PFTM5-60U-HFH |
PFTM5-60U-HFHU |
PFTM5-60U-HFJ |
PFTM5-60U-HFJU |
|
PFTM10-20U-HFH13 |
PFTM10-20U-HFH13U |
PFTM10-20U-HFH |
PFTM10-20U-HFHU |
PFTM10-20U-HFJ |
PFTM10-20U-HFJU |
|
PFTM10-40U-HFH13 |
PFTM10-40U-HFH13U |
PFTM10-40U-HFH |
PFTM10-40U-HFHU |
PFTM10-40U-HFJ |
PFTM10-40U-HFJU |
|
PFTM10-60U-HFH13 |
PFTM10-60U-HFH13U |
PFTM10-60U-HFH |
PFTM10-60U-HFHU |
PFTM10-60U-HFJ |
PFTM10-60U-HFJU |
|
PFTM20-20U-HFH13 |
PFTM20-20U-HFH13U |
PFTM20-20U-HFH |
PFTM20-20U-HFHU |
PFTM20-20U-HFJ |
PFTM20-20U-HFJU |
|
PFTM20-40U-HFH13 |
PFTM20-40U-HFH13U |
PFTM20-40U-HFH |
PFTM20-40U-HFHU |
PFTM20-40U-HFJ |
PFTM20-40U-HFJU |
|
PFTM20-60U-HFH13 |
PFTM20-60U-HFH13U |
PFTM20-60U-HFH |
PFTM20-60U-HFHU |
PFTM20-60U-HFJ |
PFTM20-60U-HFJU |
|
PFTM40-20U-HFH13 |
PFTM40-20U-HFH13U |
PFTM40-20U-HFH |
PFTM40-20U-HFHU |
PFTM40-20U-HFJ |
PFTM40-20U-HFJU |
|
PFTM40-40U-HFH13 |
PFTM40-40U-HFH13U |
PFTM40-40U-HFH |
PFTM40-40U-HFHU |
PFTM40-40U-HFJ |
PFTM40-40U-HFJU |
|
PFTM40-60U-HFH13 |
PFTM40-60U-HFH13U |
PFTM40-60U-HFH |
PFTM40-60U-HFHU |
PFTM40-60U-HFJ |
PFTM40-60U-HFJU |
|
PFTM70-20U-HFH13 |
PFTM70-20U-HFH13U |
PFTM70-20U-HFH |
PFTM70-20U-HFHU |
PFTM70-20U-HFJ |
PFTM70-20U-HFJU |
|
PFTM70-40U-HFH13 |
PFTM70-40U-HFH13U |
PFTM70-40U-HFH |
PFTM70-40U-HFHU |
PFTM70-40U-HFJ |
PFTM70-40U-HFJU |
|
PFTM70-60U-HFH13 |
PFTM70-60U-HFH13U |
PFTM70-60U-HFH |
PFTM70-60U-HFHU |
PFTM70-60U-HFJ |
PFTM70-60U-HFJU |
|
PFTM90-20U-HFH13 |
PFTM90-20U-HFH13U |
PFTM90-20U-HFH |
PFTM90-20U-HFHU |
PFTM90-20U-HFJ |
PFTM90-20U-HFJU |
|
PFTM90-40U-HFH13 |
PFTM90-40U-HFH13U |
PFTM90-40U-HFH |
PFTM90-40U-HFHU |
PFTM90-40U-HFJ |
PFTM90-40U-HFJU |
|
PFTM90-60U-HFH13 |
PFTM90-60U-HFH13U |
PFTM90-60U-HFH |
PFTM90-60U-HFHU |
PFTM90-60U-HFJ |
PFTM90-60U-HFJU |
|
PFTM150-20U-HFH13 |
PFTM150-20U-HFH13U |
PFTM150-20U-HFH |
PFTM150-20U-HFHU |
PFTM150-20U-HFJ |
PFTM150-20U-HFJU |
|
PFTM150-40U-HFH13 |
PFTM150-40U-HFH13U |
PFTM150-40U-HFH |
PFTM150-40U-HFHU |
PFTM150-40U-HFJ |
PFTM150-40U-HFJU |
|
PFTM150-60U-HFH13 |
PFTM150-60U-HFH13U |
PFTM150-60U-HFH |
PFTM150-60U-HFHU |
PFTM150-60U-HFJ |
PFTM150-60U-HFJU |
