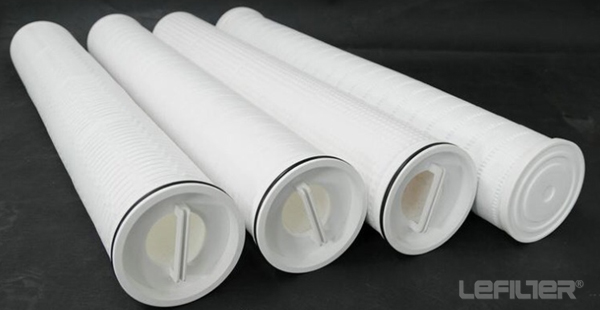

P-all High Flow Water Filter Cartridge HFU640UY400J

Introduction:High Flow Pleated Filter Cartridge is single open ended which design for the direction from an inside to outside flow pattern. The large filter area ensure the high dirt holding capacity. The low cost save the number of filter cartridge. Lo

We're here to help:
Easy ways to get the answers you need.

  • Product parameter
  • Inquiry

Product parameter:

High Flow Pleated Filter Cartridge is single open ended which design for the direction from an inside to outside flow pattern. The large filter area ensure the high dirt holding capacity. The low cost save the number of filter cartridge. Long service life and superior flow rates are the main characteristics. All contaminants can be removed efficiently.


 P-all FILTER HFU640UY400J


Outside Diameter:

6 inch(152mm)

Length:

20 inch(528mm),40 inch(1022mm),60 inch(1538mm)

Filter media:

Pleated glass fiber
Pleated depth Polypropylene (PP)
PP Melt blown

Support/Drainage:

Polypropylene (PP)

End caps :

Glass fiber reinforced Polypropylene

Seal Material :

EPDM, NBR

Removal Rating:

1 µm , 4.5 µm , 6 µm , 10 µm ,20 µm ,40 µm ,70 µm,100µm

Maximum Operating Temperature:

Pleated glass fiber:121°C
Pleated PP: 82°C
Melt Blown PP: 65°C

Maximum Differential Pressure:

Pleated glass fiber:3.4 Bar at 121°C
Pleated PP: 3.4Bar at 82°C
Melt Blown:1.03Bar at 65°C

Recommended Change out Differential Pressure:

2.4Bar at 20°C

Suggested maximum Flow of water:

20 inch length:660LPM
40 inch length:1,300LPM
60 inch length:1,900LPM



Applications of the industrial high flow pleated filter cartridge:


• Prefiltration of RO,Pretreatment of sea water desalination
• Bottled water, high Fructose,edible oil,soft drinks
• API, solvents,and water filtration in BioPharm market
• Paints and coatings,Petrochemical,Refineries
• Microelectronics.


High Flow Water Filter Cartridge Part Nos.



HFU620UY200H4

HFU640UY200H4

HFU660UY200H4

HFU640GF020H

HFU640GF100H1

HFU640GFK100H13

HFU620UY200H4W

HFU640UY200H4W

HFU660UY200H4W

HFU640GF020H1

HFU640GF100H13

HFU640GFK100H13W

HFU620UY200HW

HFU640UY200HW

HFU660UY200HW

HFU640GF020H13

HFU640GF100H13W

HFU640GFK100H4

HFU620UY200J

HFU640UY200J

HFU660UY200J

HFU640GF020H13W

HFU640GF100H4

HFU640GFK100H4W

HFU620UY400H

HFU640UY400H

HFU660UY400H

HFU640GF020H4

HFU640GF100H4W

HFU640GFK100HW

HFU620UY400H1

HFU640UY400H1

HFU660UY400H1

HFU640GF020H4W

HFU640GF100HW

HFU640GFK100J

HFU620UY400H13

HFU640UY400H13

HFU660UY400H13

HFU640GF020HW

HFU640GF100J

HFU640GFK100JW

HFU620UY400H13W

HFU640UY400H13W

HFU660UY400H13W

HFU640GF020J

HFU640GF100JW

HFU640J060H1

HFU620UY400H4

HFU640UY400H4

HFU660UY400H4

HFU640GF020JW

HFU640GF200H

HFU640J060H13

HFU620UY400H4W

HFU640UY400H4W

HFU660UY400H4W

HFU640GF060H

HFU640GF200H1

HFU640J060H13W

HFU620UY400HW

HFU640UY400HW

HFU660UY400HW

HFU640GF060H1

HFU640GF200H13

HFU640J060H4

HFU620UY400J

HFU640UY400J

HFU660UY400J

HFU640GF060H13

HFU640GF200H13W

HFU640J060H4W

HFU620UY700H1

HFU640UY700H1

HFU660UY700H1

HFU640GF060H13W

HFU640GF200H4

HFU640J060HW

HFU620UY700H13

HFU640UY700H13

HFU660UY700H13

HFU640GF060H4

HFU640GF200H4W

HFU640J060J

HFU620UY700H13W

HFU640UY700H13W

HFU660UY700H13W

HFU640GF060H4W

HFU640GF200HW

HFU640J100H1

HFU620UY700H4

HFU640UY700H4

HFU660UY700H4

HFU640GF060HW

HFU640GF200J

HFU640J100H13

HFU620UY700H4W

HFU640UY700H4W

HFU660UY700H4W

HFU640GF060J

HFU640GF200JW

HFU640J100H13W

HFU620UY700HW

HFU640UY700HW

HFU660UY700HW

HFU640GF060JW

HFU640GFK100H

HFU640J100H4

HFU620UY700J

HFU640UY700J

HFU660UY700J

HFU640GF100H

HFU640GFK100H1

HFU640J100H4W



HFU640J100J

HFU640J200H1

HFU640J200H13

HFU640J200H13W

HFU640J100HW



PFTM1-20U-HFH13

PFTM1-20U-HFH13U

PFTM1-20U-HFH

PFTM1-20U-HFHU

PFTM1-20U-HFJ

PFTM1-20U-HFJU

PFTM1-40U-HFH13

PFTM1-40U-HFH13U

PFTM1-40U-HFH

PFTM1-40U-HFHU

PFTM1-40U-HFJ

PFTM1-40U-HFJU

PFTM1-60U-HFH13

PFTM1-60U-HFH13U

PFTM1-60U-HFH

PFTM1-60U-HFHU

PFTM1-60U-HFJ

PFTM1-60U-HFJU

PFTM3-20U-HFH13

PFTM3-20U-HFH13U

PFTM3-20U-HFH

PFTM3-20U-HFHU

PFTM3-20U-HFJ

PFTM3-20U-HFJU

PFTM3-40U-HFH13

PFTM3-40U-HFH13U

PFTM3-40U-HFH

PFTM3-40U-HFHU

PFTM3-40U-HFJ

PFTM3-40U-HFJU

PFTM3-60U-HFH13

PFTM3-60U-HFH13U

PFTM3-60U-HFH

PFTM3-60U-HFHU

PFTM3-60U-HFJ

PFTM3-60U-HFJU

PFTM5-20U-HFH13

PFTM5-20U-HFH13U

PFTM5-20U-HFH

PFTM5-20U-HFHU

PFTM5-20U-HFJ

PFTM5-20U-HFJU

PFTM5-40U-HFH13

PFTM5-40U-HFH13U

PFTM5-40U-HFH

PFTM5-40U-HFHU

PFTM5-40U-HFJ

PFTM5-40U-HFJU

PFTM5-60U-HFH13

PFTM5-60U-HFH13U

PFTM5-60U-HFH

PFTM5-60U-HFHU

PFTM5-60U-HFJ

PFTM5-60U-HFJU

PFTM10-20U-HFH13

PFTM10-20U-HFH13U

PFTM10-20U-HFH

PFTM10-20U-HFHU

PFTM10-20U-HFJ

PFTM10-20U-HFJU

PFTM10-40U-HFH13

PFTM10-40U-HFH13U

PFTM10-40U-HFH

PFTM10-40U-HFHU

PFTM10-40U-HFJ

PFTM10-40U-HFJU

PFTM10-60U-HFH13

PFTM10-60U-HFH13U

PFTM10-60U-HFH

PFTM10-60U-HFHU

PFTM10-60U-HFJ

PFTM10-60U-HFJU

PFTM20-20U-HFH13

PFTM20-20U-HFH13U

PFTM20-20U-HFH

PFTM20-20U-HFHU

PFTM20-20U-HFJ

PFTM20-20U-HFJU

PFTM20-40U-HFH13

PFTM20-40U-HFH13U

PFTM20-40U-HFH

PFTM20-40U-HFHU

PFTM20-40U-HFJ

PFTM20-40U-HFJU

PFTM20-60U-HFH13

PFTM20-60U-HFH13U

PFTM20-60U-HFH

PFTM20-60U-HFHU

PFTM20-60U-HFJ

PFTM20-60U-HFJU

PFTM40-20U-HFH13

PFTM40-20U-HFH13U

PFTM40-20U-HFH

PFTM40-20U-HFHU

PFTM40-20U-HFJ

PFTM40-20U-HFJU

PFTM40-40U-HFH13

PFTM40-40U-HFH13U

PFTM40-40U-HFH

PFTM40-40U-HFHU

PFTM40-40U-HFJ

PFTM40-40U-HFJU

PFTM40-60U-HFH13

PFTM40-60U-HFH13U

PFTM40-60U-HFH

PFTM40-60U-HFHU

PFTM40-60U-HFJ

PFTM40-60U-HFJU

PFTM70-20U-HFH13

PFTM70-20U-HFH13U

PFTM70-20U-HFH

PFTM70-20U-HFHU

PFTM70-20U-HFJ

PFTM70-20U-HFJU

PFTM70-40U-HFH13

PFTM70-40U-HFH13U

PFTM70-40U-HFH

PFTM70-40U-HFHU

PFTM70-40U-HFJ

PFTM70-40U-HFJU

PFTM70-60U-HFH13

PFTM70-60U-HFH13U

PFTM70-60U-HFH

PFTM70-60U-HFHU

PFTM70-60U-HFJ

PFTM70-60U-HFJU

PFTM90-20U-HFH13

PFTM90-20U-HFH13U

PFTM90-20U-HFH

PFTM90-20U-HFHU

PFTM90-20U-HFJ

PFTM90-20U-HFJU

PFTM90-40U-HFH13

PFTM90-40U-HFH13U

PFTM90-40U-HFH

PFTM90-40U-HFHU

PFTM90-40U-HFJ

PFTM90-40U-HFJU

PFTM90-60U-HFH13

PFTM90-60U-HFH13U

PFTM90-60U-HFH

PFTM90-60U-HFHU

PFTM90-60U-HFJ

PFTM90-60U-HFJU

PFTM150-20U-HFH13

PFTM150-20U-HFH13U

PFTM150-20U-HFH

PFTM150-20U-HFHU

PFTM150-20U-HFJ

PFTM150-20U-HFJU

PFTM150-40U-HFH13

PFTM150-40U-HFH13U

PFTM150-40U-HFH

PFTM150-40U-HFHU

PFTM150-40U-HFJ

PFTM150-40U-HFJU

PFTM150-60U-HFH13

PFTM150-60U-HFH13U

PFTM150-60U-HFH

PFTM150-60U-HFHU

PFTM150-60U-HFJ

PFTM150-60U-HFJU
