P-all XLDM1.5-40U-HFJ Large flow rate water filter
Introduction:The Product Features ofP-all XLDM1.5-40U-HFJ High Flow FilterWater Filtration: 1.The filtration direction from inside to outside ensures that all impurities are trapped inside the filter element; 2.Graduated aperture structure high pollutio
We're here to help:
Easy ways to get the answers you need.
Product parameter:
The Product Features of P-all XLDM1.5-40U-HFJ High Flow Filter Water Filtration:
1.The filtration direction from inside to outside ensures that all impurities are trapped inside the filter element;
2.Graduated aperture structure, high pollution holding capacity, reducing labor and operating costs;
3.A smaller size filter housing can be used, reducing investment costs and saving floor space;
4.Replacement is faster, easier and safer
The technical specifications of P-all XLDM1.5-40U-HFJ high flow water filter:
Filter element size: Outer diameter: 6" (152mm)
Length: 20"(535㎜), 40"(1024㎜), 60"(1524㎜)
The part material of P-all XLDM1.5-40U-HFJ high flow rate water filter:
1. Filter material: folded glass fiber, folded deep polypropylene (PP), melt blown polypropylene;
2. Support / diversion layer: polypropylene;
3. End cap: glass fiber reinforced polypropylene;
4. Sealing ring material: ethylene propylene rubber, rubber.
5. Filtration accuracy: 1μm, 3μm, 5μm, 10μm, 20μm, 50μm, 75μm, 100μm;
6. Operating temperature: folded glass fiber: 121°C; folded polypropylene: 82°C; melt blown polypropylene: 65°C
7. Pressure drop: 3.4Bar
8. Recommended pressure drop for filter element replacement: 2.4Bar
9. Recommended filtering flow: 20"450LPM; 40"800LPM; 60"1150LPM.
The application field of P-all high flow rate water filter:
1.Large-scale reverse osmosis pretreatment filtration;
2.Electronics industry high-purity water pre-filtration;
3.Petrochemical industry amine liquid filtration, oilfield reinjection water filtration;
4.Power, coal chemical security filtration, seawater desalination pretreatment.
Other high flow filter models:
3M |
HF40PP001A01,HF40PP001B01, HF40PP001C01, HF40PP001D01 |
|
P-all |
HFU620UY020J, HFU640UY020J ,HFU660UY020J ,HFU620UY045J |
|
PARKER |
MFNP010-40N,MFNP030-40N,MFNP045-40N，MFNP060-40N，MFNP100-40N |

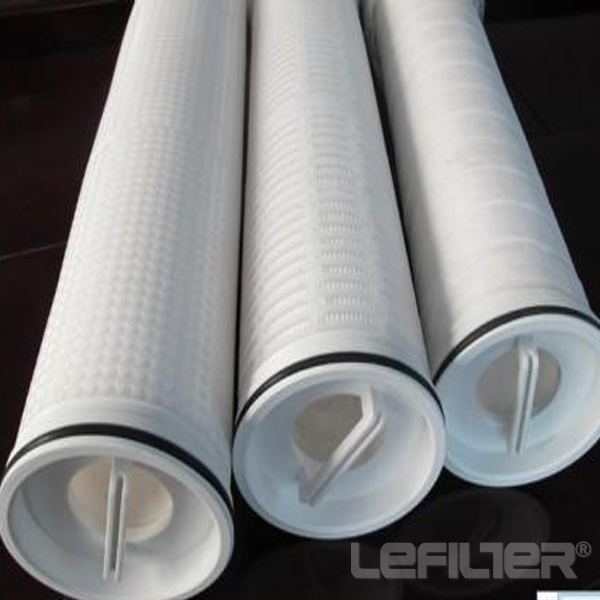

Photo of high flow rate water filter
