PALL High Flow water filter cartridge HFU640UY100J

Introduction: Description of PALL High Flow water filter cartridge HFU640UY100J The High Flow filter is suited for applications such as cooling water pre-RO and resin trap filtration. It is a ...

We're here to help:
Easy ways to get the answers you need.

  • Product parameter
  • Inquiry

Product parameter:

Description of PALL High Flow water filter cartridge HFU640UY100J

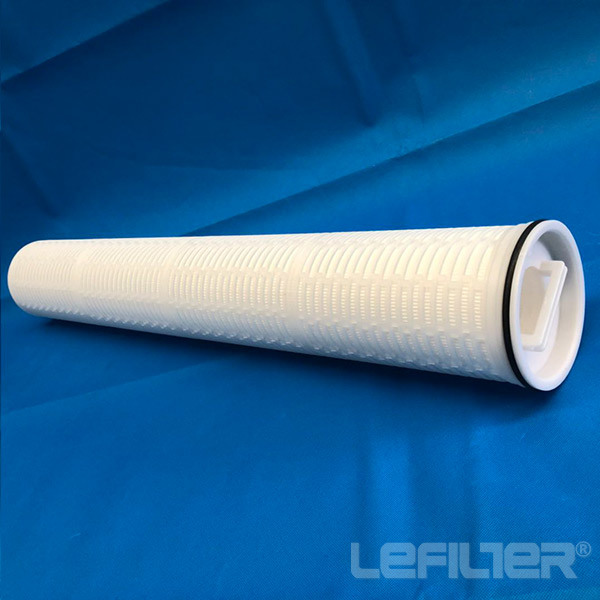

The High Flow filter is suited for applications such as cooling water, pre-RO, and resin trap filtration. It is a large diameter, coreless, single open-ended, pleated cartridge with an inside to outside flow pattern. The filter's unique crescent-shaped pleat geometry, combined with its large 152 mm / 6 in diameter, reduces the number of filters and size of housing required. The cartridge is also available in a wide range of  media types for other applications.



Features of  PALL High Flow water filter cartridge HFU640UY100J

• Up to 50% smaller filter system possible

• Up to forty times fewer elements to change out

• Very high flow rates per filter cartridge, up to 500 gpm / 114 m3/hr

• Available in 508 mm / 20 in, 1016 mm / 40 in and 1524 mm / 60 in lengths

• Coreless construction to minimize waste disposal

• Absolute rated filter medium for reproducible performance

• Inside to outside flow configuration - all contaminants held within the single open ended filter


PALL FILTER HFU640UY100J


Specifications of High Flow Water Filters HFU640UY100J

Filter Medium

Glass Fiber, PP, MBPP

Support and Drainage

PP

End Caps

glass fiber reinforced polypropylene

O-ring Seal Material

EPR, Nitrile Rubber

Removal Ratings

1μm, 4.5μm, 6μm, 10μm, 20μm, 40μm, 70μm, 100μm

Length

20inch (508mm) / 40inch (1016mm) / 60inch (1524mm)

Outer Diameter

6 inch (152mm)



Applications of PALL High Flow water filter cartridge HFU640UY100J

Pre-filtration or RO system,DI water

Solvents,selected acids&lyes,chemical industry

Semiconductor, Eletronic industry ultrapure water system

FOOD and beverage,drinking water treatment

High Flow filter elements are designed for high particle removal efficiency of fine particulates from water applications.





PALL High flow filters typical Part Nos.

HFU620UY060H13,HFU620UY060J,HFU620UY100H13,HFU620UY100J

HFU620UY200H13,HFU620UY400H13,HFU620UY400J,HFU620UY400JU

HFU640GF020H,HFU640GF020H13,HFU640GF020J,HFU640GF100H1

HFU640GF100H13,HFU640GF200H13,HFU640UY020J,HFU640UY045J

HFU640UY1000J,HFU640UY1000J,HFU640UY1000JU,HFU640UY100H13,HFU640UY100H4

HFU640UY100J,HFU640UY200H13,HFU640UY200J,HFU640UY200J,HFU640UY400J

HFU640UY400J,HFU640UY700J,HFU660GF020J,HFU660GF100H1,HFU660UY020J

HFU660UY045H13,HFU660UY045H4,HFU660UY045J,HFU660UY060H13,HFU660UY060J

HFU660UY1000J,HFU660UY100J,HFU660UY200H13,HFU660UY200J,HFU660UY400J

HF620UY20J,HF640UY20J,HF660UY20J,HF620UY45J,HF640UY45J,HF660UY45J

HF640UY100J,HF660UY100J,HF620UY200J,HF640UY200J,HF660UY200J,HF620UY400J

HF640UY400J,HF660UY400J,HF620UY700J,HF640UY700J,HF660UY700J, HF620UY100J
