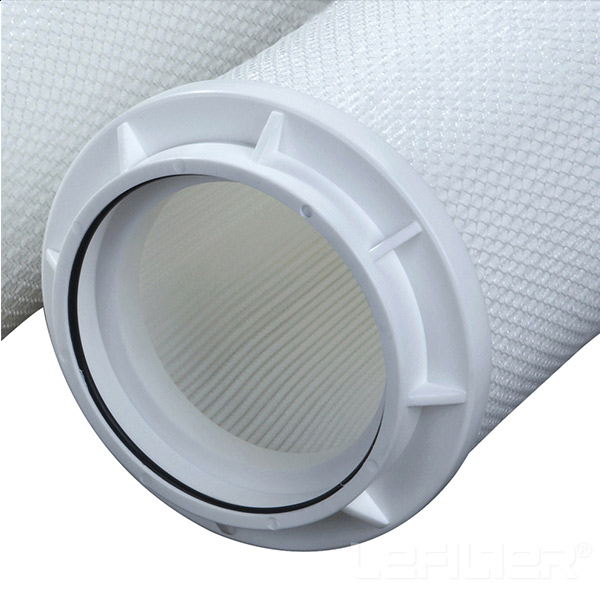

PARKER CARTRIGE FILTERS MFNP050-40N-ITT
Introduction:PARKER CARTRIGE FILTERS MFNP050-40N-ITT can be used in every large flow filter. Compared with the general model the large flow filter allows a larger size filter element and reduces investment and production costs. The horizontal design an
We're here to help:
Easy ways to get the answers you need.
Product parameter:
PARKER CARTRIGE FILTERS MFNP050-40N-ITT can be used in every large flow filter. Compared with the general model, the large flow filter allows a larger size filter element and reduces investment and production costs. The horizontal design and centerless structure are more convenient and convenient when replacing the filter element. fast. The maximum flow of a single filter is allowed to 1300lpm.
Characteristics and specifications of MNFP series of large flow filter elements
●High flow means the use of fewer filter elements, reducing labor and operating costs;
●High flow rate means the use of a smaller size filter housing, reducing investment costs and saving floor space;
●The replacement of the filter element is faster, simpler and safer
●O-ring ensures the reliability of the filter;
●Hot-melt-bonded polypropylene material can prevent particles from being released and unloaded, which is different from ordinary wire-wound filter elements;
●The folding surface design makes the pressure drop of the high-flow filter element lower than other filter elements and has a longer service life
●Allow high-flow media to pass through the filter material, which has the advantages of high efficiency, low pressure loss and long life.
●The in and out structure of the filter element makes it easy to replace the filter element while keeping pollutants trapped inside the filter element.
●The metal-free structure of the filter element allows it to undergo environmental protection treatments such as complete combustion and flattening.
●Multiple filter elements can be installed in the filter housing, which can use a wide range of flow, whether it is starting or continuous operation.
●The filter element is durable, and the filter can be configured the least and most economically
Application fields of large flow filter element MNFP series:
Reverse osmosis pretreatment
Ultrafiltration pretreatment
Cleaning fluid pretreatment
Sewage treatment
PARKER CARTRIGE FILTERS MFNP050-40N-ITT details:
Nominal filtration accuracy of large flow filter element MNFP series (90%):5um
Large flow filter MNFP series size specifications:
Outer diameter: 152mm Inner diameter: 89mm
Length: 1016mm
Surface area: 5.6 square meters
High flow filter element MNFP series structure material:
Filter layer: Microfiltration polypropylene (PP)
Support layer: Polypropylene (PP)
End cap: glass fiber reinforced polypropylene
O-ring: ethylene propylene rubber, Teflon
Large flow filter element MNFP series operating environment:
Replacement pressure difference: 2.4bar
Maximum flow: 70T/H
Maximum temperature: 80 degrees Celsius
Maximum pressure drop: 3.4bar
Other popular parker filter model we have :
MFNP005-40N，MFNP010-40N，MFNP010-40N-VGS，MFNP050-40N，MFNP050-40N-ITT，MFNP050-40N-VGS，MFNP1000-40N，MFNP100-40N，MFNP100-40N-VGS
