P-all HFU640UY100J High Flow water Filter cartridge

Introduction:P-all Large flow rate water filter product description High Flow Pleated Filter Cartridge is single open ended which design for the direction from an inside to outside flow pattern. The large filter area ensure the high dirt holding capacity

We're here to help:
Easy ways to get the answers you need.

  • Product parameter
  • Inquiry

Product parameter:

P-all High flow rate water filter product description

High Flow Pleated Filter Cartridge is single open ended which design for the direction from an inside to outside flow pattern.
The large filter area ensure the high dirt holding capacity. The low cost save the number of filter cartridge. Long service life and superior flow rates are the main characteristics. All contaminants can be removed efficiently.

Appearance description of high flow water filter

High Flow Rate Pleated Filter  Cartridges are made of pleated filter madia and designed for applations requiring low pressure drop and high folw capacity.
Manufactured by high quality polymer media,the cartridges exhibit highly effective retention efficiency as well as reusable convenience.
The design of great surface area ectends service life and makes the cartridge one of the most economic options in water treatment.

P-all High flow rate water filter advantage&Features

1.Pleated surface area results in great filtration area,providing longer service life and more competitive
2.Fewer change outs and less maintenance are reequired.
3.Manufactured by high quality polymer media, the cartridges exhibit highly effective retention efficiency and reusable convenience.
4. Available in a variety of length to meet diffent needs and equirement requiremetns.

P-all High flow rate water filter parameter

Filter Media     glass fiber
Filter Grades  1.5,3,4,5,10,20,30,70 micron
Center Core(60'length only)         PP
End caps             PP
Support             PP
O-ring Options        Nitrile,NBR
Cartridge Length        20", 40", 60"
Cartridge max OD            6.3"

P-all High flow rate water filter applations

1. RO security filtration seawater desalination pretreatment
2. Power plant condensate filtration
3. Water filtration in the biopharmaceutical industry
4. Filtration of bottled water, sugar liquid, edible oil, fruit juice, soft drink, milk
5. Paint, coating, petrochemical industry
6. Microelectronics film fiber resin

Other High Flow rate water filter models:

HF40PP001A01, HF40PP001B01, HF40PP001C01, HF40PP001D01,
HF40PP002A01, HF40PP002B01, HF40PP002C01,HF40PP002D01,
HF40PP005A01, HF40PP005B01, HF40PP005C01, HF40PP005D01,
HF40PP010A01, HF40PP010B01,HF40PP010C01, HF40PP010D01,
HF40PP015A01, HF40PP015B01, HF40PP015C01, HF40PP015D01,
HF40PP025A01,HF40PP025B01, HF40PP025C01, HF40PP025D01,
HF40PP040A01, HF40PP040B01, HF40PP040C01, HF40PP040D01,
HF40PP070A01, HF40PP070B01, HF40PP070C01, HF40PP070D01,
HF60PP001A01, HF60PP001B01, HF60PP001C01,HF60PP001D01,
HF60PP002A01, HF60PP002B01, HF60PP002C01, HF60PP002D01,
HF60PP005A01, HF60PP005B01,HF60PP005C01, HF60PP005D01,
HF60PP010A01, HF60PP010B01, HF60PP010C01, HF60PP010D01,
HF60PP015A01,HF60PP015B01, HF60PP015C01, HF60PP015D01,
HF60PP025A01, HF60PP025B01, HF60PP025C01, HF60PP025D01,
HF60PP040A01, HF60PP040B01, HF60PP040C01, HF60PP040D01,
HF60PP070A01, HF60PP070B01, HF60PP070C01,HF60PP070D01

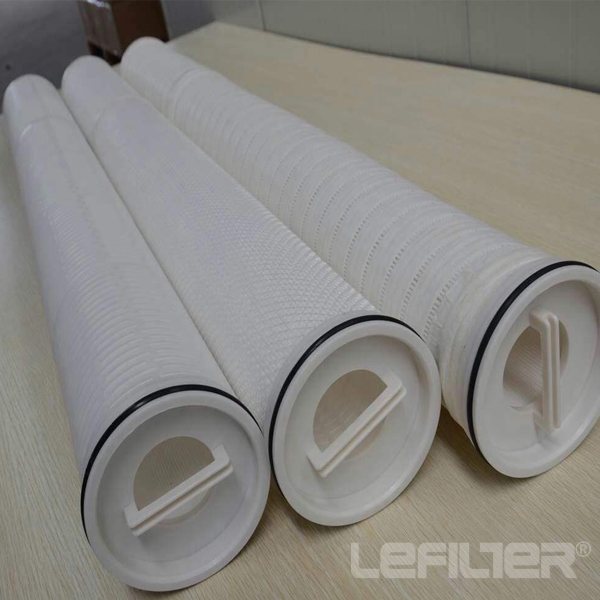

Photo of high flow rate filter:
