Large flow pleated water filter element

Introduction:high flow filter introduction: high-flow filter element is made of glass fiber material which can withstand higher use temperature and adopts the structure of inner frame inner woven net and outer frame which has higher strength and t

We're here to help:
Easy ways to get the answers you need.

  • Product parameter
  • Inquiry

Product parameter:

Large flow water filter introduction:

High-flow filter element is made of glass fiber material, which can withstand higher use temperature, and adopts the structure of inner frame, inner woven net, and outer frame, which has higher strength, and the filter element can be suitable for harsh production environments. For traditional filter elements, high filtration efficiency, high impurity holding capacity and service life are often unable to find a better balance point, that is, if the product filtration efficiency is high, its dirt holding capacity and service life are often short.

Features of high flow filter element:

The range of filtration accuracy is relatively wide, and you can choose between 0.1 micron and 100 microns.
The material of the pleated filter element is made of glass fiber and polypropylene, without any adhesive added, which greatly reduces the probability of leaching from the filter column itself.
The high-flow filter product has very good chemical compatibility, and is resistant to strong acids and alkalis. It can be used for the filtration of most organic solvents and the filtration of strong acids and alkalis.
The large flow filter element has a very good dirt holding capacity and a very high retention efficiency of particulate matter.
The high-flow filter element can withstand higher temperatures and has very good high temperature resistance. At the same time, it can perform continuous operation in a high temperature environment and can withstand repeated high temperature and high pressure sterilization.
The mechanical strength of the high-flow filter element is very high, so that its service life is relatively long and the pressure is reduced.

Large flow water filter technical parameter

Brand: Lefilter
Filter material: folded glass fiber, PP, melt blown polypropylene
Support / diversion layer: polypropylene
End cap: glass fiber reinforced polypropylene
Sealing ring material: ethylene propylene rubber, nitrile rubber

Large flow water filter application field

1. General purpose: pre-filtration of RO reverse osmosis system
2. Chemical/petrochemical industry: various acids, alkalis, solvents, quench water, brine, etc. and various other chemical agents
3. Power plant: make-up water, condensate water, stator cooling water, etc.
4. General industry: various process fluids, process water, condensate water, cooling water, wastewater treatment, etc.
5. Microelectronics industry: pre-filtration of deionized water
6. Food and beverage industry: process water, etc.

OUR ADVANTAGES:

Our company has rich experience and mature technology. The large flow filter element produced can replace the original filter element, which has great advantages in quality and price.

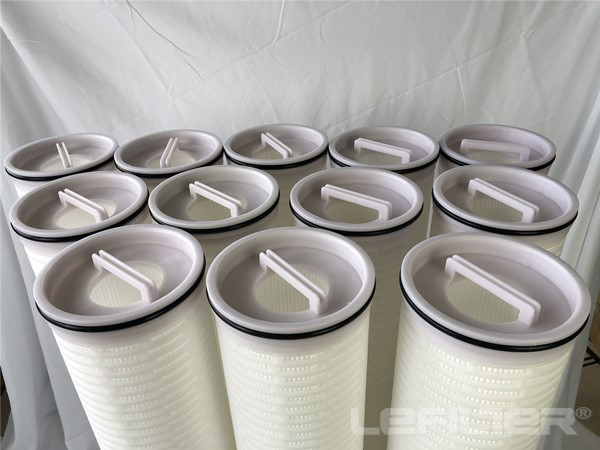

More picture:
