HFU640UY200J P-all Water Filter Cartridge

Introduction:HFU640UY200J P-all High Flow Rates Filter has a big diameter of 6 inches/152mm but no center support frame. Only one end of the filter is open and its flow manner of filtering fluid is from insid

We're here to help:
Easy ways to get the answers you need.

  • Product parameter
  • Inquiry

Product parameter:

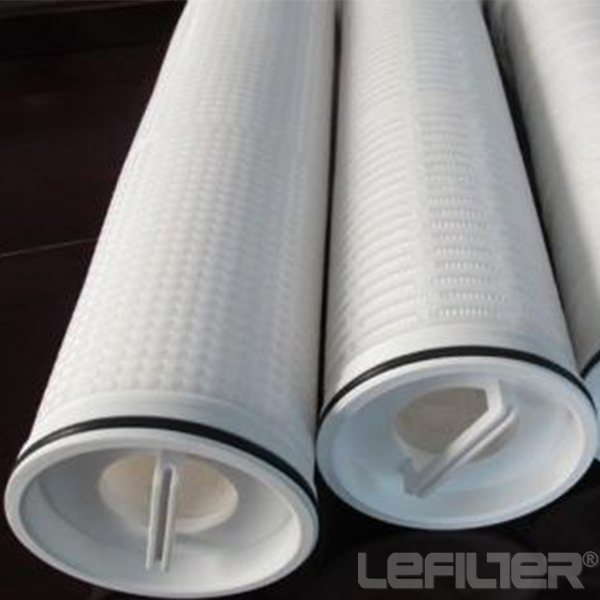

HFU640UY200J P-all Water Filter Cartridge


P-all high flow rates filter have a big diameter of 6 inches/152mm, but no center support frame. Only one end of the filter is open and its flow manner of filtering fluid is from inside to outside.
The big diameter of filter elements increases effective filtration areas.
Due to the high flow rates and long life, thus largely reduce the required filter amount and human cost in many applications.

P-all Filter Cartridge


Outside Diameter: 6 inch(152mm)
Length:   20 inch(528mm),40 inch(1022mm),60 inch(1538mm)

Filter media:

Pleated glass fiber
Pleated depth Polypropylene (PP)
PP Melt blown

Support/Drainage: Polypropylene (PP)
End caps :  Glass fiber reinforced Polypropylene
Seal Material : EPDM, NBR
Removal Rating:  1 µm , 4.5 µm , 6 µm , 10 µm ,20 µm ,40 µm ,70 µm,100µm
Maximum Operating Temperature:

Pleated glass fiber:121°C

Pleated PP: 82°C

Melt Blown PP: 65°C

Maximum Differential Pressure:

Pleated glass fiber:3.4 Bar at 121°C

Pleated PP: 3.4Bar at 82°C

Melt Blown:1.03Bar at 65°C

Recommended Change out Differential Pressure: 2.4Bar at 20°C
Suggested maximum Flow of water:

20 inch length:660LPM

40 inch length:1,300LPM

60 inch length:1,900LPM



The Application Fields of P-all High Flow Rates Filter

RO cartridge filtration and seawater desalination pretreatment
Filtration of condensed water in power plants
Filtration of bulk drug, solvent, and water in bio-pharmacy industry
Filtration of bottled water, liquid glucose, edible oil, juice, soft drink and milk
Painting, petrochemical industry
Micro-electronics, film, fiber, resin


Other Model No.

HFU660UY020J,HFU660UY045H,HFU660UY045H1,HFU660UY045H13,HFU660UY045H13W,

HFU660UY045H4,HFU660UY045H4W,HFU660UY045HW,HFU660UY045J,HFU660UY060H,

HFU660UY060H1,HFU660UY060H13,HFU660UY060H13W,HFU660UY060H4,HFU660UY060H4W,

HFU660UY060HW,HFU660UY060J,HFU660UY1000H,HFU660UY1000H1,HFU660UY1000H13,

HFU660UY1000H13W,HFU660UY1000H4 ,HFU660UY1000H4W,HFU660UY1000HW,

HFU660UY1000J,HFU660UY100H,HFU660UY100H1,HFU660UY100H13,HFU660UY100H13W,

HFU660UY100H4,HFU660UY100H4W,HFU660UY100HW,HFU660UY100J,HFU660UY200H,

HFU660UY200H1,HFU660UY200H13,HFU660UY200H13W,HFU660UY200H4,HFU660UY200H4W,

HFU660UY200HW,HFU660UY200J,HFU660UY400H,HFU660UY400H1,HFU660UY400H13,

HFU660UY400H13W,HFU660UY400H4,HFU660UY400H4W,HFU660UY400HW, HFU660UY400J,

HFU660UY700H,HFU660UY700H1,HFU660UY700H13,HFU660UY700H13W,HFU660UY700H4,

HFU660UY700H4W,HFU660UY700HW,HFU660UY700J,HP1351A10ANP01,HP3202A10ANP01,

HFU620CAS010JUW HFU640CAS010JUW HFU660CAS010JUW HFU620UY020H13 HFU640UY045H13

HFU660UY400H13 HFU620GF100H13 HFU640GF200H13 HFU660GF050H13HFU620UY020J HFU640UY020J

HFU660UY020J HFU620UY045J HFU640UY045J HFU660UY045J HFU620GF100H13 HFU640GF200H13

HFU660GF100H13 HFU620UY200J HFU640UY200J HFU660UY200J HFU620UY400J HFU640UY400J

HFU660UY400J  HFU620UY700J HFU640UY700J HFU660UY700J
