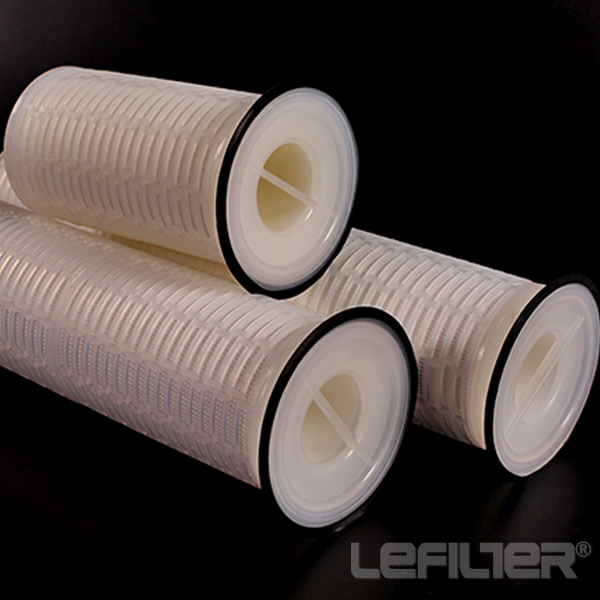

EBC Series High Flow Pleated Filter Cartridge
Introduction:EBCSeries High Flow Pleated Filter Cartridge EBCSeries High Flow Pleated Filter Cartridge is a new product developed by LEFILTER China. This kind of cartridges combine the performance advantages of cartridge filters with the ease use of bag
We're here to help:
Easy ways to get the answers you need.
Product parameter:
EBC Series High Flow Pleated Filter Cartridge
EBC Series High Flow Pleated Filter Cartridge is a new product developed by LEFILTER China.
This kind of cartridges combine the performance advantages of cartridge filters with the ease use of bag filter systems. It offers unique combination of benefits and unmatched economics.
Filtration customers no longer have to choose between cartridge and bag technologies.
The pleated media increases the effective filtration area with high flow and long service life.
Economical design make the filter has more cost advantage to help users reduce costs.
Features of EBC Series High Flow Pleated Filter Cartridge
[ Economical design, more cost advantage ]
[ High performance filter media ]
[ Pleated configuration with high filtration area ]
[ Large 152mm cartridge diameter suitable for high flow/high contaminant applications ]
[ High mechnical strength ]
[ Easily retrofit into existing size 1 and size 2 bag housings ]
[ The inside-to-outside fluid flow ensures the unwanted particles are trapped with the element]
Specifications of EBC Series High Flow Pleated Filter Cartridge
|
Dimension |
|
|
OD |
Ø 152mm (6 Inch) |
|
Length |
16" (370mm) for size 1 bag 32" (634mm) for size 2 bag |
|
Removal Rating |
0.5, 1, 3, 5, 10, 20, 40, 50, 70, 100, 120 µm |
|
Flange types |
B= For side entry housing (177mm) C= For over the top housing (183mm) |
|
Material of Constructions |
|
|
Filter Media |
Pleated Depth Polypropylene (PP) |
|
Support |
PP |
|
End Cap |
PP |
|
Adjustable Flange |
PP |
|
Sealing |
EPDM, NBR, FKM |
|
Performance |
|
|
Max. Operating Temperature |
80℃ |
|
Max. Operating DP |
3.4bar@60℃ |
|
Recommended Change Out DP |
2.4bar@20℃ |
