3M Replacement High Flow Water Filter Cartridge HF40PP001A01
Introduction:3M Replacement High Flow Water Filter Cartridge Product parameter: Specifications of 3M Replacement High Flow Water Filter Cartridge Type: 3MWater filter Use:Household Pre-Filtration Place of Origin:Henan China (Mainland) Brand Name:3M Mod
We're here to help:
Easy ways to get the answers you need.
Product parameter:

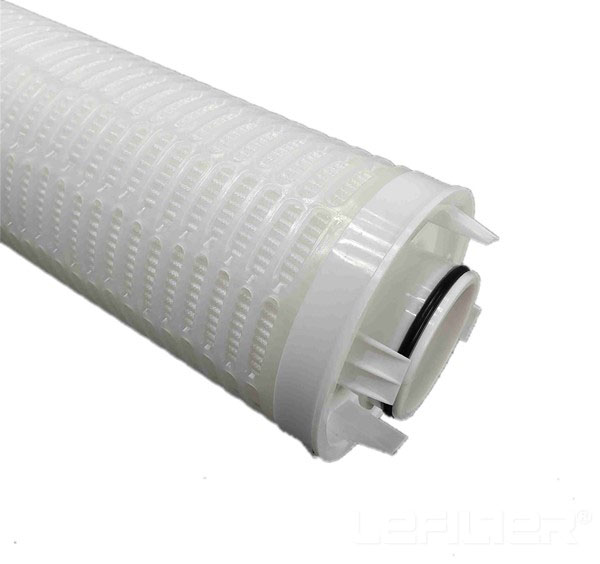

The Introduction of 3M High Flow Water Filter :
The Ultipleat High Flow water filter is suited for applications such as cooling water, pre-RO, and resin
trap filtration. It is a large diameter, coreless, single open-ended, pleated cartridge with an inside
to outside flow pattern. The filters patented crescentshaped pleat geometry, combined with its
large 6"/ 152 mm diameter, reduces the number of filters and size of housing required. The
cartridg is also available in a wide range of media types for other applications.
Materials of Construction of high flow water filter:
· Filter Medium:
Pleated polypropylene depth structure
· Support/Drainage:
Polypropylene
· Endcaps:
Glass filled polypropylene
· O-ring:
Ethylene propylene
Filtration rating:
· 3.2 µm, 4.5 µm, 10 µm, 20 µm, 40 µm, 70 µm, 100 µm
3M water filter configuration:
· Single open end, 6" / 152 mm diameter filter
· Maximum Operating Temperature:
180°F / 82°C
· Maximum Differential Pressure1(nominal inside to outside flow):
50 psid at 180°F / 3.4 bar at 82°C
Product parameter:
Specifications of 3M Replacement High Flow Water Filter Cartridge
Type: 3M Water filter
Place of Origin:Henan, China (Mainland)
Brand Name: 3M
Model Number: HF40PP001A01
Media:pp
Micron:15um
Max temperature:60degree
Shape:Filter Element for Hydraulic
Color:White
Certification:ISO9001:2000
Service Life:8-12months
Merit:remove metal impurity
Available models：
HF40PP005、HF40PP010、HF40PP040、HF40PP070、HF40PP100
HF30PP005、HF30PP010、HF30PP030、HF30PP070、HF30PP100
HF20PP005、HF20PP010、HF20PP020、HF20PP070、HF20PP100
