Parker big flow water filter element RCP010-20EPP

Introduction:Product parameter: Replacement Parker high flow filter cartridgeRCP010-20EPP Micron 1m5m10m15m20m40m70m100m Cartridge Length: 40 (1016mm) Cartridge Max.OD: 6.0(152mm) Filter Medium: Polypropylene Cellulose Melt Blown PP Support: P

We're here to help:
Easy ways to get the answers you need.

  • Product parameter
  • Inquiry

Product parameter:

Brief introduction of large flow folded water filter:

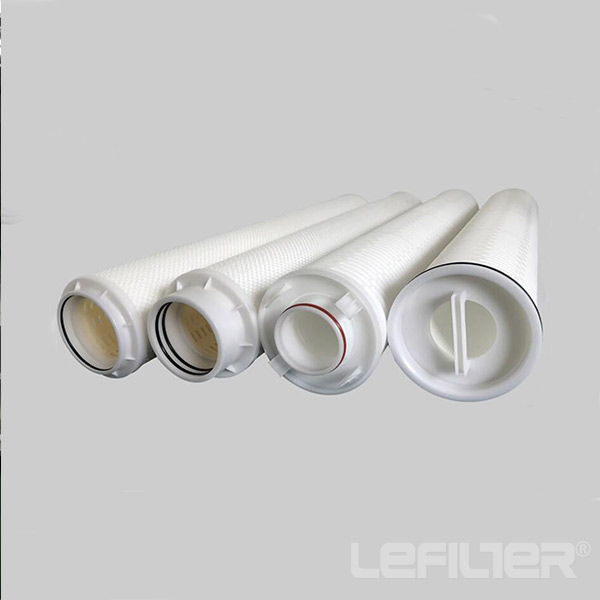

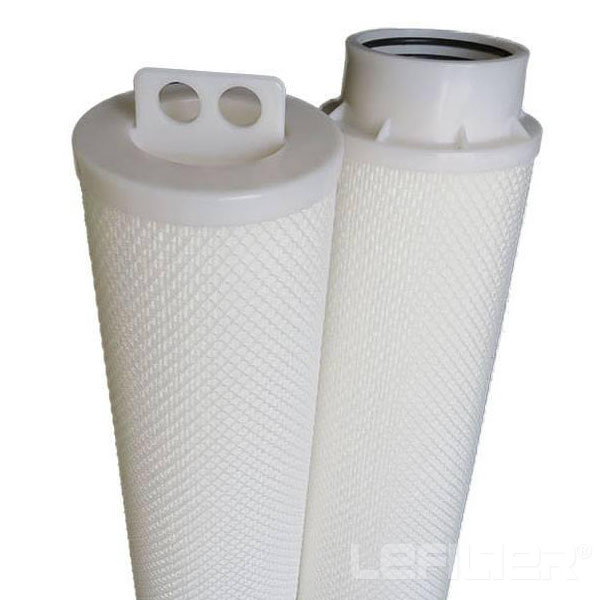

The high-flow filter element has a large diameter of 152mm, and there is no central support frame, one end is open, and the filtering fluid flows from the inside to the outside. The large diameter design of the filter element and the increase of the effective filter area can greatly reduce the number of filter elements and reduce the size of the housing. In many applications, due to the large flow rate and long filter life, both investment and labor costs can be reduced.

Filter features of high flow water filter:

1. Gradient aperture structure

2. When filtering water, the flow rate of a filter element can reach up to 110m3/H

3. The size of the filter system can be reduced by up to 50%

4. Can provide 508mm (20 inch), 1016mm (40 inch), 1524mm (60 inch) length filter element

5. The flow direction from inside to outside ensures that all impurities are trapped inside the filter element

Performance parameters:

Filtration accuracy: 1um, 5um, 10um, 20um, 40um, 70um, 100um

Filter element size: outer diameter: 152mm length: 508mm, 1016mm, 1524mm

Maximum operating temperature: folded polypropylene: 82°C; meltblown polypropylene: 65°C

Maximum pressure drop: Folded polypropylene: 3.4bar, 82C

Melt blown polypropylene: 1.03bar, 65C

Recommended pressure drop for filter element replacement: 2.4bar, 20C

Recommended maximum water flow: 20inch long filter element: 660L/min

40inch long filter element: 1300L/min

60inch long filter element: 1900L/min



Application areas:

Power plant condensate filtration;

Filtration of raw materials, solvents and water in the biopharmaceutical industry;

Filtration of bottled water, sugar liquid, edible oil, fruit juice, soft drinks, milk;

Paints, coatings, petrochemicals;

Microelectronics, film, fiber, resin and other industries.
