​​Process Water Quality: The Hidden Factor in Industrial Filtration Efficiency​​

Process water is critical for industrial equipment and product manufacturing, yet poor water quality often causes unexpected filtration failures. When filter cartridges clog prematurely or underperform, the culprit may not be the filter itself - but contaminated process water carrying particulate loads that sabotage your operations.

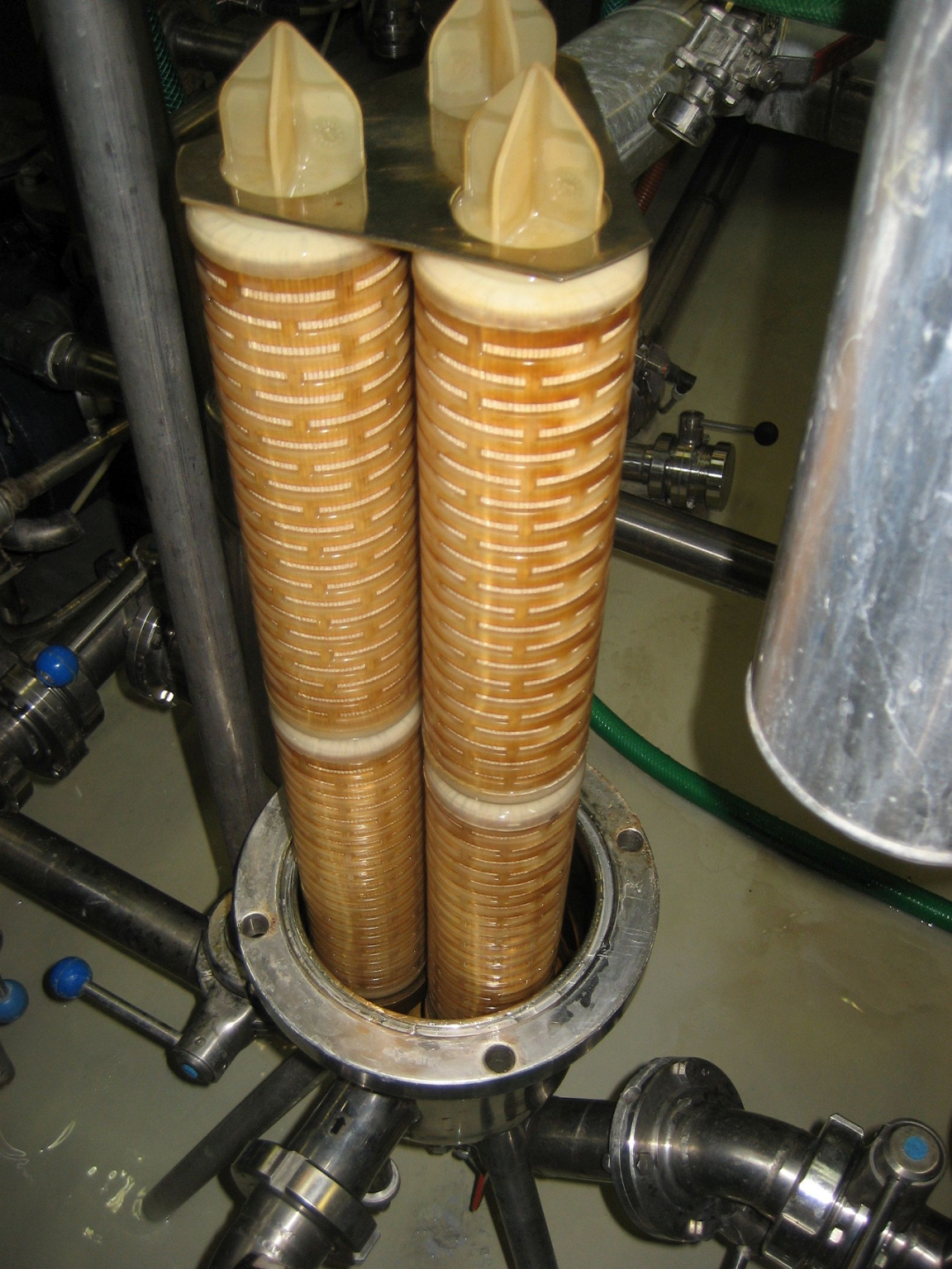

Iron and sediment residues on unfiltered cartridge components below.

Section 1: The Critical Role of Process Water

As the universal contact medium in cleaning and rinsing operations, process water introduces its own particulate burden throughout production cycles. Beverage industries primarily use two sources:

1. Tap Water (Potable):

• Regulated by Drinking Water Ordinances

• Must contain <100 CFU/ml microorganisms

• Zero pathogens (E. coli, enterococci)

2. Well/Spring Water:

• Same microbiological standards as tap water

• Additional requirement: No sulfite-reducing anaerobes in 50ml samples

Both sources can contain:

• Particulates (rust, lime, sand)

• Colloidal contaminants

• Microbial contaminants (bacteria, yeast, mold)

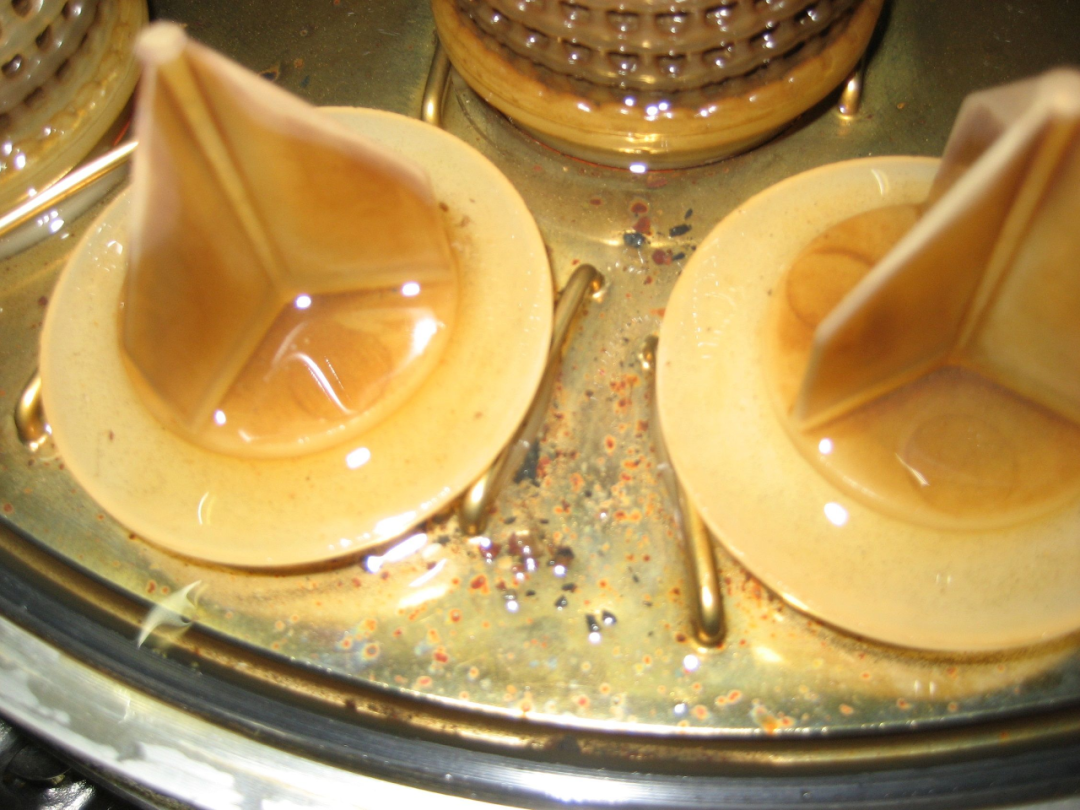

Heavy sediment and iron deposits on filter cartridges

Section 2: Filtration Technologies Compared

Modern solutions have evolved from gravel/sand bed filters to advanced systems:

Layered funnel design maximizes particle retention in pre-filters

Asymmetric pore distribution optimizes flow in membrane cartridges

Section 3: Winery Case Study - Filtration Practices

Analysis of 7 wineries revealed diverse approaches to process water filtration:

Section 4: Filtration Performance Analysis

Testing Methodology:

• 5L water samples filtered through 0.45μm test membranes

• Constant pressure: 1.0 bar (14.5 psi)

• Flow rates measured at 200ml and 5L intervals

• Visual residue analysis + Ferri-Ferro iron testing

Key Findings:

Winery I (Unfiltered Water):

• Easy filtration (end flux >400 ml/min)

• Heavy sediment layer on test membrane

• Positive iron test indicating pipe corrosion

Winery II (0.3μm Pre-filter):

• Initial difficulty (end flux: 296 ml/min)

• Post-filtration improvement (end flux: 510 ml/min)

• Reduced bacteria/yeast counts

Winery III (0.45μm Membrane Only):

• Silica sol concentration limiting flow

• No visible residue but flow capped at 400 ml/min

Winery IV (0.3μm + 0.2μm System):

• Optimal performance (end flux: 487 ml/min)

• Zero residue/microbial contamination

Section 5: Implementation Recommendations

1. Mandatory Pre-Filtration:

• Install depth filters (0.3-1.0μm) for particulate removal

2. Corrosion Monitoring:

• Conduct quarterly Ferri-Ferro tests

3. Microbial Control:

• Supplement with 0.2μm membranes for critical applications

4. Flow Optimization:

• Target end flux >400 ml/min through proper staging

"Filter cartridges don't fail - filtration systems do. Optimizing process water quality is the foundation of reliable industrial operations."
