​​Optimizing Gas Turbine Performance: Filtration Strategies for Sustainable Power Generation​​

Lefilter2025-07-30 BACK TO LIST

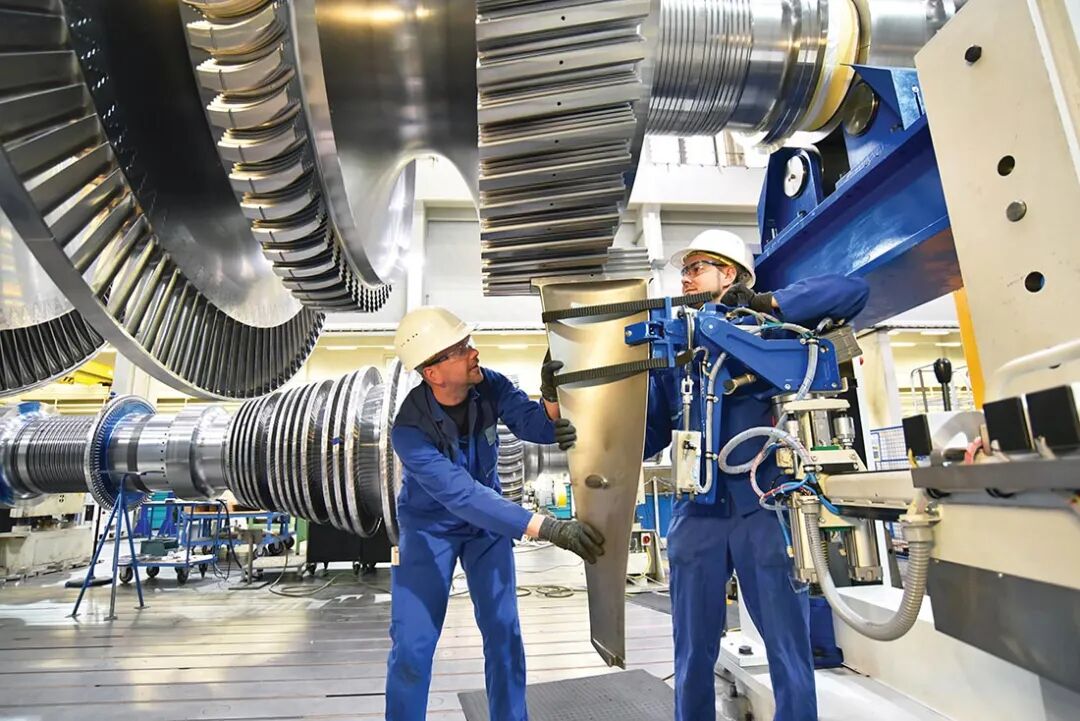

Gas turbines power 25% of global electricity generation, driving economic growth while facing decarbonization challenges. As cooling demand surges (consuming 20% of global electricity), turbine performance becomes critical for grid stability and emissions control.


Section 1: Performance Imperatives

Global electricity demand will grow 3.3% in 2024 (IEA). Turbines operating in high-dust environments experience:

  • 70% performance degradation from compressor fouling

  • Increased fuel consumption to maintain output

  • Reduced component lifespan from thermal stresses

Meeting 2°C climate goals requires balancing reliability with responsible fossil fuel use during energy transitions.

Section 2: Operational Fundamentals

Key process stages:

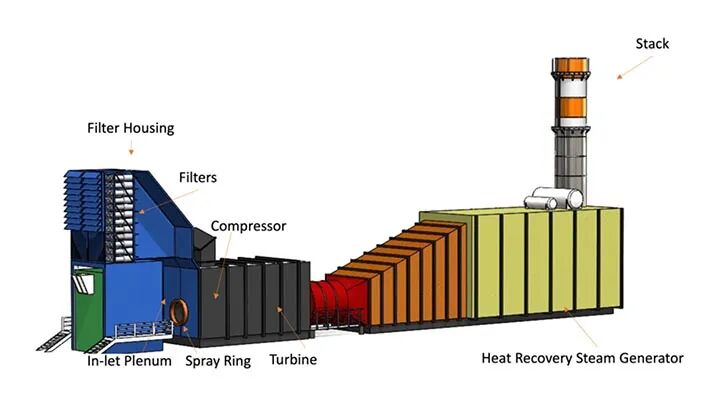

  1. Air Intake: Atmosphere enters through filtration chambers

  2. Compression: Air pressurized (10:1 to 40:1 ratios) at 300-700°C

  3. Combustion: Fuel injected into pressurized air (1,300-1,600°C)

  4. Power Generation:

    • 50-60% energy drives compressor

    • Remainder powers generator/mechanical loads

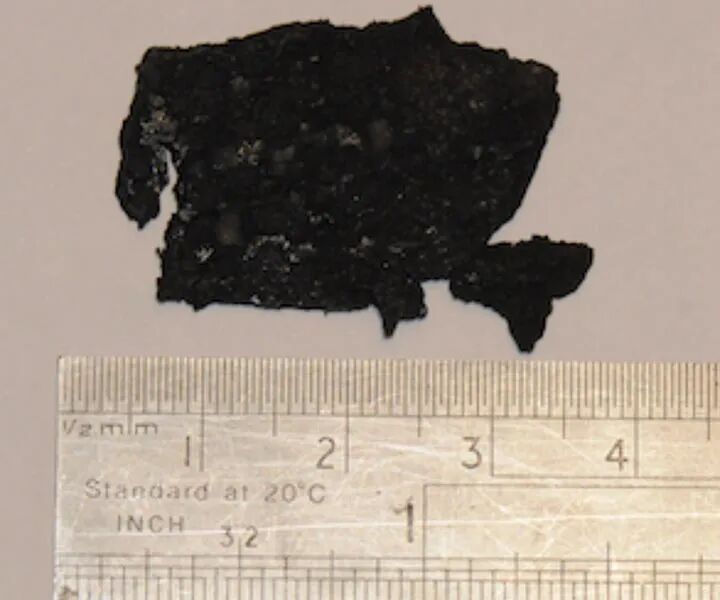

Section 3: Compressor Fouling Mechanisms


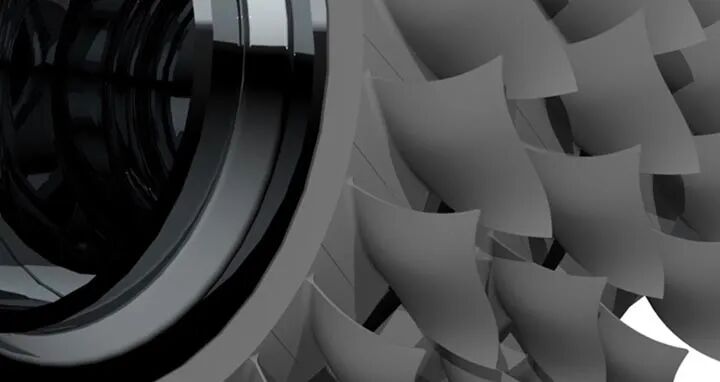

Figure 2: Throat Area Reduction in Compressor Assembly

Fouling Consequences:

  • Reduced mass flow rate (-5% to -20%)

  • Decreased pressure ratio (-4% to -8%)

  • Efficiency losses of 2-10%

Section 4: Filtration Technologies

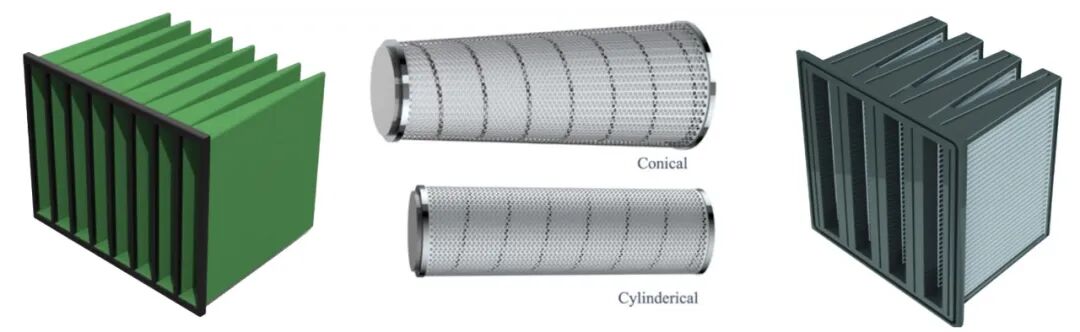

Filter Types:

  • Depth Filters: Particle capture within media matrix

  • Surface Filters: Cake formation on media surface

  • Pulse Filters: Automated cleaning via compressed air

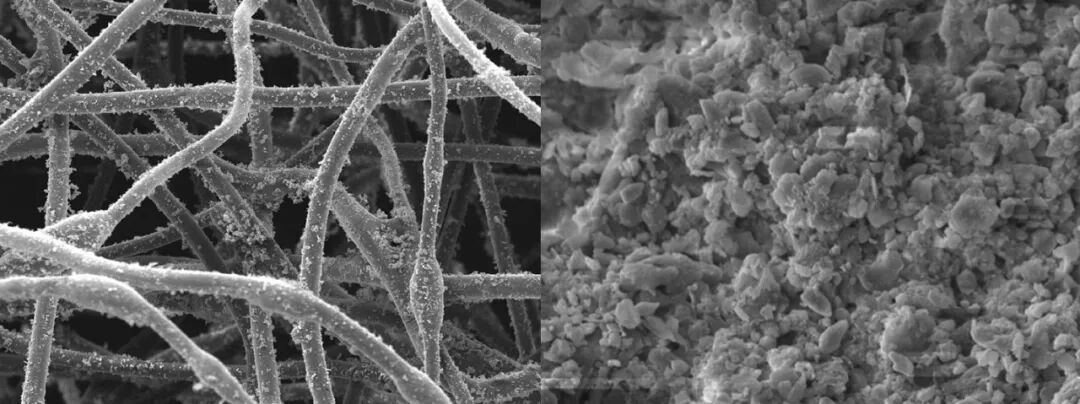

Depth (Left) vs. Surface (Right) Particle Capture

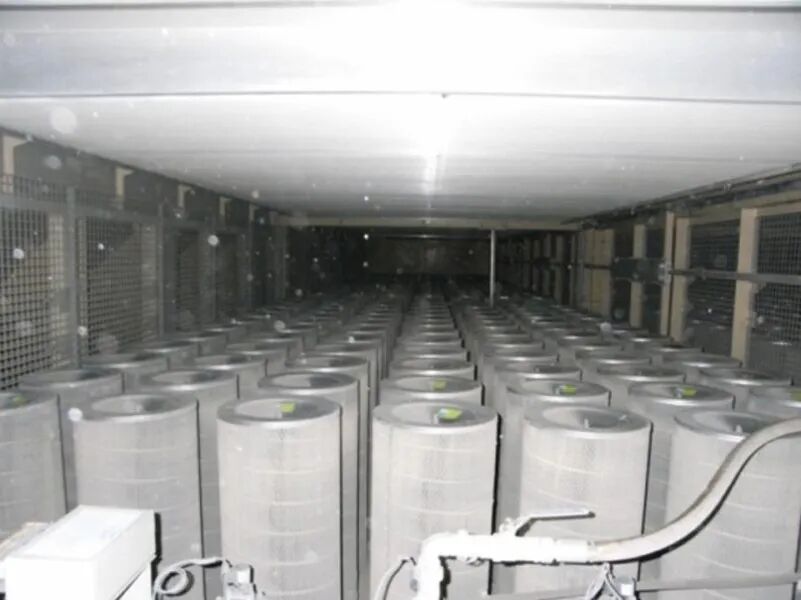

Pulse Filter Installation in Turbine Intake


Section 5: Geo-Specific Design Considerations

Critical Parameters:

Factor

Impact

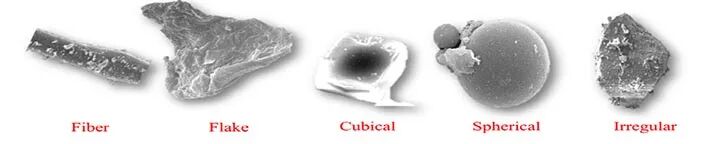

Particle Size/Shape

Determines capture mechanism

Local Climate

Affects media loading dynamics

Mass Flow Rates

500-1,000 kg/s typical for 300MW turbines

Particle Morphology Variations


Design Solutions:

  • Optimized pleat density for effective surface area

  • Structural reinforcement against flow-induced deformation

  • Aerodynamic housing to minimize pressure drop

Section 6: Performance Optimization Pathway

Operational Best Practices:

  1. Filter Selection: Match media to local contaminant profile

  2. Monitoring: Track ΔP across filter banks (alerts at >250 Pa increase)

  3. Cleaning Protocols: Schedule washes at 0.5-1.5% efficiency loss

  4. Hybrid Approach: Combine depth pre-filters with pulse-cleaned main units

Sustainability Integration:

"Operating near design point maximizes efficiency while supporting responsible fossil fuel use during renewable transitions. Our obligation: leave future generations a regenerated planet."
