The high-throughput security (precision) filter
Introduction:Thehigh-throughput security (precision) filter is made of 304 or 316L stainless Steel. With the advantages of light-weight, easy to use, large filter area, high filtering speed and non-clogging, it is widely used in pre-treatment and filtration. This
We're here to help:
Easy ways to get the answers you need.
Product parameter:

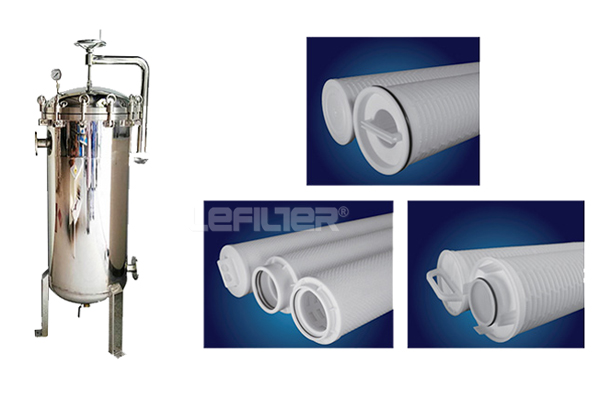

The high-throughput security (precision) filter is made of 304 or 316L stainless Steel. With the advantages of light-weight, easy to use, large filter area, high filtering speed and non-clogging, it is widely used in pre-treatment and filtration.

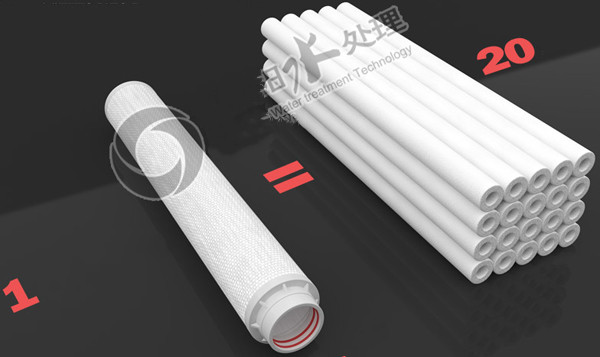

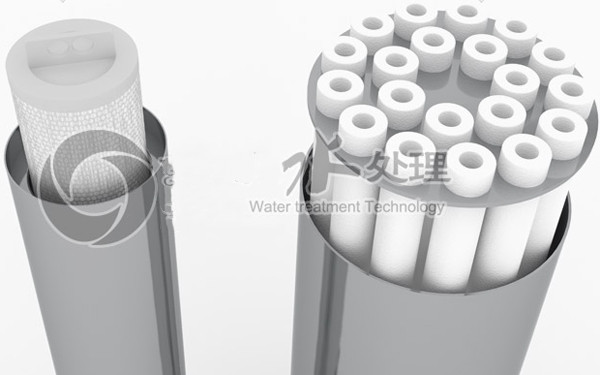

This filter housing could be equipped with different filter element, such as PP melt-blown cartridge, pleated cartridge filter, string-wound filter and activated carbon filter. The models are varied from 10" to 40".
Flange Type Specifications
|
Diameter |
Specification |
Housing Thickness |
Flow Rate |
Dimension of inlet and outlet |
Type |
|
Φ300 |
10 core 40" |
2mm |
15T/H |
DN50 |
Flange |
|
Φ350 |
15 core 40" |
2 mm |
25T/H |
DN65 |
Flange |
|
Φ400 |
20 core 40" |
2 mm |
35T/H |
DN80 |
Flexible flange |
|
Φ450 |
25 core 40" |
2.5 mm |
45T/H |
DN80 |
Flexible flange with rocker arm |
|
Φ500 |
30 core 40" |
3 mm |
55T/H |
DN80 |
Flexible flange with rocker arm |
|
Φ550 |
35 core 40" |
3 mm |
65T/H |
DN100 |
Flexible flange with rocker arm |
|
Φ600 |
40 core 40" |
3 mm |
75T/H |
DN100 |
Flexible flange with rocker arm |
|
Φ700 |
60 core 40" |
3 mm |
100T/H |
DN150 |
Flexible flange with rocker arm |
|
Φ800 |
70 core 40" |
3 mm |
120T/H |
DN150 |
Flexible flange with rocker arm |
Application Filed:
Weakly corrosive materials in chemical and petrochemical production, such as water, oil, ammonia, hydrocarbons, etc.
Corrosive materials in chemical production, such as: caustic soda, soda ash, concentrated dilute sulfuric acid, carbonic acid, aldehyde acid, etc.
Materials that have sanitary requirements in food and pharmaceutical production, such as beer, beverages, dairy products, syrup, etc.
Performance
1. Large filtering area, low pressure loss, easy to replace the filter element.
2. Stable filtration performance, compressed air can be used continuously.
3. Equipped with a pressure difference indicating device, automatic and manual sewage discharge.
4. The filter element material has high cleanliness and no pollution to the filter medium.
