Automatic Self cleaning filter LFZ-700-X

Introduction:When water runs through the water inlet into the filter cartridge the impurities were intercepted on the inner wall of the filter cartridge and the clean water flows out of the outlet. As the impurities in the inner surface of the filter

We're here to help:
Easy ways to get the answers you need.

SEND E-MAIL GET PRICE

Product parameter
Inquiry

Product parameter:

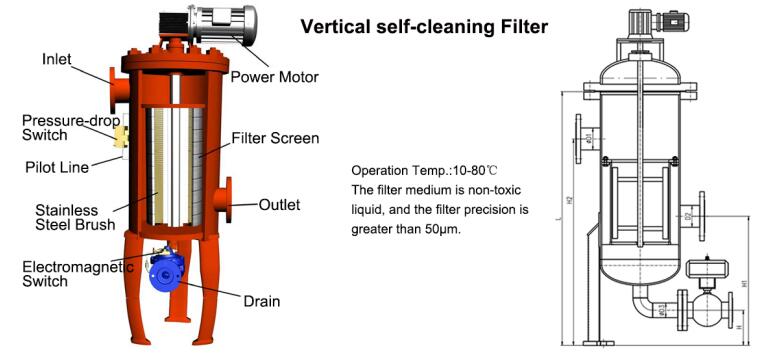

When water runs through the water inlet into the filter cartridge, the impurities were intercepted on the inner wall of the filter cartridge, and the clean water flows out of the outlet. As the impurities in the inner surface of the filter tube piles up, the differential pressure between the inlet and outlet runs up to the pre-set value, the self-cleaning process will begin. The self-cleaning process can also begin when it reaches the washing time or manual prefabrication. And it includes two steps: Open the automatic drain valve on the filter;The cleaning brush inside the filter mesh is drove by the motor, and the impurities stopped by the filter mesh will be discharged from the drain valve. When cleaning, the system does not cut off; the whole operation process of the filter is controlled by an intelligent control box which is equipped with the filter. Control mode consists of differential pressure, time, manual and PLC control.

Self cleaning water filter

Self cleaning filter Description:
Filter housing: carbon steel, 304 stainless steel, 316L stainless steel
Filter screen: 304 stainless steel, 316 L stainless steel
Brush holder: 304 stainless steel, 316 L stainless steel
Drain valve: cast iron, stainless steel
Controller: PVC, aluminum
Seal gasket: EPDM rubber
Cleaning brush: stainless steel, nylon

The application field:
Cooling water filter; nozzle protection; sewage tertiary treatment; municipal water reuse; workshop water; pre-filtering of R.O. system; acid pickling; filtering of paper-making white water; injection molding machine; pasteurization system; vacuum pump system; air compressor system; continuous casting system; water treatment applications; refrigeration and heating water systems; groundwater; municipal water; rivers, lakes, sea water; orchard; nursery; Greenhouse; golf course; park.
