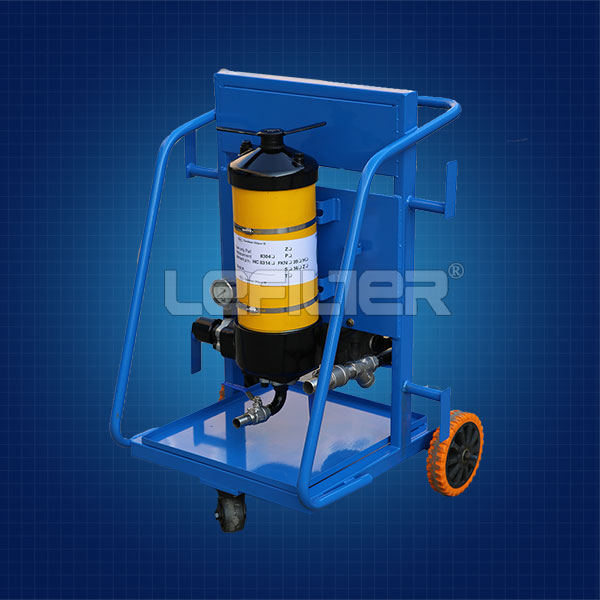

P-all Pfc High Efficient Mineral Oil Filtration Cart-Brief introduction

PAll oil filtration cart adopts new green filtration components .On many occasions it filters solid
particles in many kinds of liquid in effectively.

 Product unique characters:

1.Locking differential pressure alarm and prevent the false alarm when cold start.

 2.Filter strainer with by-pass valve to avoid system fluid off.

 3.Motor lack phase or misphase protection

 4.Acousto-optic differential pressure alarm prompt replace filter element

 5.coarse filter to protect pump in suction oil mouth.

 6.Oil outlet diffuser to prevent air from oil tank

 7.Universal wheel makes cart flexible and convenient

8.Increase the oil collecting tray and tubing fixed installation

9.Oil pump with overflow valve

Technical data of  P-all Pfc High Efficient Mineral Oil Filtration Cart

Model PFC8924
-25
PFC8314
-50
PFC8314
-100
PFC8314
-100
PFC8314
-150
PFC8300
-50-YV
PFC8300
-100-YV
PFC8314
-400
Rated pressure
(Mpa)
1.0 MPa
Motor power
(Kw)
0.75kw 1.5kw 3kw 3kw 4kw 2.2kw 4kw 15kw
Power 380V×3P/50Hz
Rated flow rate(L/min)  25 50 100 100 150 50 100 400
Filtration precision ß×=1000(×=2.5,5,7,12,22)/old standard ß×≥200(x=1,3,6,12,25um)
Working
temperature(°C)
0~80°C
Media Mineral oil,water glycol,phosphate ester flame resistant fluid


PFC 8924-25-*2  *1

Filter element model:

HC9404F *1  13  *2

*1:

Filter element
Filter material Precision(ßx≥1000)
KZ 2.5(1)
KP 5(3)
KN 7(6)
KS 12(12)
KT 22(25)

*2:

Seal
NO. Sealing material Liquid media
H NBR Petroleum base oil,oil -in- water emulsion,water glycol
Z VITON phosphate ester flame resistant fluid

Filter model:

PFC 8314-*1 *4 *2 *6

PFC 8314U-100-*4  *2  *6  *


Filter element

HC8314F-*1 *4 *2 *6


Filter Rmodel:

PFC 8300-*1  *4 *2 *6

 Filter element model:

HC8300 E-*5 *3 *4
*1

NO. Flow rate(L/min) Note
50 50
100 100
150 150 Only used for PFC8314
400 400 Only used for PFC8314


Our products through the following test:

ISO 2941 Collapse & Burst Resistant
ISO 2942 Material Compatibility with Fluids
ISO 2943 Material Compatibility with Fluids
ISO 3724 Flow Fatigue Characteristics
ISO 3968 Pressure Drop vs. Flow Rate
ISO 16889 Multi-pass Performance Testing
