PP microporous membrane folded filter various micron

Introduction: 1. Product information Employed a variety of high-quality filter material, folded filter is made by folding the imported non-woven fabric or mesh, which serves as the supporting lay...

We're here to help:
Easy ways to get the answers you need.

  • Product parameter
  • Inquiry

Product parameter:

PP microporous membrane folded filter various micron
Product Description

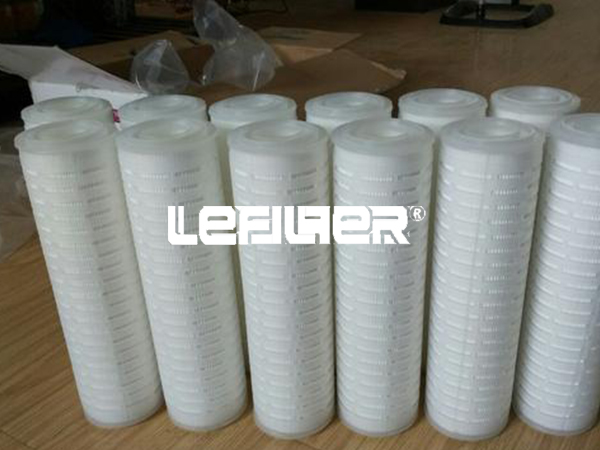

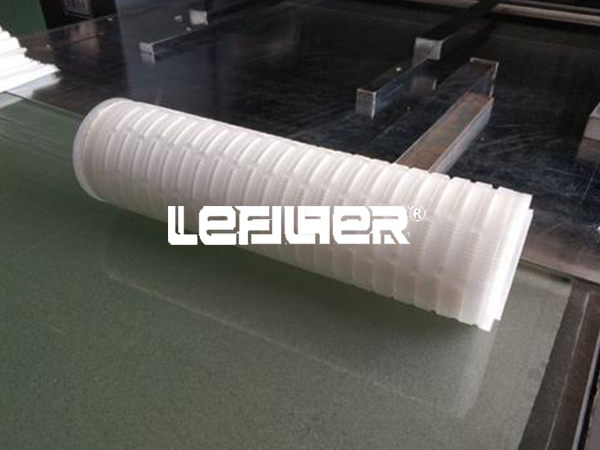

PP Microporous Membrane Pleat Water Filter is made of pleated  inner and outer support layer consisting of ultra-fine polypropylene fiber and non-woven fabrics or (wire mesh). The filter shell, the central rod and the end cap are formed with hot melt welding technology, without adhesive, the product has no leakage and secondary pollution.
Product Features
1.Folding, large membrane filtration area,
2.large dirty holding capacity
3.Low pressure drop
4.long service life
5.Overall filter made of 100% pure PP material, with a wide range of chemical compatibility
Optional for a wide filter accuracy.
Materials Of Construction Filter Media: Polypropylene Membrane
Support Layers: Polypropylene
Micron Rating: 0.1, 0.20, 0.30, 0.45, 1.0, 3.0, 5.0, 10, 20, 50, 100 um
Cage, Core, End caps: PP
Seal Method: Thermal Bonded, No Adhesives
O-rings/gaskets:  Silicone, Nitrile, EPDM, Viton, Teflon
Cartridge Dimensions Outer Diameter 69 mm
Inner Diameter 33 mm
Length 5, 10, 20, 30, 40 Inch
Filtration Area(m2) 0.65 m2 per 10''
Operating Conditions Normal Operating Temp:  Up to 60℃ (140℉)
Max.Operating Temp:  80℃ (172℉) at P≤1.0 bar (14psi)
Max. Differential Pressure
Normal Flow: 4.2 bar (60 psi) at 25℃ (77℉)
Reverse flow: 2.1 bar (30psi) at  25℃ (77℉).
PH Value compatibility: 1-13
Sterilization: Steam Sterilization for 30 minutes at 121±2 ℃, Cumulative Time:15hours;
Flush with hot water at 82℃(180℉) for 30 minutes,
at P≤1.0 bar (14psi) -- Recommended.
Typical Applications
Pharmaceutical industry: medicine liquid, cell debris, biological products filtration.
Chemical industry: Organic solvents, chemical reagents, ink, plating solution filtration.
Food industry: Drinking water, mineral water, soft drinks, beer, red wine, fruit wine filtration.
Electronics industry: pre filtration of reverse osmosis water system, deionized water system.
Air filtration: fermentation tank, vent filter of hold tank,ultrapure gas filtration.
