PP microporous membrane folded filter for water treatment

Introduction:PP microporous membrane folded filter50 micron Product Description PP Microporous Membrane Pleat Water Filter is made of pleated inner and outer support layer consisting of ultra-fine polypropylene fiber and non-woven fabrics or (wire mesh).

We're here to help:
Easy ways to get the answers you need.

  • Product parameter
  • Inquiry

Product parameter:

Product Description of micro filter cartridge:

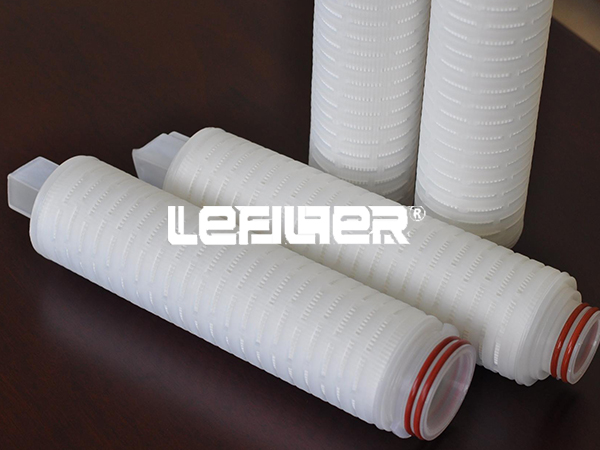

The pp folding filter element is made of ultra-fine polypropylene fiber membrane and non-woven fabric or (silk mesh) inner and outer support layers. The center rod and end cover of the filter element shell are processed by hot-melt welding technology, without any glue, and no leakage. No secondary pollution.
The pleated filter element adopts the folding type, the membrane filtration area is large, the dirt holding capacity is large, the pressure difference is low, and the service life is long. The entire filter element is 100% pure PP material and has a wide range of chemical phase capacity.



Product Features of of micro filter cartridge

1.Folding, large membrane filtration area,
2.large dirty holding capacity
3.Low pressure drop
4.long service life
5.Overall filter made of 100% pure PP material, with a wide range of chemical compatibility
Optional for a wide filter accuracy.


Materials Of Construction

Filter Media:

Polypropylene Membrane

Support Layers:

Polypropylene

Micron Rating:

0.1, 0.20, 0.30, 0.45, 1.0, 3.0, 5.0, 10, 20, 50, 100 um

Cage, Core, End caps:

PP

Seal Method:

Thermal Bonded, No Adhesives

O-rings/gaskets:

Silicone, Nitrile, EPDM, Viton, Teflon

Cartridge Dimensions

Outer Diameter

69 mm

Inner Diameter

33 mm

Length

5, 10, 20, 30, 40 Inch

Filtration Area(m2)

0.65 m2 per 10''

Operating Conditions

Normal Operating Temp:

Up to 60℃ (140℉)

Max.Operating Temp:

80℃ (172℉) at P≤1.0 bar (14psi)

Max. Differential Pressure



Normal Flow:

4.2 bar (60 psi) at 25℃ (77℉)

Reverse flow:

2.1 bar (30psi) at  25℃ (77℉).

PH Value compatibility:

1-13

Sterilization:

Steam Sterilization for 30 minutes at 121±2 ℃, Cumulative Time:15hours;

Flush with hot water at 82℃(180℉) for 30 minutes,
at P≤1.0 bar (14psi) -- Recommended.



Typical Applications of of micro filter cartridge

Pharmaceutical industry: medicine liquid, cell debris, biological products filtration.
Chemical industry: Organic solvents, chemical reagents, ink, plating solution filtration.
Food industry: Drinking water, mineral water, soft drinks, beer, red wine, fruit wine filtration.
Electronics industry: pre filtration of reverse osmosis water system, deionized water system.
Air filtration: fermentation tank, vent filter of hold tank,ultrapure gas filtration.
