P-all Hfu640uy020j High Flow Rate Water Filter element

P-all HFU640UY020J High Flow Filter product description

P-all type high flow filter element This filter element has a large diameter of 6 inches/252 mm, and does not have a central support frame, one end is open, and the filtering fluid flows from the inside to the outside. The large diameter design of the filter element and the increase of the effective filter area can greatly reduce the number of filter elements and reduce the size of the housing. In many applications, the large flow rate and long filter life can reduce investment and labor costs.

P-all HFU640UY020J High Flow Filter technical specifications:

Filter material	Folded deep polypropylene (PP), or melt blown polypropylene
Support / diversion layer	polypropylene
End cover	glass fiber reinforced polypropylene
O-ring seal material	EPDM, Buna N
Filter precision	1μm, 4.5μm, 6μm, 10μm, 20μm, 40μm, 70μm, 100μm
Length	20inch (508mm) / 40inch (1016mm) / 60inch (1524mm)
Filter element size	outer diameter: 6 inch (152mm)

P-all HFU640UY020J High Flow Filter operating conditions:

Maximum operating temperature:  folded polypropylene: 82 C; melt blown polypropylene: 65 C
Maximum pressure drop: Folded polypropylene:  3.4bar, 82 C; Melt blown polypropylene: 1.03bar, 65 C
Recommended pressure drop for filter element replacement:  2.4bar, 20 C
Recommended maximum filtered water flow:  20inch long filter element  660LPM; 40inch long filter element 1,300LPM; 60inch long filter element:  1,900LPM

Other high flow rate filter models:

HFU620UY020J  HFU640UY020J  HFU660UY020J  HFU620UY045J  HFU640UY045J
HFU660UY045J  HFU620UY100J  HFU640UY100J  HFU660UY100J  HFU620UY200J
HFU640UY200J  HFU660UY200J  HFU620UY400J  HFU640UY400J  HFU660UY400J
HFU620UY700J  HFU640UY700J  HFU660UY700J  HFU640CAS010JUW
HFU660CAS010JUW  HFU620UY020H13  HFU640UY045H13  HFU660UY400H13
HFU620GF100H13    HFU640GF200H13    HFU660GF050H13
HFU620GF100H13    HFU640GF200H13    HFU660GF100H13

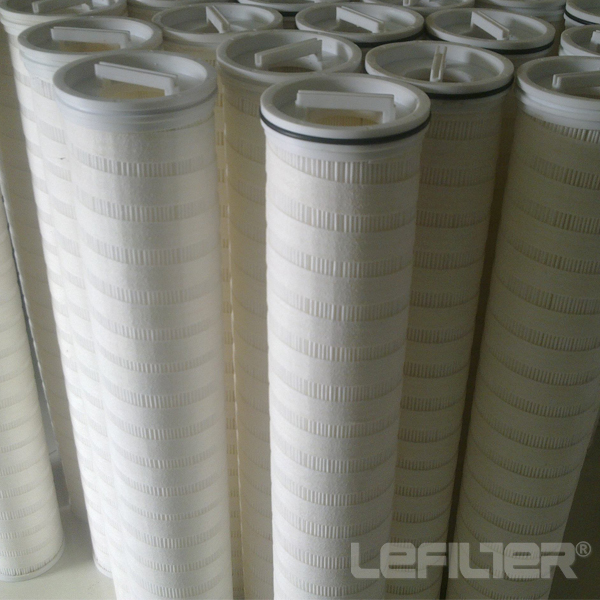

Picture of high flow rate filter:
