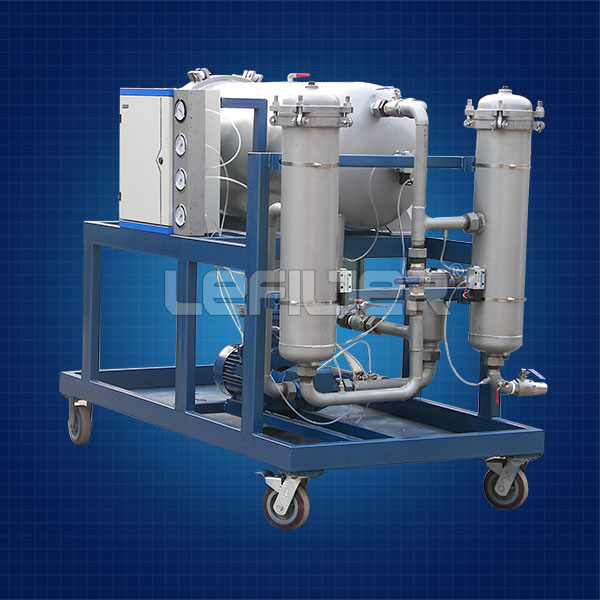

LYC-J Series Coalescence separation deoiling machine
Introduction:Application: ● Turbine oil and transformer oil purification ● The removing water and impurities of hydraulic oil lubrication system ● Access hydraulic lubrication system, comprehensively improve the cleanliness of the system The water
We're here to help:
Easy ways to get the answers you need.
Product parameter:
Application:
● Turbine oil and transformer oil purification
● The removing water and impurities of hydraulic oil lubrication system
● Access hydraulic lubrication system, comprehensively improve the cleanliness of the system
Note: * two fine filter accuracy, such as 003 to 3 microns.
** For the applicable media omitted: general hydraulic oil;
BH: water - glycol
V: phosphonate hydraulic fluid
● Turbine oil and transformer oil purification
● The removing water and impurities of hydraulic oil lubrication system
● Access hydraulic lubrication system, comprehensively improve the cleanliness of the system
| The water in hydraulic lubrication system may cause oxidation of the oil, so that oil would deteriorate, reduce the film thickness and lubricity, causing oil denatured polymerized to form macromolecules, so that the oil viscosity is changed to form an organic acid, and then etching the metal surface, reduction or loss of oil dielectric strength. For conventional filtration and separation equipment, separation from a liquid mixed with each other in a different kind of liquid is particularly difficult, the company developed the coalescence separate set of sophisticated filters and oil filter dewatering efficiency as a whole, can effectively remove oil particulate impurities and emulsified water, free water, without compromising the quality of the original product. For oil contains large amounts of water, the separation effect is particularly significant, the separation rate is the traditional separation speed several times to several times | |
| Technical principles: | |
| Different liquids have different surface tension, while the liquid flows through the orifice, the smaller the surface tension, the faster the rate adopted. When mixed with different liquid into the separator, first enter coalescing filter, coalescing filter has a multi-layer filter media, increasing its aperture layer by layer. Due to differences in surface tension, oil quickly pass filter layer, and the water was much more slowly; and because coalescence filter uses a hydrophilic material, small particles of water is adsorbed on the surface of the filter layer resulting in coalescence of water droplets. Effect by the kinetic energy, the droplets through the opening race, gradually merged into large droplets and separated from the settlement with the oil under the action of gravity. After the oil coalescence filter through, there are still smaller size droplets under the influence of inertial separation filter forward to place. Separation filter by specific hydrophobic material, by the time the oil separation filter, drops out of the filter is blocked, while the oil through the separation filter, and discharged from the outlet. | |
| Model | SLYJ-25J-*/** | SLYJ-50J -*/** | SLYJ-100J-*/** | SLYJ-200J-*/** | |
| Rated flow (L／min) | 25 | 50 | 100 | 200 | |
| Rated pressure(MPa) | 0.6 | ||||
| Pressure loss(MPa) | ≦0.1 | ||||
| First class micron(μm) | 100 | ||||
| Second class micron(μm) | 10,20,40 | ||||
| Third class micron(μm) | 3,5,10 | ||||
| Dehydration(ppm) | ≦100 | ||||
| Motor Power (kw) | 0.75 | 1.1 | 2.2 | 5.5 | |
| Weight (kg) | 220 | 280 | 360 | 480 | |
| Dimensions (mm) | 1200x600x1200 | 1600x880x1400 | 1800x1060x1500 | 2500x1200x1800 | |
Note: * two fine filter accuracy, such as 003 to 3 microns.
** For the applicable media omitted: general hydraulic oil;
BH: water - glycol
V: phosphonate hydraulic fluid
