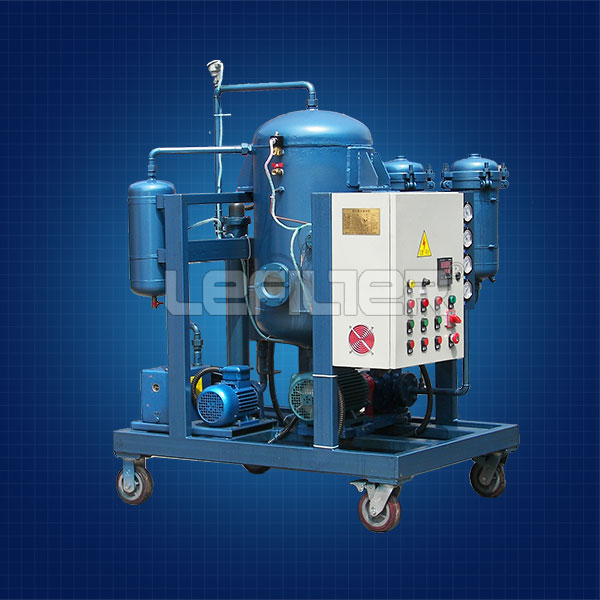

LYC-G Series High Solid Content Oil Purifier

LYC-G Series High Solid Content Oil Purifier
Applications
● The filtering of high solid content lubricants
●The clarification and filtration of large amount of lubricating
●The regeneration oil filter


Product Performance:
1. The oil filter cart is more suitable for using in the condition of oil pollution and oil higher solids content, especially adapted to the clarification and filtration of waste oil regeneration.
2. The filter is made of a special filter material, a large filter thickness thereof is 10 to 15 times the normal filtering medium, high filtration efficiency, can effectively remove suspended solids, particles and rust in the liquid. It is empty path with a gradient structure, the filter pore size outside big but inner is small, with excellent depth filtration.
3. The scientific design, compact structure, which can withstand high pressure filtration.
4. Unique deep mesh structure has a very high dirt holding capacity.
5. The filter has stable part and chemical properties, and the medium has good compatibility.
Technical parameters

Model	LYC-32G-*/**	LYC-50G -*/**	LYC-100G-*/**	LYC-150G-*/**	LYC-200G-*/**
Rated flow (L／min)	32	50	100		200
Temperature (°C)	5-80
Recommended viscosity (CSt)	10-160
Rated pressure (MPa)	0.6
Pressure loss (MPa)	≤0.1
First class micron(μm)	180、120、80
Secondary class micron(μm)	5、10、20
Third class micron(μm)	3
Voltage (V)	Three-phase AC380V   Two-phase AC220V
Motor Power (kw)	0.75	1.1	2.2	3.0	5.5
Weight (kg)	220	280	360	480	600
Dimensions mm	900x600x1080	1000x600x1080	1200x880x1520	1200x880x1520	1350x900x1870

Note: * Secondary precision filter accuracy, such as 003 means 3 um
** The applicable media: generally hydraulic oil
