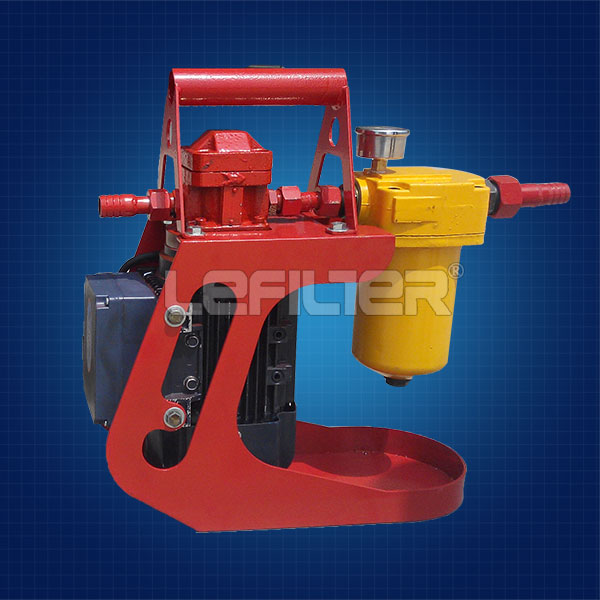

BLYJ portable oil filtration cart, 6 l/min

Introduction:Application: Hydraulic lubrication system refueling and regular maintenance Hydraulic lubrication system bypasss filtration Product Performance: 1. The oil filter cart is an ultra-portable fuel oil filter machine. 2. The machine is easily t

We're here to help:
Easy ways to get the answers you need.

  • Product parameter
  • Inquiry

Product parameter:

Application:
Hydraulic lubrication system refueling and regular maintenance
Hydraulic lubrication system bypass’s filtration
Product Performance:
1. The oil filter cart is an ultra-portable fuel oil filter machine.
 2. The machine is easily to carry, can fill oil to any hydraulic lubrication equipment in various circumstances and purify the oil.
 3. The coarse filtration of suction port can protect the pump and extend the life of the main filter.
4. The precision filter chosen by different users for different precision, and can achieve the desired results.



Technical parameters:
Model BLYJ-6-*/** BLYJ-10-*/** BLYJ-16-*/**
Rated flow( L/min) 6 10 16
Temperature(°C) 6-80
Recommended viscosity (CSt) 10-160
Rated pressure (Mpa) 0.4
The original pressure loss (Mpa) ≤0.02
First filtration precision before pump (μm) 40
Secondary filtration accuracy after pump (μm) 3,5,10,20,40
Voltage (V) Three-phase AC380V   Two-phase AC220V
Motor Power (kw) 0.18 0.25 0.35
Weight kg) 13 16 18
Dimensions(mm) 350x200x510 400x200x510 420x200x510



Xinxiang Lifeierte Filter Corp.,Ltd (Stock code:837936)is specialized in manufacture of filters ,filter equipment,and environment system . Located in Xinxiang City-the center of Filtration in China.Lefilter has superior R & D team, professional technical team,experienced overseas sales team and perfect after-sales service system.We Lefilter people will try our best to satisfy customers' requirements.The develop philosophy of LEFILTER is “To purify environment,To serve society,To manage faithfully and To oyrsye excellence”!What’s more,there're advanced production line,test machine and R & D department.They also obtained certification like ISO9001, IQNet & CQM,SGS,CNEX etc.
