In metalworking operations, maintaining clean coolants is economically critical. While filters are commonly used, various separator technologies offer efficient alternatives for liquid-solid separation. This guide examines four principal clarification methods beyond traditional filtration.
1. Terminology Framework
Clarifier: Umbrella term for any liquid-cleaning device
Filter: Uses physical barriers (media, screens) to trap contaminants
Separator: Leverages particle properties (density, magnetism) without barriers
"All filters are clarifiers, but not all clarifiers are filters – separators represent distinct solutions."
2. Gravity Separators
Principle: Exploits density differentials via settling
Equipment: Holding tanks with sludge conveyors
Applications: Primary treatment for high-specific-gravity solids
3. Centrifugal Separators
A. Rotating-Drum Centrifuges
Mechanism: 2,000-5,000 G-force separation
Configurations: Upright & inverted drum designs

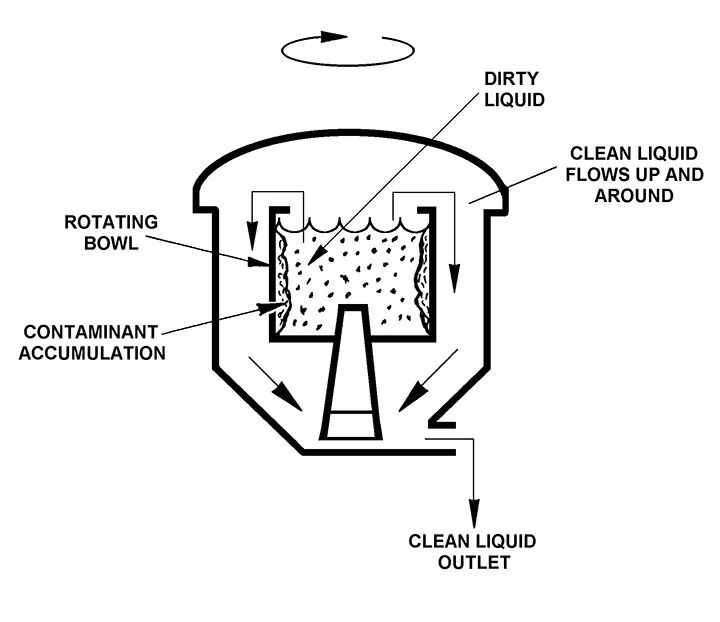

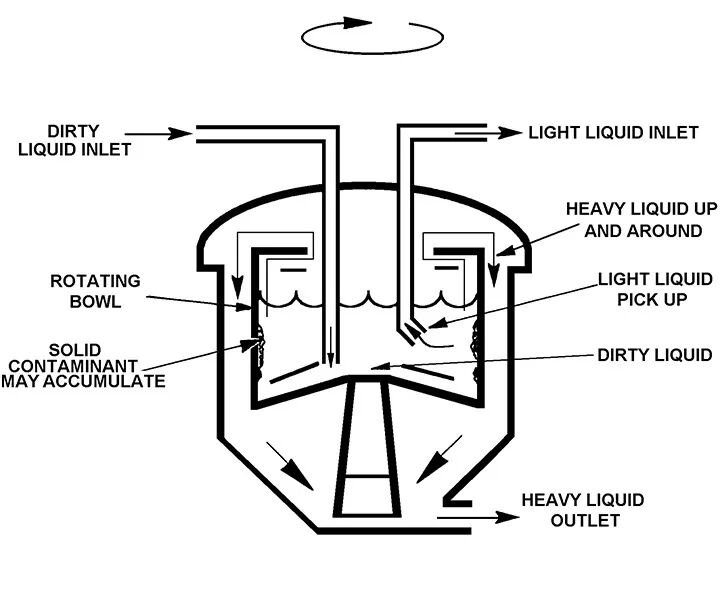

Centrifuge configurations for metal fines recovery
B. Hydrocyclones
Operation: Tangential inlet induces vortex separation
Effectiveness: Requires >3:1 solid-liquid density ratio
Hydrocyclone cross-section
4. Flotation Separators
A. Rotor-Stator Systems

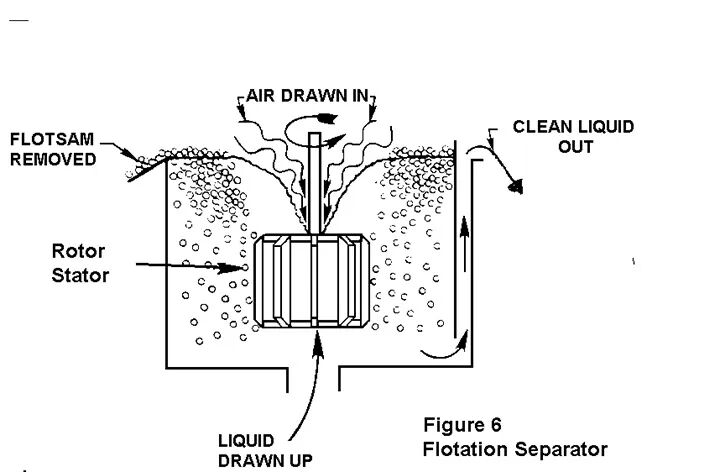

B. Dissolved Air Flotation (DAF)
5. Magnetic Separators
Type | Configuration | Applications |
|---|

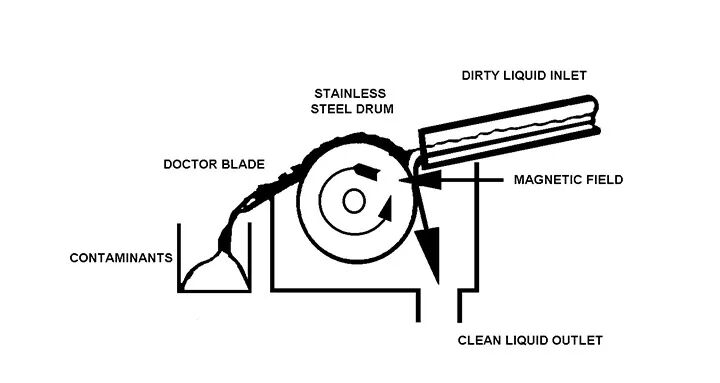

Drum/Disk | Rotating magnetic surface | General ferrous capture |
Figure 8 |
|
|

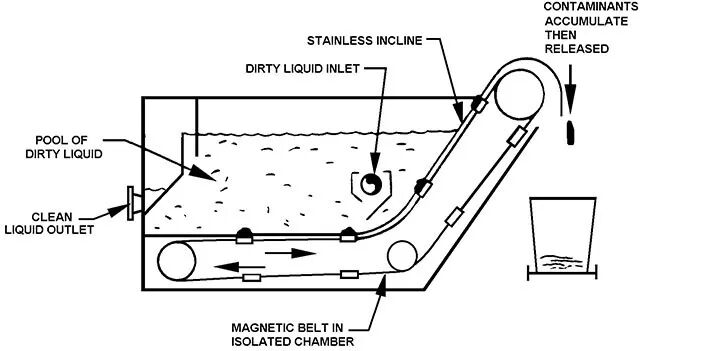

Conveyor | Magnetic belt transport | Chip handling systems |
Figure 9 |
|
|

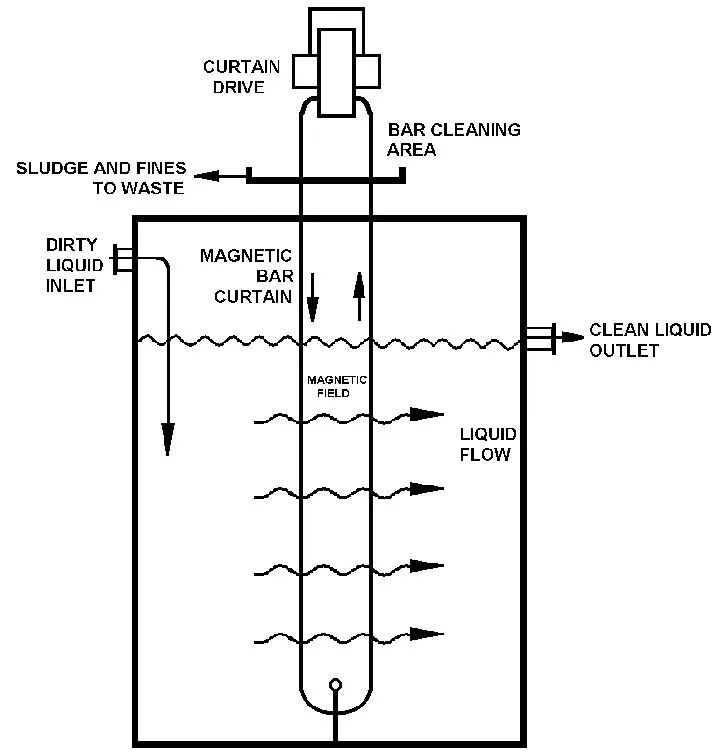

Rotating Rod | Multi-rod matrix | Steel mill scale removal |
Figure 10 |
|
|
Figure 8-10
Technology Selection Guide
Contaminant Property | Optimal Technology |
|---|
High specific gravity (>1.5) | Gravity settling |
Ferrous composition | Magnetic separation |
Fine particulates (5-50μm) | DAF systems |
Granular solids | Hydrocyclones |
Implementation Insights
Flow Dynamics: Magnetic separator efficacy depends on fluid velocity through field
Material Considerations: Hydrocyclones perform best with water-based fluids
Maintenance Factors: Centrifuges require periodic solids discharge
Hybrid Approaches: Combine separators with filters for multi-stage refinement
"Separators offer targeted solutions when space, budget, or particle properties make filtration suboptimal."
