8-ton Two-stage Demineralized Water Equipment Renovation Project

Lefilter2025-06-30 BACK TO LIST

Project Background

The original water treatment equipment faced capacity limitations and failed to meet current standards, necessitating a comprehensive renovation. As the general contractor, Lefilter orchestrated all project phases with high standards, advanced technology, premium quality, and high efficiency, delivering a state-of-the-art water treatment system with rapid construction and top-tier quality.


Raw Water Quality and Operational Requirements

  • Water Source: Tap water

  • Conductivity: ≤2μs/cm at 25℃

  • Water Production: 8 tons/hour

  • Equipment Requirement: Skid-mounted integrated design


Implementation Plan


1. Raw Water Tank → Raw Water Pump → Multi-media Filter → Activated Carbon Filter →

2. Pipeline Mixer (Reducer/Scale Inhibitor Dosing) → Stage 1 RO Security Filter →

3. Stage 1 RO High-pressure Pump → Stage 1 RO Unit → Stage 1 RO Product Tank →

4. Stage 2 RO High-pressure Pump → Stage 2 RO Unit → Water Usage Points

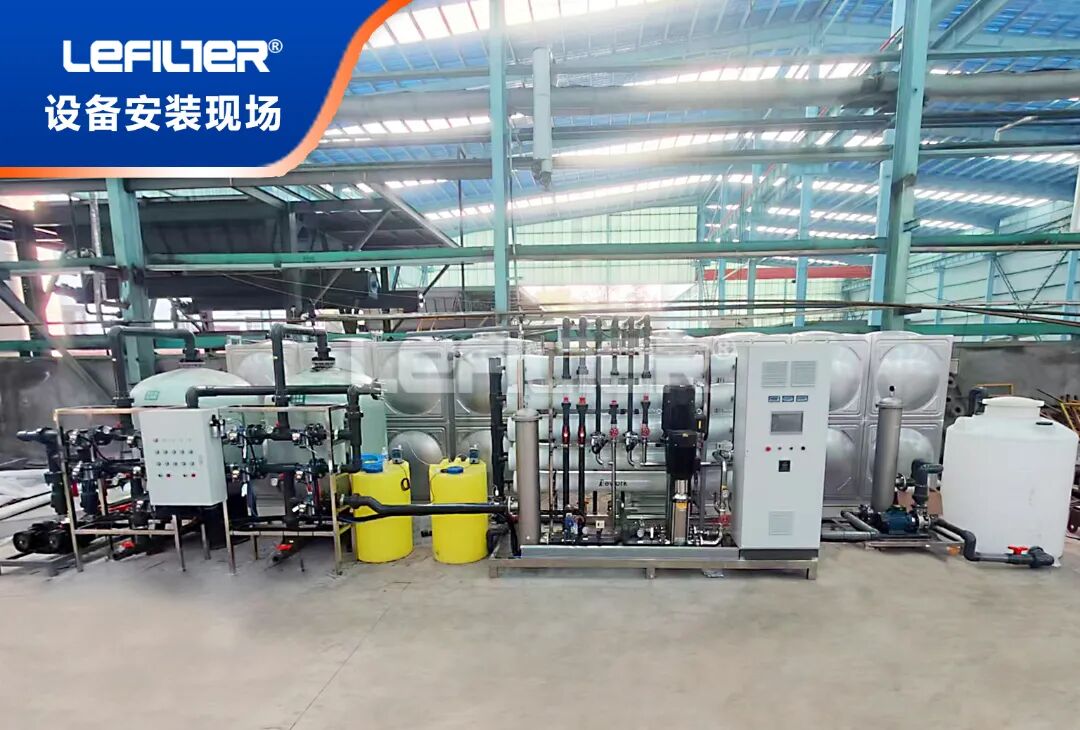

On-site Installation

b39f651ca7b897aaa90ff68785ef411413883ea754f5c99382e2233db7d65556

Main Functions of Equipment

  • Raw Water Tank: Stores source water and provides buffering.

  • Raw Water Pump: Maintains constant flow and pressure for the system.

  • Quartz Sand Filter: Removes suspended solids, particulate matter, and insoluble non-colloidal solids.

  • Activated Carbon Filter: Eliminates organic matter, color, and residual chlorine.

  • Scale Inhibitor: Increases solubility of scaling substances to prevent blockages.

  • Security Filter: The final pretreatment step for RO, featuring a leak-proof seal structure for easy disassembly, ensuring reliable "security" protection.

  • High-pressure Pump: Supplies sufficient inlet pressure for the RO membrane modules.

  • Reverse Osmosis Unit: The core of the demineralization system, removing most inorganic salts, organic matter, microorganisms, bacteria, and other impurities.

    Lefilter, as the general contractor, leveraged its technical advantages to create a high-standard water treatment system. The filtered water meets all specified indicators, earning high praise and recognition from the client. This project exemplifies Lefilter's expertise in delivering efficient water treatment solutions through innovative renovation.
