Synthetic Pocket Filters for Gas Turbine Filtration
Introduction:Features Pocket filters: Quick and easy mountingLarge filter area and high dust holding performance Application if Pocket filters: Pocket filters have been widely used in central air conditioning ventilation systems and some gas turbine air
We're here to help:
Easy ways to get the answers you need.
Product parameter:
Features Pocket filters:
-
Quick and easy mountingLarge filter area and high dust holding performance
Application if Pocket filters:
Pocket filters have been widely used in central air conditioning ventilation systems and some gas turbine air inlet systems. They are used for secondary filtration to reduce load and prolong service life of higher-efficiency air filtration systems.
Technical data:
F5~F9 EN779;
MERV9~15 ASHRAEAverage arrestance: 80%~90%(ASHRAE 52.2-1992)DIN 53438
Flammability: F1UL 900
Standard: Class 2
Max air flow rate: 125% of nominal air flow
Final pressure drop: 2-3 times initial pressure drop
Thermal Stability: 70ºCMoisture resistance: 100% RH
Sample data of pocket filter :
|
W*H*D(mm) |
Filter Class |
Pockets(pcs) |
Filter Area(m2) |
Airflow(CMH) |
Intial Pressure Drop(Pa) |
Airflow(CMH) |
Intial Pressure Drop(Pa) |
|
595*595*600 |
F5 |
8 |
6.4 |
2540 |
30 |
3800 |
45 |
|
F6 |
40 |
60 |
|||||
|
F7 |
75 |
110 |
|||||
|
F8 |
85 |
130 |
|||||
|
595*595*600 |
F5 |
6 |
4.97 |
2540 |
35 |
3800 |
50 |
|
F6 |
50 |
75 |
|||||
|
F7 |
80 |
120 |
|||||
|
F8 |
90 |
135 |
|||||
|
490*595*600 |
F5 |
5 |
4.13 |
2100 |
35 |
3140 |
50 |
|
F6 |
50 |
75 |
|||||
|
F7 |
80 |
120 |
|||||
|
F8 |
90 |
135 |
|||||
|
290*595*600 |
F5 |
3 |
2.46 |
2100 |
35 |
1860 |
50 |
|
F6 |
45 |
75 |
|||||
|
F7 |
80 |
120 |
|||||
|
F8 |
90 |
135 |

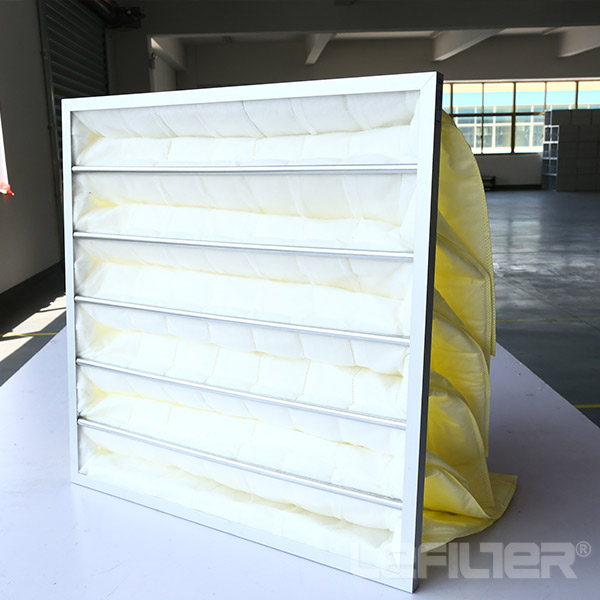

Image of pocket air filters
