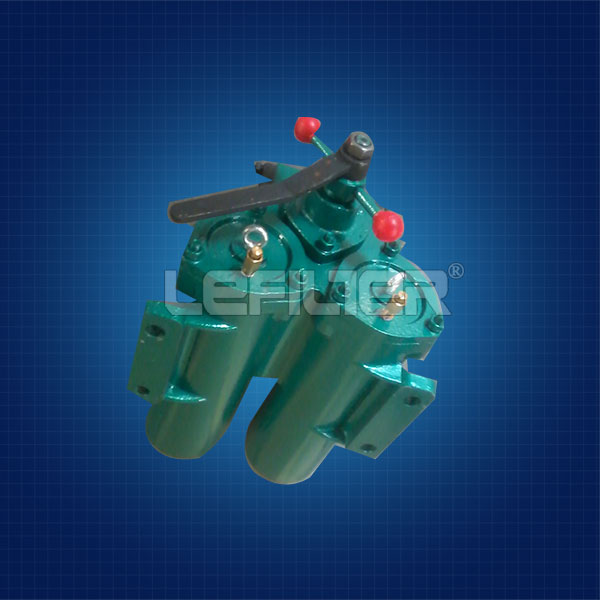

Duplex Mesh Type Oil Filter with disc filter element

Introduction:Duplex Mesh Type Oil Filter with disc filter element Applicableto oilcentralised lubrication system as a filter greatlyImprove the lubricant oil cleanliness Widely used in centralized oil lubrication system for medium/large equipment in met

We're here to help:
Easy ways to get the answers you need.

  • Product parameter
  • Inquiry

Product parameter:

Duplex Mesh Type Oil Filter with disc filter element

Applicable to oil centralised lubrication system as a filter
 greatly Improve the lubricant oil cleanliness
 Widely used in centralized oil lubrication system for medium/large equipment in metallurgy, mining, chemical, power plant, building materials, sugaring, and building industry.
Disc Filter element is made by wire mesh,High strength,make sure the filter accuracy,big oil flow capacity,easy to wash.
Duplex type make it Always keep working when oilcentralised lubrication system is working.
maximum working temperature:95°C.
Maximum working pressure:0.8MPa
Filter cleaning pressure drop:0.15MPa
Duplex Mesh Type Oil Filter with disc filter element


model

 nominal diameter

Rated flow

The filter size mm

Binocular series

Monocular series

inner diameter

Outer diameter

SPL15

-

15

2

20

40

SPL25

DPL25

25

5

30

65

SPL32

-

32

8

SPL40

DPL40

40

12

45

90

SPL50

-

50

20

60

125

SPL65

DPL65

65

30

SPL80

DPL80

80

50

70

155

SPL100

-

-

80

SPL125

-

125

120

90

175

SPL150

DPL150

150

180

SPL200

DPL200

200

320

Notes:
1,top  temperature <=95ºC;
2, max pressure <= 0.8MPa;
3, Filter cleaning pressure drop <=0.15MPa;
4,C,D and X, refer to mount type.  C-side mounting type     D-hang mounting type   X-underside mounting type
