P-all gas coalescence filter CS604LGHN gas filter

Introduction:P-all gas coalescence filter CS604LGHN gas filter Application of filter production standard ASME/ANSI BPVC VIII Design applicable pressure - Low voltage: ANSI - 150 lb. 285 psig (19.65 bar) @ 100 F (37.8? C) Medium pressure: ANSI - 300 lb.

We're here to help:
Easy ways to get the answers you need.

  • Product parameter
  • Inquiry

Product parameter:

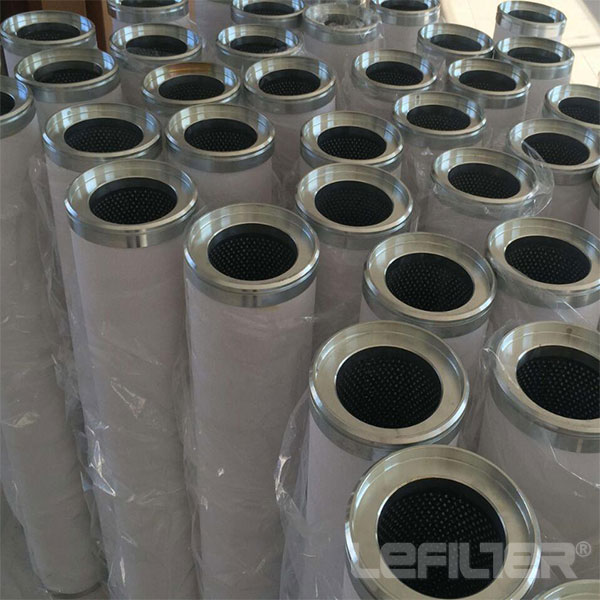

P-all gas coalescence filter CS604LGHN gas filter


Application of filter production standard ASME/ANSI BPVC VIII
Design applicable pressure -
Low voltage: ANSI - 150 lb., 285 psig (19.65 bar) @ 100 F (37.8? C)
Medium pressure: ANSI - 300 lb., 740 psig (51.02 bar) @ 100? F (37.8 C)
High pressure: ANSI - 600 lb., 1480 psig (102.04 bar) @ 100? F (37.8?C)
Maximum use temperature of CS604LGH13 coalescence filter core: 180? F (82.22 C) for gas
Liquid for 140? F (60? C)
Change the pressure difference: 15 psid.
Shape and size specification: CS604LGH13
Outer diameter: 152.4 mm (6 ")
Height: 1016 mm (40 ")
Filter area 2.6m2 (28 ft.2)
CS604LGH13 coalescence filter core technical specification:
The filtration efficiency of state particles: * 99.7% @ > 0.3 M
Liquid purification level: 0.01ppm
Material specifications:
Special treatment of glass fiber agglomeration separation material;
High pollution, high impurity retention capacity;
The properties of hydrophobic material of oil repellent guarantee the effect of water removal.

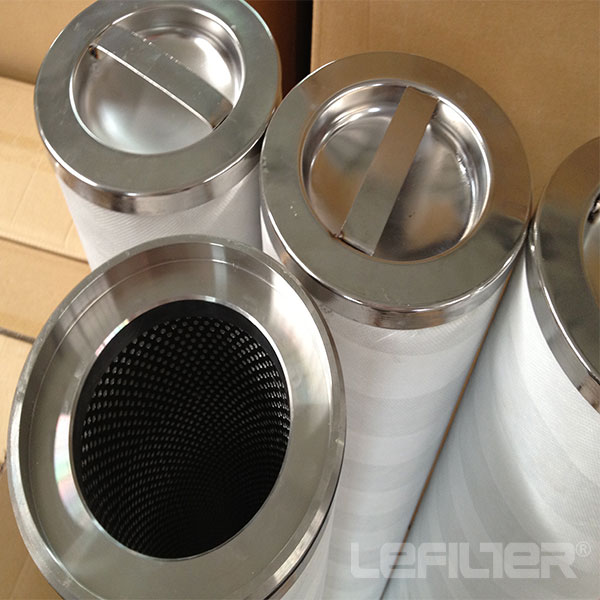

Stability of stainless steel end cover and skeleton to ensure structural stability
