DMC series bag dust dust collector

Introduction:Product Description: Dust remover is mainly composed of enclosure, the enclosure, ash hopper, into the wind tube, filter bag and flow injection device, discharge device, etc. Dust gas from dust in the wind pipe flow into each room ash hoppe

We're here to help:
Easy ways to get the answers you need.

  • Product parameter
  • Inquiry

Product parameter:

Product Description:

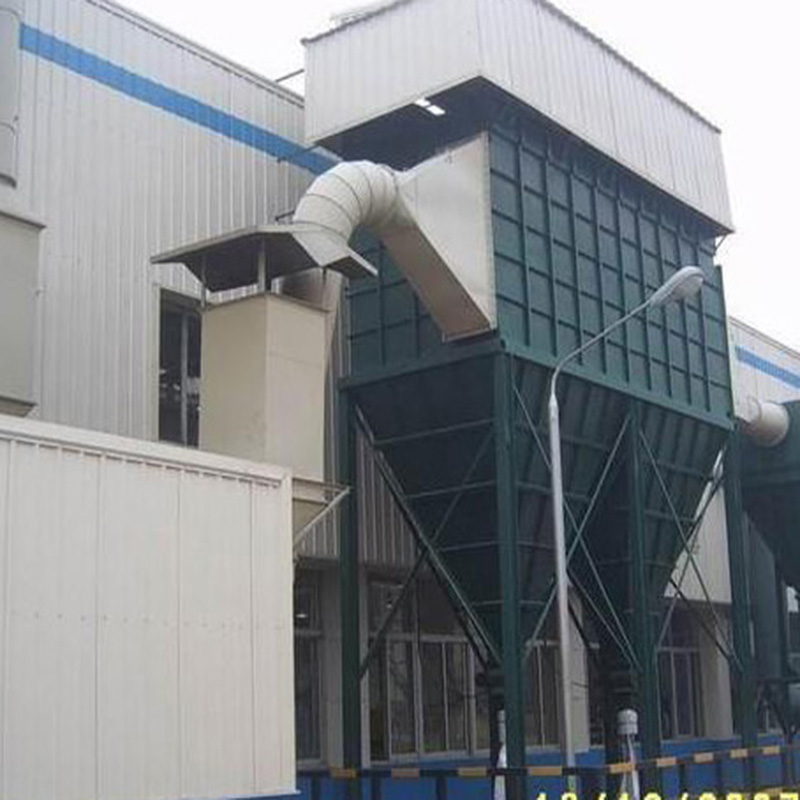

Dust remover is mainly composed of enclosure, the enclosure, ash hopper, into the wind tube, filter bag and flow injection device, discharge device, etc. Dust gas from dust in the wind pipe flow into each room ash hopper, and the ash hopper guiding device, under the guide of large particles of dust is separated, directly into the hopper, and a fine dust evenly into the middle box body and adsorption on the outer surface of the filter pocket, clean gas through the filter bag into the box body, and the offline valve and exhaust duct into the atmosphere. As the working condition of filter, filter bag dust pile up, when a device to limit the resistance value of resistance (typically set to 1500 pa), controlled by the ash removal device according to the differential pressure value or soot cleaning time automatically closed one room offline after valve, open the electric pulse valve, according to the setup program to stop the wind blowing, the use of compressed air blowing moment so that the pressure in the filter bag together, to shake off the dust on the filter bag (although can more thoroughly clear stick fine dust ash) into the hopper, discharge from row of institutions.

1) The dust removing efficiency is over 99.9% and emission concentration is less than 30mg/Nm3.

2) High density dust air below 1000mg/Nmis available.

3) Off-line pulse cleaning method which can clean ash thoroughly and the running resistance is small.

4) It has stable and reliable performance, high degree of automation and low investment.

Air Volume 1500~1,250,000m3/h
Filter area 24~17238m2
Filter bag material Depends on gas
Filter speed 0.8~1.2m/s
Air inelt concentration <200g/Nm3
Air leakage ≤3
discharge valve/screw conveyor Depends

Xinxiang Lifeierte Filter Corp.,Ltd (Stock code:837936)is specialized in manufacture of filters ,filter equipment,and environment system . Located in Xinxiang -the center of Filtration in China.Lefilter has superior R & D team, professional technical team,experienced overseas sales team and perfect after-sales service system.We Lefilter people will try our best to satisfy customers' requirements.The develop philosophy of LEFILTER is "To purify environment,To serve society,To manage faithfully and To oyrsye excellence"!What's more,there're advanced production line,test machine and R & D department.They also obtained certification like ISO9001, IQNet & CQM,SGS,CNEX etc.

FAQ

Q1: Are you manufacturer?
A: Yes, we are manufacturer , and was public listed successfully in 2016,also our factory is located in Xinxiang City, Henan Province,China. Welcome to visit us!

Q2: How is the quality of the filters?
A: 'Quality is our culture!"
As a result, all of our replacement elements are manufactured rights here in China, under the most rigorous quality standards. Additionally, all of our filter elements carry Seven ISO Standards and we fully guarantee all of our products.

Q3: How do you guarantee the after-sale service?
A: Before shipment, our products are checked one by one. If any problems caused by the product itself, we will supply you the new replaced ones.

Q4: Do you accept OEM?
A: Yes, we can manufacture according to your requirement.

Q5: Can you design filters according to the working condition?
A: Yes. We have professional R&D department , and we can design the more suitable filters for you.
