DONALDSON air cartridge with YLINDERICAL and the CONICAL

Introduction: DONALDSON air cartridge with YLINDERICAL and the CONICAL Filter Element Air Intake For Gas Turbine Hydrophobic High Efficiency Pulse Cleaning Filter Air Flow Rate: 2800-3000 M3/hr For Dual Elements Max Initial Press 200 Pa Final Recommend P

We're here to help:
Easy ways to get the answers you need.

  • Product parameter
  • Inquiry

Product parameter:

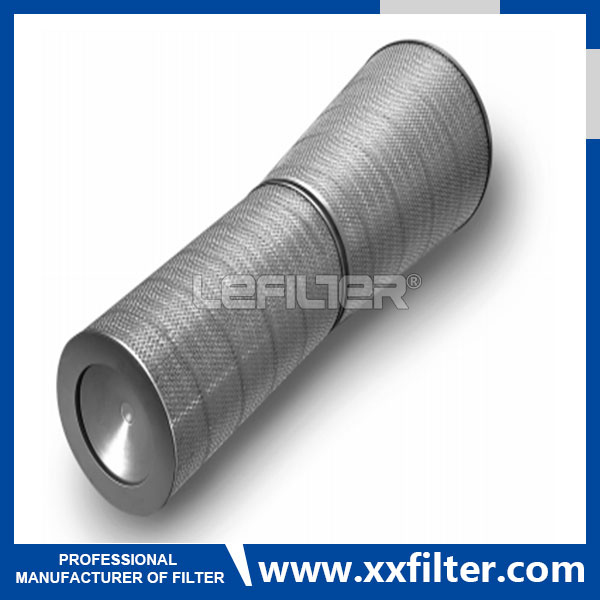

DONALDSON air  cartridge  with YLINDERICAL and the CONICAL


• Filter Element Air Intake For Gas Turbine
• Hydrophobic High Efficiency Pulse Cleaning Filter
• Air Flow Rate: 2800-3000 M3/hr For Dual Elements
• Max Initial Press 200 Pa
• Final Recommend Press: 1000 Pa
• Cleaning Cycle Start Press. At 650 Pa
• Cleaning Cycle Stop Press. At 450 Pa
• Metal Mesh: Galvanized: 0.8mm (-0,+0.1)
• Mesh Open Screen Area Acc. Donaldson Air Intake Filter
• Hot Melt: For Outside Of Element
• 2 Side Glue: Polyurethane (2 Component)
• Type Of Cap Ends Washer: Continues Washer Or Prefabricated
• Guarantees Certificate In Normal Operation: 16000 Hrs
• Filter Class F9- EN779 (2012)
• Media: Nano Fiber Type With High Dust Holding Capacity
• Note: Used For Turbine N.P MS-5002 C) &SGT 600 Siemens Turbine

Desolated Mandatory tests : under EN 779 (2012) To obtain a certificate at least in two steps
The first step: At the beginning of the contract without the expert
Second step: At the end of the contract and after completion
Attended by 2 representatives from the employer
Tests at the factory site and non-destructive

  1. Pressure drop and Fractional Efficiency tests for media

  2. Hydrofoil Testing Media

  3. Fractional and pressure drop test 3000 M3/HR




FAQ
Q1: Are you manufacturer?
A: Yes, we are manufacturer , and was public listed successfully in 2016,also our factory is located in Xinxiang City, Henan Province,China. Welcome to visit us!

Q2: How is the quality of the filters?
A: 'Quality is our culture!"
As a result, all of our replacement elements are manufactured rights here in China, under the most rigorous quality standards. Additionally, all of our filter elements carry Seven ISO Standards and we fully guarantee all of our products.

Q3: How do you guarantee the after-sale service?
A: Before shipment, our products are checked one by one. If any problems caused by the product itself, we will supply you the new replaced ones.

Q4: Do you accept OEM?
A: Yes, we can manufacture according to your requirement.

Q5: Can you design filters according to the working condition?
A: Yes. We have professional R&D department , and we can design the more suitable filters for you.




Xinxiang Lifeierte Filter Corp.,Ltd (Stock code:837936)is specialized in manufacture of filters ,filter equipment,and environment system . Located in Xinxiang City-the center of Filtration in China.Lefilter has superior R & D team, professional technical team,experienced overseas sales team and perfect after-sales service system.We Lefilter people will try our best to satisfy customers' requirements.The develop philosophy of LEFILTER is “To purify environment,To serve society,To manage faithfully and To oyrsye excellence”!What’s more,there're advanced production line,test machine and R & D department.They also obtained certification like ISO9001, IQNet & CQM,SGS,CNEX etc.
