• Atlas Copco GA 37+ parts oil/gas separator 2901077901

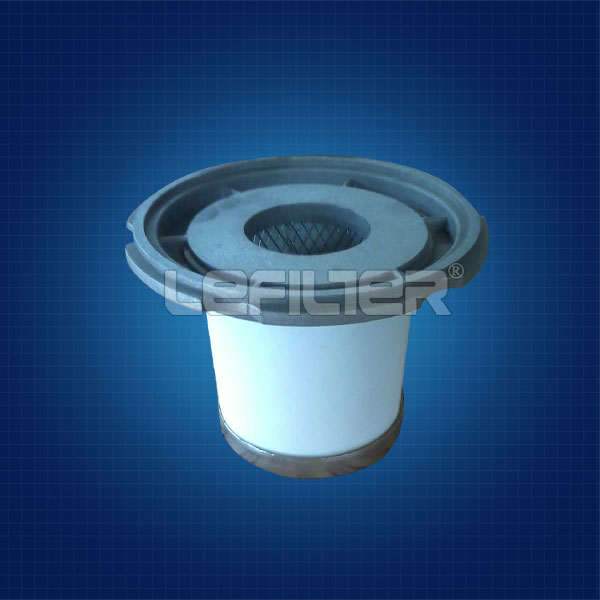

Atlas Copco GA 37+ parts oil/gas separator 2901077901

Introduction:Atlas air compressor oil separator technical description: 1.Filteringprecision:0.1 m. 2.Oilcontainedincompressedisbelow3ppM. 3.Filtrationefficiency:99.99%. 4.Servicelifeisapproximately3500h-6000h. 5.Initialpressuredifferential0.02Mpa. 6.Fil

We're here to help:
Easy ways to get the answers you need.

  • Product parameter
  • Inquiry

Product parameter:

Atlas air compressor oil separator technical description:


1.Filtering precision:0. 1 μm .

2.Oil contained in compressed is below 3ppM.

3.Filtration efficiency:99.99%.

4.Service life is approximately 3500h-6000h.

5.Initial pressure differential≤0.02Mpa.

6.Filter element of air oil separator is made by the thin fiberglass,which imported from HV&Lydall company.

Atlas Air Compressor Oil and Gas Separated filter Element

Technical Date
1. Media rating: 0.1μm
2. The oil content of compressed air is up to 3ppm.
3. Fillter efficiency:99.99%
4.Select import filter material of USA




model
Original Model
(mm)
Filter flange Diameter
(mm )
Filter Height
GA18 1612386900 220 250
GA22 1613750200(2901034300) 240 175
GA30 1622007900 203 139
GA37 1613243300 300 300
GA45 1613688000(2901021300) 299 230
1613839700(2901056600) 298 177
GA75 1613730600(2901007000) 300 350
1613800700(2901043200) 400 300
1613955900  1613984000 364 274
GA90C 1614642300(2906009800) 500 450
GA110 1614905400(2906056400) 594 280
GA132\GA160 1614905600 596 350
GA160 1614642300 500 450
GA200 1614704800(2906020200) 500 600
GA250 1614952100(2906058800) 596 545
GA30 1622007900 203 140
