Activate Carbon Water Filter Cartridge in power plant

Introduction:Large Flow Activate Carbon Water Filter Cartridge ProductIntroduction Activated carbon filteris a newdeepfilterwhich consists ofhigh-qualityactivated carbon asraw material CTOwithlowerhot-meltadhesivecomposition of itsstructurecontinuous e

We're here to help:
Easy ways to get the answers you need.

  • Product parameter
  • Inquiry

Product parameter:

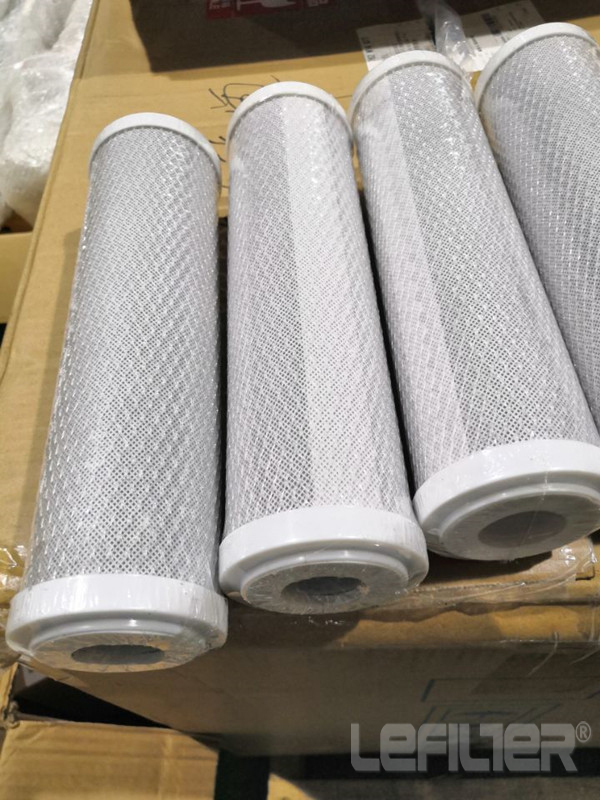

Product Introduction of Activate Carbon Water Filter Cartridge

Activated carbon filter is a new deep filter, which consists of high-quality activated carbon as raw material, CTO with lower hot-meltadhesive composition of its structure continuous extrusion molding. UDF and double filter with ABS material ultrasonic welding, T33 purecoconut shell carbon material ultrasonic welding, pressure 6kg, and single seal leak, ensure the security integrity of the filter element. Precision filter characteristics of these filters with excellent absorption properties and tubular elements, can effectively remove the liquidorganic compounds, particulates, rust, chlorine, odor and the like.
Key Features Activate Carbon Water Filter Cartridge
1.set adsorption, filtration, upload eligible, catalysis in one.
2.acid, alkali, salt and various organic flux.
3.high filtering accuracy, flow rate, pressure, high strength, pollutant carrying capacity, and no secondary pollution.
4.easy disassembly.

Technical Specifications Activate Carbon Water Filter Cartridge

The specific surface area: 800 ~ 1000m / g Iodine: 900 ~ 1000m / g
Benzene adsorption amount: 20 ~ 25m / g carbon tetrachloride adsorption rate: 50 to 60%
Methylene blue adsorption value: 13 ~ 16ml / g COD removal efficiency: 58.25%
Material: coal quality, husk, coconut
Cap: Polypropylene
Gasket: NBR, three one-propylene rubber, silicone rubber
Aperture: 5 micron can remove more than 99% 10 micron particles
Outer diameter: 65mm, 68mm, 115mm
Inner diameter: 28mm, 30mm
Grid: Polypropylene
Height: 250mm, 508mm in accordance with customer requirements for production
The maximum operating temperature: 52 ℃
Maximum working pressure: 17Bar
Maximum pressure: 7Bar

Applications Activate Carbon Water Filter Cartridge

This product can be widely used: liquid pure water, plating solutions, printed circuit boards, paints, solvents, detergents, water andmedicine, oral, pharmaceutical injections, beverages, alcohol and other industries filter, air filter, gas.
