Parker High Flow water filter cartridge RFP100-40NPX

Introduction:Description of High Flow water filter cartridge RFP100-40NPX Parker high flow filter provides a filtering scheme which can effectively replace deep and other inner diameter 2-1/2 forms in heavy- flowing situations such as anti-osmosis pre-

We're here to help:
Easy ways to get the answers you need.

  • Product parameter
  • Inquiry

Product parameter:

Description of High Flow water filter cartridge RFP100-40NPX

Parker high flow filter provides a filtering scheme which can effectively replace deep and other inner diameter 2-1/2" forms in heavy- flowing situations, such as anti-osmosis pre-filtering and similar efficiency-catering occasions. Each park series filter can process flow of 1300 liter/minute, which significantly reduces the filter quantity and size. The capacity of a park filter is equivalent to 10 filters with diameter 2-1/2", length 40". Positively charged type O sealing ring and a built-in handle make the filter installation fast, safe and convenient.



Features of High Flow water filter cartridge RFP100-40NPX

Great capacity of impurity and long life.

Less replacement saves labor cost.

Sealed interface reduces the danger of bypass flow and improve the efficiency of filtering.

Easier installment and lower labor cost

They are applied in various fields with their extensive chemical applications



Application fields

Pretreating of RO cartridge filtration, seawater desalination

Filtration of condensed water in power plants

Filtration of bulk drug, solvent, and water in bio-pharmacy industry

Filtration of bottled water, liquid glucose, edible oil, juice, softdrink and milk

Painting, petrochemical industry

Micro-electronics, film, fiber, resin



Specifications of High Flow Water Filters RFP100-40NPX



Micron 1μm,5μm,10μm,15μm,20μm,40μm,70μm,100μm

Cartridge Length: 40" (1016mm)

Cartridge Max.OD: 6.0"(152mm)

Filter Medium: Polypropylene , Cellulose , Melt Blown PP

Support: Polypropylene

End Caps: Glass Fiber Reinforced Polypropylene

O-ring Seal options: EPDM,NBR,Viton,

Polypropylene: 3.44bar@82°C,50psi@180°F

Glass Fiber: 3.44bar@121°C,50psi@180°F

Suggestion Flow: 40" 1300LPM

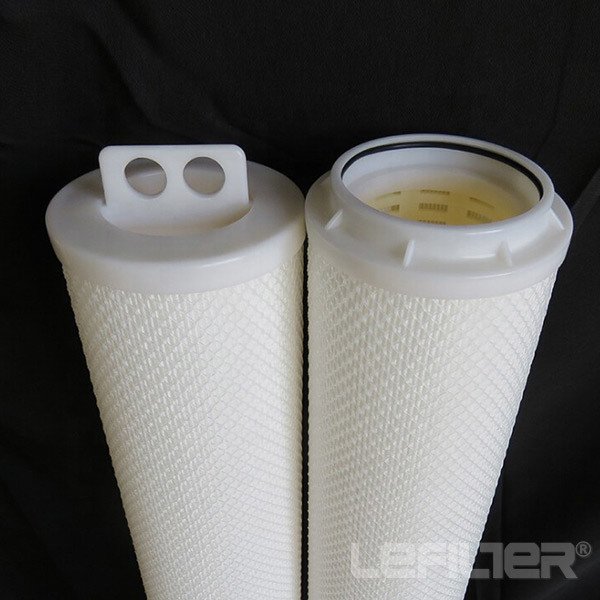

Parker High Flow Filter RFP100-40NPX

WATER FILTER CARTRIDGE
Parker High flow filters typical Part Nos.



MFNP005-40N     MFNP010-40N       MFNP050-40N     MFNP100-40N     RFP005-40NPX      RFP010-40NPX



RFP050-40NPX    RFP100-40NPX      RCP045-40EPP     RSCP045-40EPP   RSMG030-40EPP     RCP010-20EPP



RCP010-40EPP    RCP010-60SPP       RCP030-40EPP     RCP045-20EPP    RCP030-60EPP       RCP045-40EPP



RCP045-60EPP    RCP045-60NPP       RCP100-20EPP     RCP100-40EPP    RCP100-60EPP       RCP200-20EPP



RCP200-40EPP    RCP200-60SPP       RCP400-20EPP     RCP400-40EPP    RCP400-60SPP       RCP900-40EPP



RCP900-60EPP    RSCP010-20EPP      RSCP010-40EPP     RSCP010-60SPP   RSCP030-40EPP      RSCP045-20EPP



RSCP030-60EPP   RSCP045-40EPP     RSCP045-60EPP     RSCP045-60NPP   RSCP100-20EPP     RSCP100-40EPP



RSCP100-60EPP   RSCP200-20EPP     RSCP200-40EPP     RSCP200-60SPP    RSCP400-20EPP     RSCP400-40EPP



RSCP400-60SPP    RSCP900-40EPP     RSCP900-60EPP     RMG010-20EPP    RMG010-40EPP      RMG010-60SPP



RMG030-40EPP    RMG045-20EPP     RMG030-60EPP     RMG045-40EPP    RMG045-60EPP     RMG045-60NPP



RMG100-20EPP
