P-all HFU660UY060H1 large flow water filter for Water Service

Introduction:P-allHFU660UY060H1High Flow Rate Water Filter cartridge profile: The high-flow filter element is made of continuous high-performance fiber filter material and wound with special special equipment. The length of the filter element is as high

We're here to help:
Easy ways to get the answers you need.

  • Product parameter
  • Inquiry

Product parameter:

P-all HFU660UY060H1 High Flow Rate Water Filter cartridge profile:

The high-flow filter element is made of continuous high-performance fiber filter material and wound with special special equipment. The length of the filter element is as high as 70" (1778mm), which prevents fiber deformation and fiber shedding, and can be installed in existing equipment. The high-performance fiber filter fluid avoids the precipitation of impurities and pre-washing when starting up. Ultra-long filter element 70" (1778mm) ) It is suitable for applications with high flow rate and high pollution capacity. It has high mechanical strength and will not be deformed even under severe process conditions. It can be directly installed in the existing shell without replacement or modification.

P-all HFU660UY060H1 High Flow Rate Water Filter cartridge features:

(1) Large flow rate of single filter element
(2) Low installation cost and low operating cost
(3) The replacement quantity of filter element is small
(4) 1 micron absolute filtration accuracy
(5) High-quality special FDA filter material
(6) The filtering method of in and out, all impurities are intercepted inside the filter element
(7) No metal framework, minimizing the loss caused by discarding
(8) U-shaped sealing groove ensures high filtration efficiency
04

P-all HFU660UY060H1 High Flow Rate Water Filte cartridge parameter:

Initial pressure difference

0.02MPa

Replacement pressure drop

2.4Bar

Maximum allowable pressure drop

3.4Bar

Maximum operating temperatur

80℃

Filtration direction

From inside to outside, without internal skeleton

Accuracy level

1.5μm, 3μm, 4.5μm, 10μm, 20μm, 30μm, 70μm

Filter material

polypropylene glass fibe

Sealing materials

ethylene propylene rubber, rubber, fluorine rubber, neoprene

Outer diamete

6 inches (152.5mm)

Length

20 inches (508mm), 40 inches (1016mm), 60 inches (1524mm)

 P-all large flow rate water filter cartridge Application field:

1. Food industry: filtration of alcohol, beverages and drinking water.
2. Electronic industry: pre-filtration of pure water and ultra-pure water.
3. Petroleum and chemical industry: filtration of various organic solvents, acids, lye, oilfield water injection filtration.
4. Ultrafiltration equipment RO security filtration seawater desalination pretreatment
5. Power plant condensate filtration
6. Water filtration in the biopharmaceutical industry
7. Paint, coating, petrochemical industry
8. Microelectronics film fiber resin
03

Company products comply with test standards:

Filter element-rupture resistance verification according to ISO 2941
Filter element-structural integrity according to ISO 2942
Filter element-material and liquid communication compatibility verification according to ISO 2943
Filter element-end load test method according to ISO3723
Filter element-the determination of the fatigue characteristics of the filter element is in accordance with ISO3724
Filter element-Measurement of differential pressure and flow characteristics according to ISO3968

Other high flow filter models:

3M

HF40PP001A01,HF40PP001B01, HF40PP001C01, HF40PP001D01
HF40PP002A01,HF40PP002B01, HF40PP002C01,HF40PP002D01,
HF40PP005A01,HF40PP005B01,HF40PP005C01, HF40PP005D01,
HF40PP010A01,HF40PP010B01,HF40PP010C01, HF40PP010D01,
HF40PP015A01,HF40PP015B01,HF40PP015C01, HF40PP015D01,
HF40PP025A01,HF40PP025B01,HF40PP025C01, HF40PP025D01,
HF40PP040A01,HF40PP040B01,HF40PP040C01, HF40PP040D01,
HF40PP070A01,HF40PP070B01,HF40PP070C01, HF40PP070D01,
HF60PP001A01,HF60PP001B01, HF60PP001C01,HF60PP001D01,
HF60PP002A01,HF60PP002B01,HF60PP002C01, HF60PP002D01,
HF60PP005A01,HF60PP005B01,HF60PP005C01, HF60PP005D01,
HF60PP010A01,HF60PP010B01,HF60PP010C01, HF60PP010D01,
 HF60PP015A01,HF60PP015C01,HF60PP025A01,HF60PP025C01 HF6099025D01,HF60PP040A01,HF60PP040B01HF60PP040C01
HF60PP040D01 ,HF60PP070A01 ,HF60PP070B01 ,HF60PP070C01
 HF60PP070D01  XLDM4.5-40U-HFJ
XLDM1.5-20U-HFJ XLDM3-20U-HFJ XLDM4.5-20U-HFJ
XLDM10-20U-HFJ XLDM20-20U-HFJ XLDM30-20U-HFJ
XLDM70-20U-HFJ XLDM1.5-40U-HFJ XLDM3-40U-HFJ
XLDM4.5-40U-HFJ XLDM10-40U-HFJ XLDM20-40U-HFJ
XLDM30-40U-HFJ XLDM70-40U-HFJ XLDM1.5-60U-HFJ
XLDM3-60U-HFJ XLDM4.5-60U-HFJ XLDM10-60U-HFJ
XLDM20-60U-HFJ XLDM30-60U-HFJ XLDM70-60U-HFJ


P-all

HFU620UY020J, HFU640UY020J ,HFU660UY020J ,HFU620UY045J
HFU640UY045J ,HFU660UY045J, HFU620UY100J ,HFU640UY100J
HFU660UY100J ,HFU620UY200J ,HFU640UY200J, HFU660UY200J
HFU620UY400J, HFU640UY400J ,HFU660UY400J ,HFU620UY700J
HFU640UY700J,HFU660UY700J,HFU620CAS010JUW,HFU640CAS010JUW
HFU660CAS010JUW,HFU620UY020H13,HFU640UY045H13,HFU660UY400H13
HFU620GF100H13, HFU640GF200H13, HFU660GF050H13, HFU620UY020J
HFU640UY020J, HFU660UY020J ,HFU620UY045J ,HFU640UY045J
HFU660UY045J, HFU620GF100H13, HFU640GF200H13 ,HFU660GF100H13
HFU620UY200J,HFU640UY200J,HFU660UY200J,HFU620UY400J,HFU640UY400J
HFU660UY400J HFU620UY700J HFU640UY700J HFU660UY700J


PARKER

MFNP010-40N,MFNP030-40N,MFNP045-40N,MFNP060-40N,MFNP100-40N
MFNP010-60N,MFNP030-60N,MFNP045-60N,MFNP060-60N,MFNP100-60N
RSCP010-20EPP RSCP030-20EPP RSCP045-20EPP RSCP100-20EPP RSCP200-20EPP RSCP400-20EPP RSCP900-20EPP RSCP010-40EPP RSCP030-40EPP RSCP045-40EPP RSCP100-40EPP RSCP200-40EPP RSCP400-40EPP RSCP900-40EPP RSCP010-60EPP RSCP030-60EPP RSCP045-60EPP RSCP100-60EPP RSCP200-60EPP RSCP400-60EPP RSCP900-60EPP RSCP010-20SPP RSCP030-20SPP RSCP045-20SPP RSCP100-20SPP RSCP200-20SPP RSCP400-20SPP RSCP900-20SPP RSCP010-40SPP RSCP030-40SPP RSCP045-40SPP RSCP100-40SPP RSCP200-40SPP RSCP400-40SPP RSCP900-40SPP RSCP010-60SPP RSCP030-60SPP RSCP045-60SPP RSCP100-60SPP RSCP200-60SPP RSCP400-60SPP RSCP900-60SPP RSMG010-20EPP RSMG030-20EPP RSMG045-20EPP RSMG100-20EPP RSMG200-20EPP RSMG400-20EPP RSMG010-40EPP RSMG030-40EPP RSMG045-40EPP RSMG100-40EPP RSMG200-40EPP RSMG400-40EPP RSMG010-60EPP RSMG030-60EPP RSMG045-60EPP RSMG100-60EPP RSMG200-60EPP RSMG400-60EPP RSMG010-20SPP RSMG030-20SPP RSMG045-20SPP RSMG100-20SPP RSMG200-20SPP RSMG400-20SPP RSMG010-40SPP RSMG030-40SPP RSMG045-40SPP RSMG100-40SPP RSMG200-40SPP RSMG400-40SPP RSMG010-60SPP RSMG030-60SPP RSMG045-60SPP RSMG100-60SPP RSMG200-60SPP RSMG400-60SPP

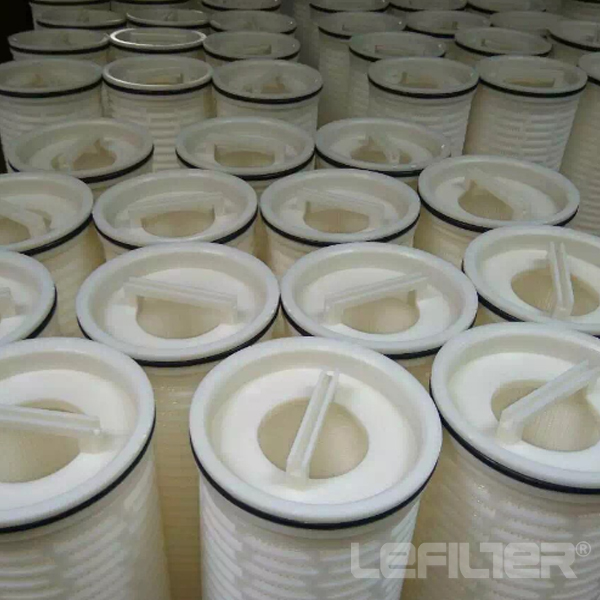

 Photo of high flow rate water filter:
